0020308120_02 Air/flue pipe installation manual 19

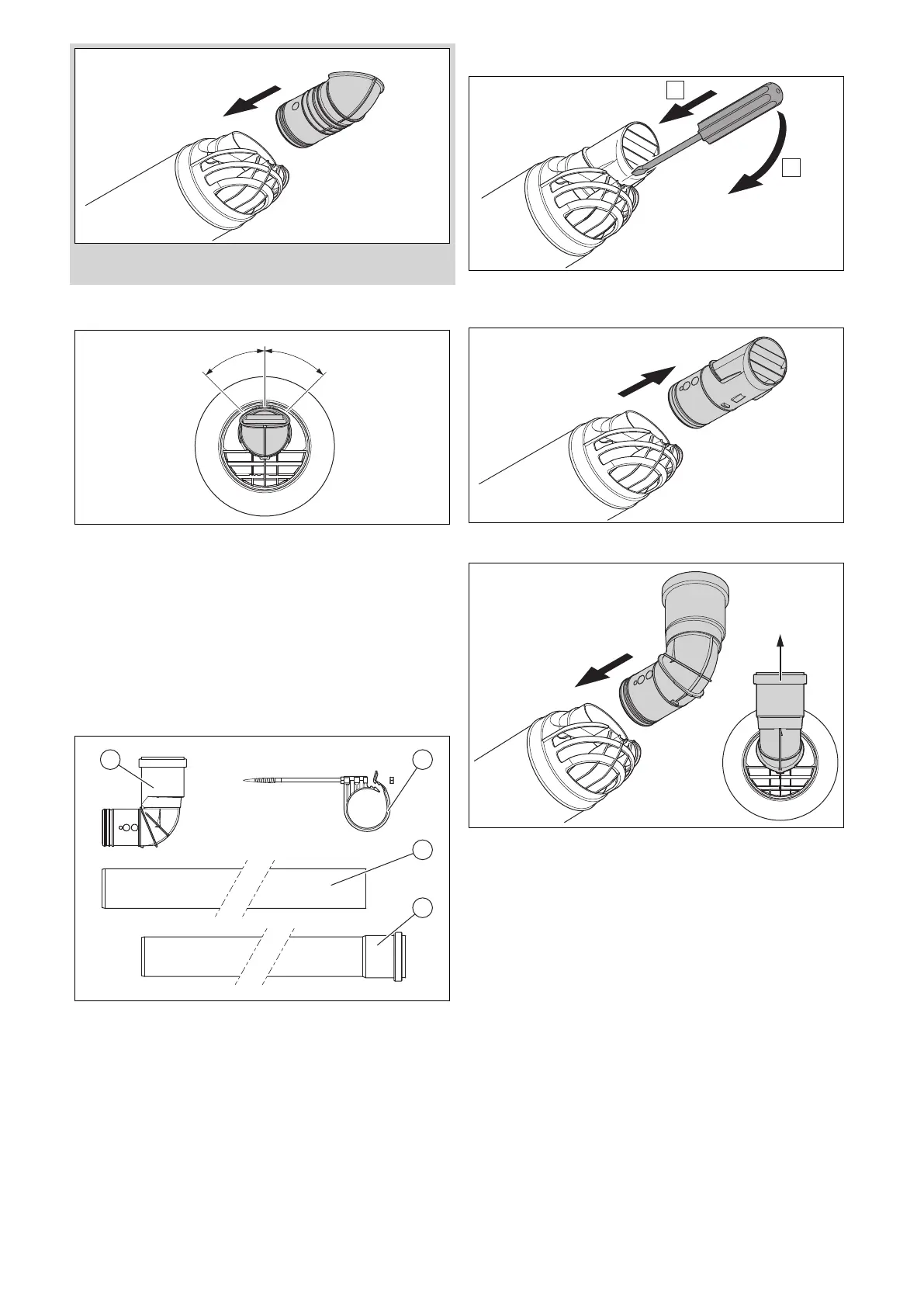

▶ Slide the deflector onto the opening piece until you hear
the deflector click into place.
5.6.3.3 Adjusting the deflector
▶ Set the terminal to the required position.
– The flue gas stream is directed upwards at an angle
of approx. 45° when the deflector is set in the centre
position.
– If necessary, the deflector terminal can be rotated 45°
anti-clockwise or clockwise. These setting options
mean that the flue system can be further optimised.
5.6.4 Installing the variable terminal set (VTK)
5.6.4.1 Scope of delivery
1 87° elbow (2 x)
2 Pipe clamps (3 x)
3 Extension (1 m) without
sleeve
4 Extension (1 m) with
sleeve
– Variable terminal set, black, article number 0020219529
– Variable terminal set, white, article number 0020219530
5.6.4.2 Installing the variable terminal set (VTK)
1. Release the catch between the opening piece and the
end pipe.
2. Pull the end pipe from the opening piece.
3. Slide the first 87° elbow onto the opening piece until
you hear the 87° elbow click into place.
5.6.4.3 Installing extensions
1. Install the flue system from the 87° elbow to the flue
outlet.
– Begin with the extension with the sleeve. To be
able to install the second 87° elbow with the end
pipe, you must install the extension without a
sleeve last.
– Allow expansion space of 1 cm in each sleeve.
– Ensure that all pipe joints are absolutely leak-tight.
