Vaillant ecoTEC plus 615 Installation And Maintenance Instructions

20 Installation and maintenance instructions 0020308118_05
Quantity Designation
2 Heating flow and return connection pipe,
20 mm diameter
2 Service valve
2 Bag with small parts
1 Condensate discharge hose
1 Mounting template
1 Enclosed documentation
Validity: Product with integrated hot water generation
Quantity Designation
1
Condensing boiler
1 Bag with unit mounting bracket and fixing
material
1
Bag with drain pipe and screwed connection
for the expansion relief valve
1 Gas isolation valve
1 Gas connection pipe, 15 mm diameter
1 Domestic hot water connection pipe
1 Cold water connection pipe, 15 mm diameter
3 Service valve
2 Heating flow and return connection pipe,
20 mm diameter
2 Bag with small parts
1 Condensate discharge hose
1 Manual filling device with Double Check
Valve
1 Mounting template
1 Enclosed documentation

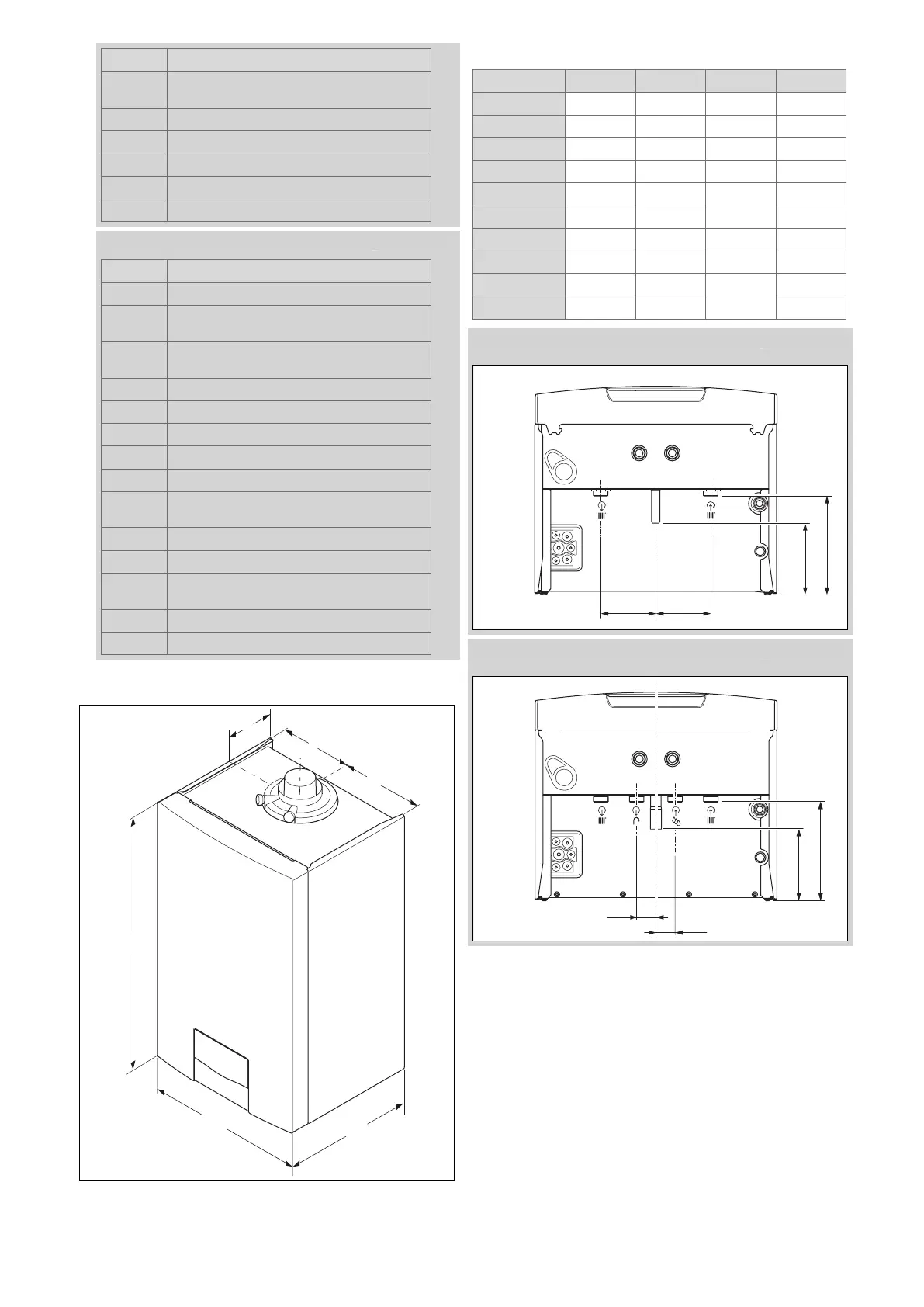

6.2 Product dimensions
=
=
A
C
B
D
Dimensions
A B C D
VU 10
125 mm 352 mm 440 mm 720 mm
VU 15
125 mm 352 mm 440 mm 720 mm
VU 20
125 mm 352 mm 440 mm 720 mm
VU 25
125 mm 352 mm 440 mm 720 mm
VU 30
125 mm 352 mm 440 mm 720 mm
VU 35
125 mm 386 mm 440 mm 720 mm
VUW 20/26
125 mm 352 mm 440 mm 720 mm
VUW 25/32
125 mm 352 mm 440 mm 720 mm
VUW 30/36
125 mm 352 mm 440 mm 720 mm
VUW 30/40
125 mm 386 mm 440 mm 720 mm
Validity: Product without integrated hot water generation
180
130
100
100
Validity: Product with integrated hot water generation
35
35
180
130
180
130
6.3 Installation site
This boiler is not suitable for outdoor installation. This boiler
may be installed in any room. However if the boiler is being
installed in a room containing a bath or shower it must only
be installed in zones 2 or 3. In GB this is the current I.E.E.
WIRING REGULATIONS and BUILDING REGULATIONS. In
IE reference should be made to the current edition of I.S.813
“Domestic Gas Installations” and the current ETCI rules.
If the boiler is to be installed in a timber frame building it
should be fitted in accordance with the current version of the
Institute of Gas Engineers document IGE/UP/7. If in doubt
seek advice from local building control.

Vaillant ecoTEC plus 615 Specifications

General

Model	ecoTEC plus 615
Category	Boiler
Output	15 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Fuel Type	Natural Gas
Mounting	Wall-mounted
Max. Working Pressure	3 bar
NOx Emissions Class	5
Flue Options	Horizontal and Vertical
Heating Flow Temperature Range	30°C to 80°C
Efficiency	94% ErP
