Vaillant ecoTEC plus 615 Installation And Maintenance Instructions

30 Installation and maintenance instructions 0020308118_05

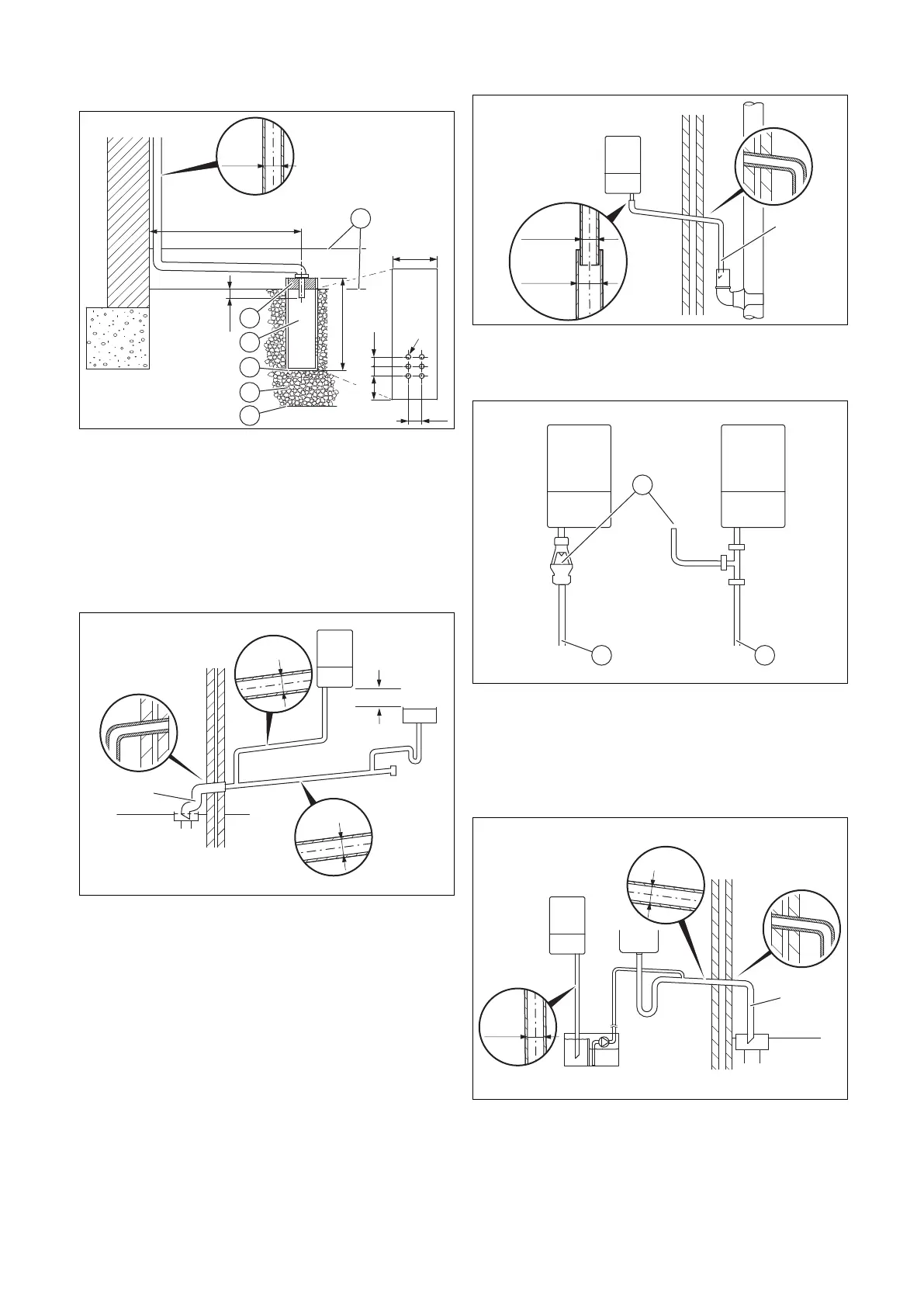

Preferred option for external termination
7.8.1.5 External termination into soakaway
≥ 500 mm
100 mm
< 300 mm
50 25 25
< 25
25
Ø12
Ø32mm
≤ 3 m
1
2
3
4
5
6
1 Ground (either/or)
2 Seal
3 Plastic tube,
100 mm diameter
4 Bottom of sealed tube
5 Limestone chippings
6 Hole depth 400 mm
minimum
Least preferred option, must not terminate in rain water drain
7.8.1.6 Internal termination downstream of sink
waste
100mm
Ø32mm
Ø22mm
≤ 3 m
Open end of pipe direct into gulley below ground level but
above water level
Susceptible to siphonage, must terminate in a gulley
7.8.1.7 External termination into rain water down
pipe
≤ 3 m
Ø22mm
Ø 32mm
NB only combined foul/rainwater drain
7.8.1.8 Additional methods of introducing air breaks
1
2 3
1 Air break
2 Using a tundish
3 Using a pipe
7.8.1.9 Connection of condensate pump
Ø32mm
Ø22mm
≤ 3 m
Preferred option for external connection

Vaillant ecoTEC plus 615 Specifications

General

Model	ecoTEC plus 615
Category	Boiler
Output	15 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Fuel Type	Natural Gas
Mounting	Wall-mounted
Max. Working Pressure	3 bar
NOx Emissions Class	5
Flue Options	Horizontal and Vertical
Heating Flow Temperature Range	30°C to 80°C
Efficiency	94% ErP
