6 Set-up
6.1 Checking the scope of delivery
▶ Check that the scope of delivery is complete and intact.
6.1.1 Scope of delivery
Validity: Product with heating mode only
Num-
ber
Designation
1
Heat generator
1 Installation set containing the following:
1
- Unit mounting bracket
1
- Expansion relief valve connection pipe
1
- Gas connection pipe
2 - Heating flow/return connection pipe
3 - Service valve
3
- Bag with small parts
1 Lower cover
1
Mounting template
1 Enclosed documentation
6.1.2 Scope of delivery
Validity: Product with integrated hot water generation
Num-
ber
Designation
1
Heat generator
1 Installation set containing the following:
1
- Unit mounting bracket
1
- Expansion relief valve connection pipe
1
- Gas connection pipe
2 - Heating flow/return connection pipe
2 - Cold water, domestic hot water connection pipe
4 - Service valve
3
- Bag with small parts
1
- Double Check Valve
1 Lower cover
1
Mounting template
1 Enclosed documentation

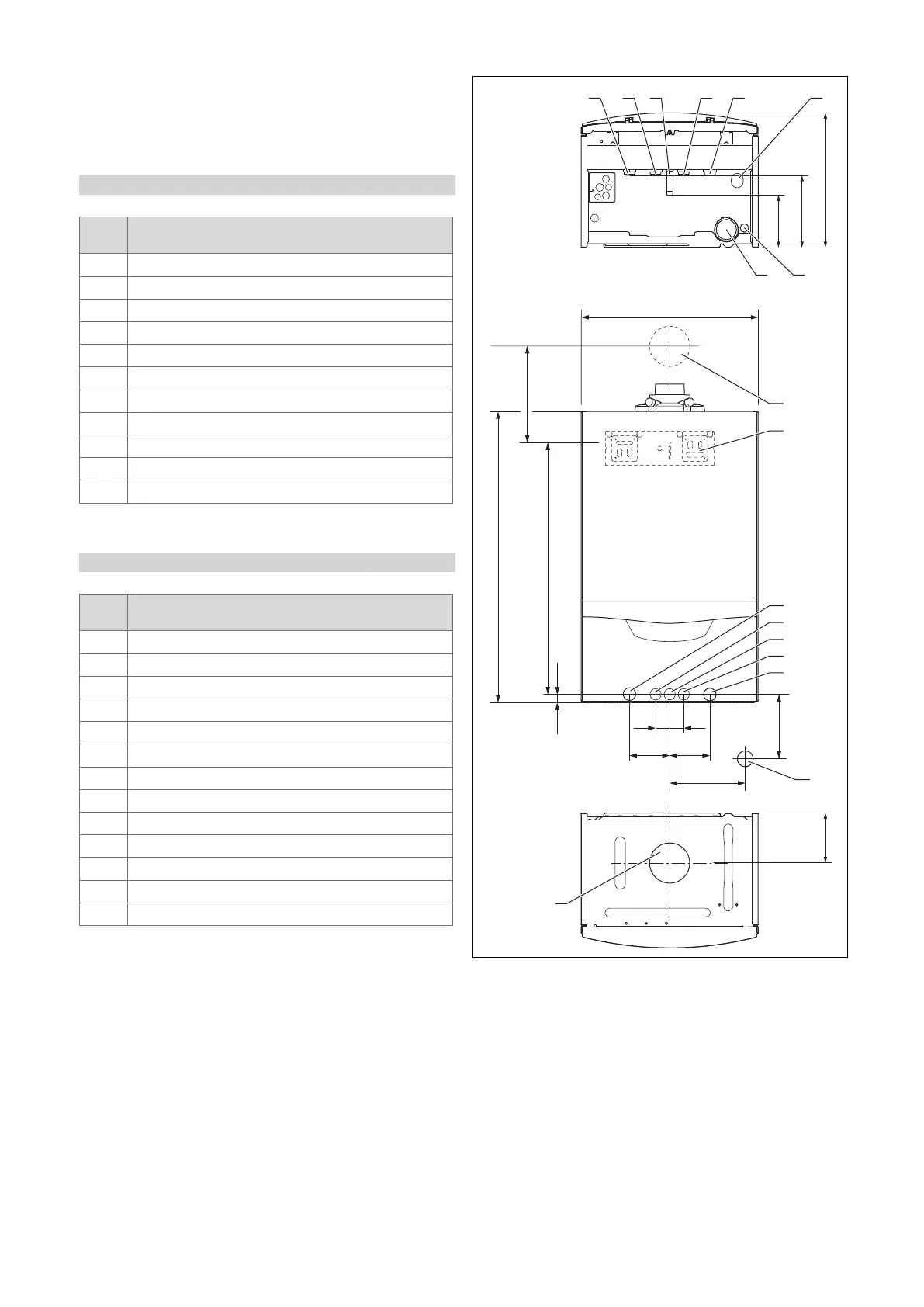

6.2 Dimensions
720
20
624
160
125
188
100 100
3535
440
A
B
180
125
2
1
3
5
7
9
8
4*
6*
6*
4*
7
11 10
3
5
12
1 Air/flue pipe wall duct
2 Unit mounting bracket
3 Heating flow (22 × 1.5
diameter)
4 Domestic hot water
connection (15 × 1.5
diameter)
5 Gas connection
(15 × 1.5 diameter)
6 Cold water connection
(15 × 1.5 diameter)
7 Heating return (22 × 1.5
diameter)
8 R1 tundish/condensate
trap connection
9 Air/flue pipe connection
10 Condensate discharge
connection, 19 mm
diameter
11 Condensate trap
12 Drain pipework connec-
tion, expansion relief
valve, heating, 15 mm
diameter
* Only products with
integrated domestic
hot water generation
** Only products with
heating mode only
