Vaillant VPS R 100/1 M Installation And Maintenance Instructions

Installation 4
0020244064_00 Installation and maintenance instructions 65
4.1 Unpacking
1. Remove the product from the packaging.
2. Remove the protective film from all of the product's
components.
4.2 Checking the scope of delivery
▶ Check the contents of the package.
Applicability: VPS R 100/1 M
Quantity Description
1 Buffer cylinder
1 Bag with three feet, three washers and six
nuts
2 Wall-fixing strip
4 Pin for securing the wall-fixing strip to the
cylinder
1 Lower cover, which must be attached when
securing the cylinder to the wall
3 Pin for securing the cover, washer and cover
for the pin
1 Cylinder dry pocket
1 Stuffing box
6 G1"1/2 plug + seal
1 Documentation records
Applicability: VPS R 200/1 B
Number Description
1 Buffer cylinder
1 Bag with three feet, three washers and six
nuts
2 Cylinder dry pocket
2 Stuffing box
6 G1"1/2 plug + seal
1 G3/4 plug for draining the cylinder
1 Enclosed documentation

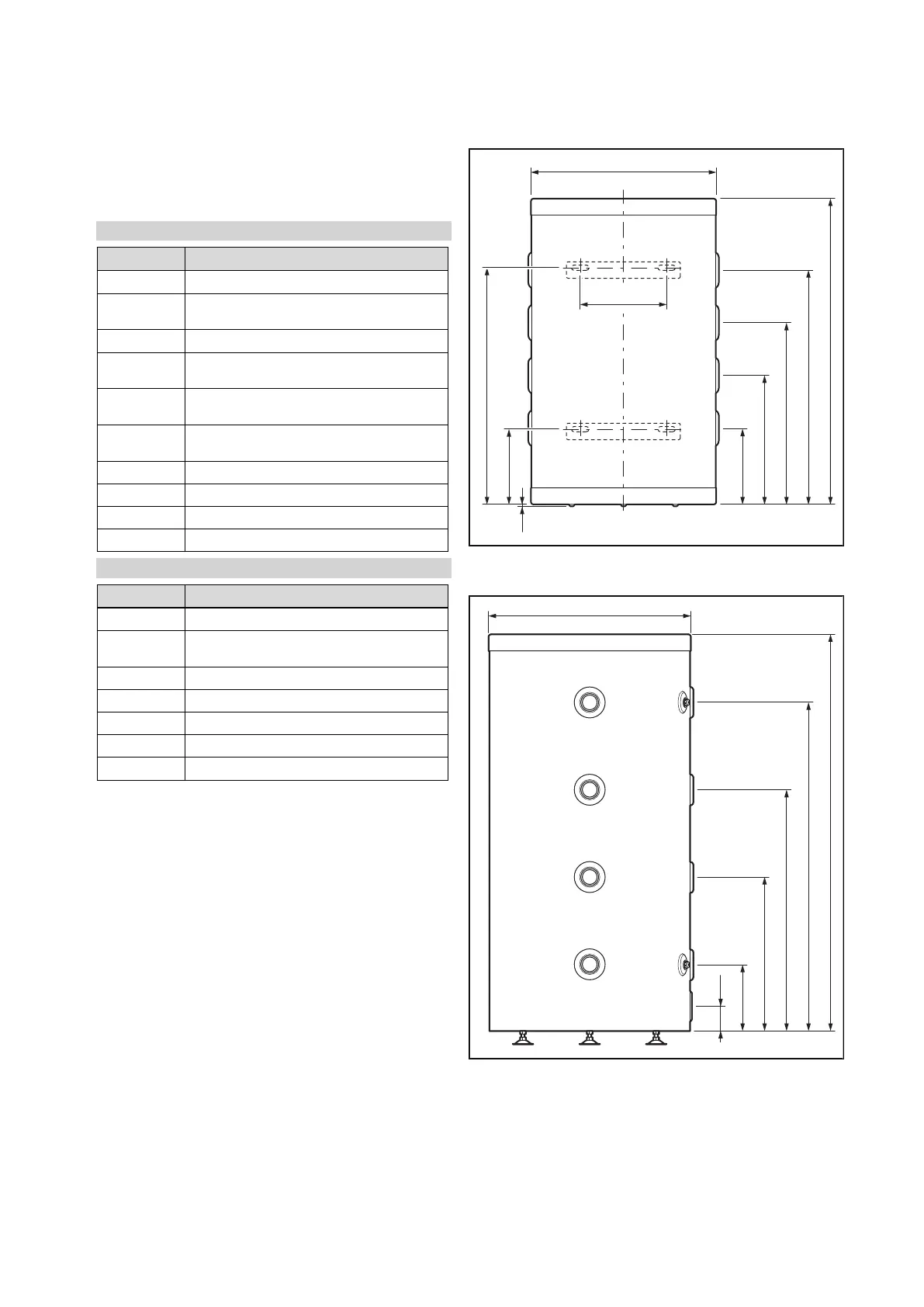

4.3 Dimensions of the product and the
connections
4.3.1 Cylinder with 100-litre capacity
Ø563
230
390
229
6,5
719
550
710
927
256
4.3.2 Cylinder with 200-litre capacity
Ø600
75
200
465
730
995
1202
