Vaisala INTERCAP HMW80 Series User Manual

Quick Guide ____________________________________________________________________ HMW80
© Vaisala 2016. All rights reserved. _______________________________________________________ 3

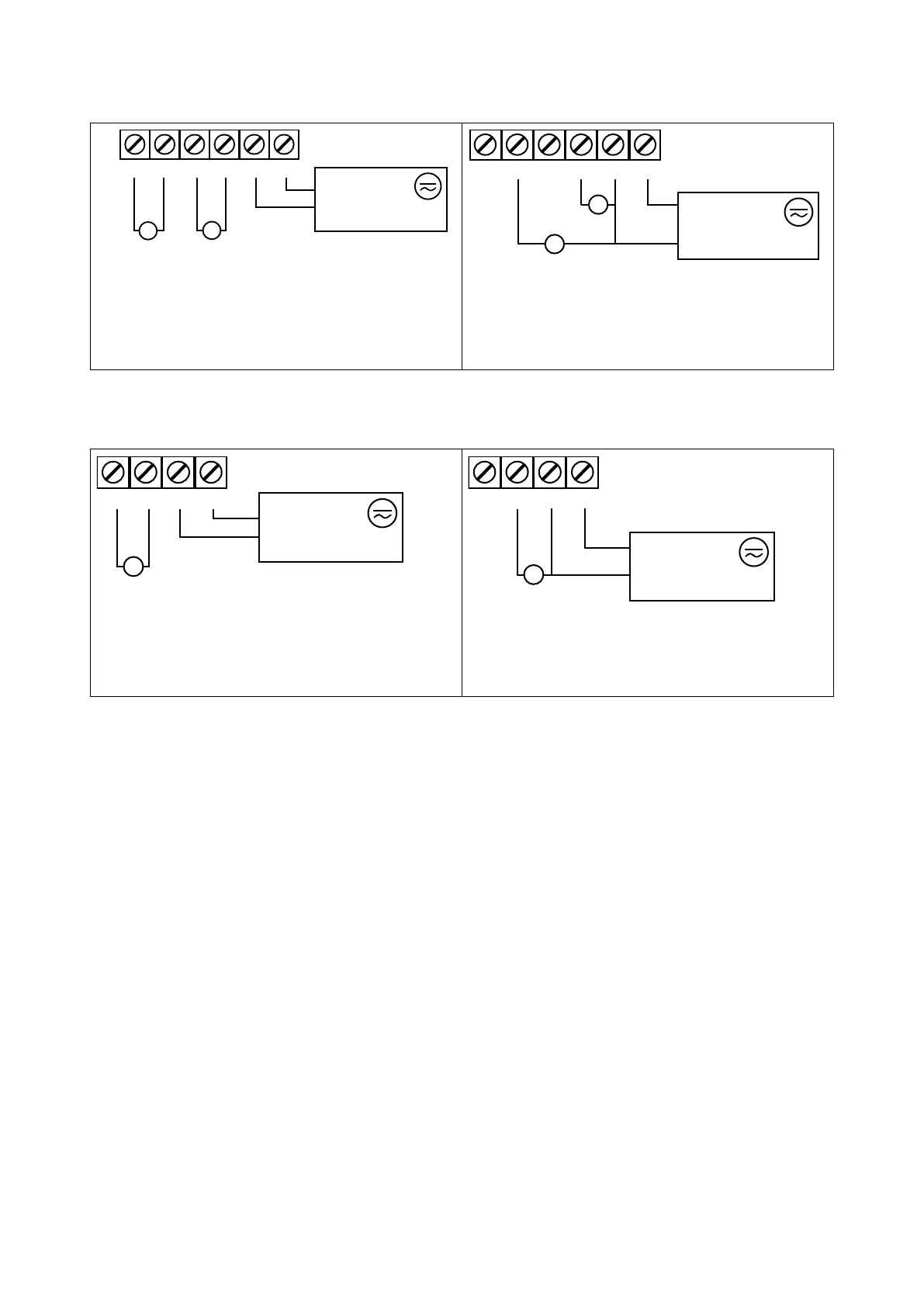

HMW83
-T
0...10 V
(0...100 %RH)
-VS+T +VS
Power supply
15 ... 35 VDC
or 24 VAC ±20%
R
L
= 10 kΩ min.
-RH +RH
0...10 V
(-5...+55 ºC)
V
V
-T -VS+T +VS
Power supply
15 ... 35 VDC
or 24 VAC ±20%
R
L
= 10 kΩ min.
-RH +RH
V
V
0...10 V
0...10 V
Recommended wiring for long cables.
3-wire connection with -VS as common
ground. Not recommended if cable resistance is
more than 2.5 Ω.
TMW83
-T
0...10 V
(-5 ... +55 ºC)
-VS+T +VS
V
Power supply
15 ... 35 VDC
or 24 VAC ±20%
R
L
= 10 kΩ min.
-T -VS+T +VS
V
Power supply
15 ... 35 VDC
or 24 VAC ±20%
R
L
= 10 kΩ min.
0...10 V
Recommended wiring for long cables.
3-wire connection with -VS as common
ground. Not recommended if cable resistance is
more than 2.5 Ω.
