Chapter 3 __________________________________________________ Installation
VAISALA__________________________________________________________15
0212-225

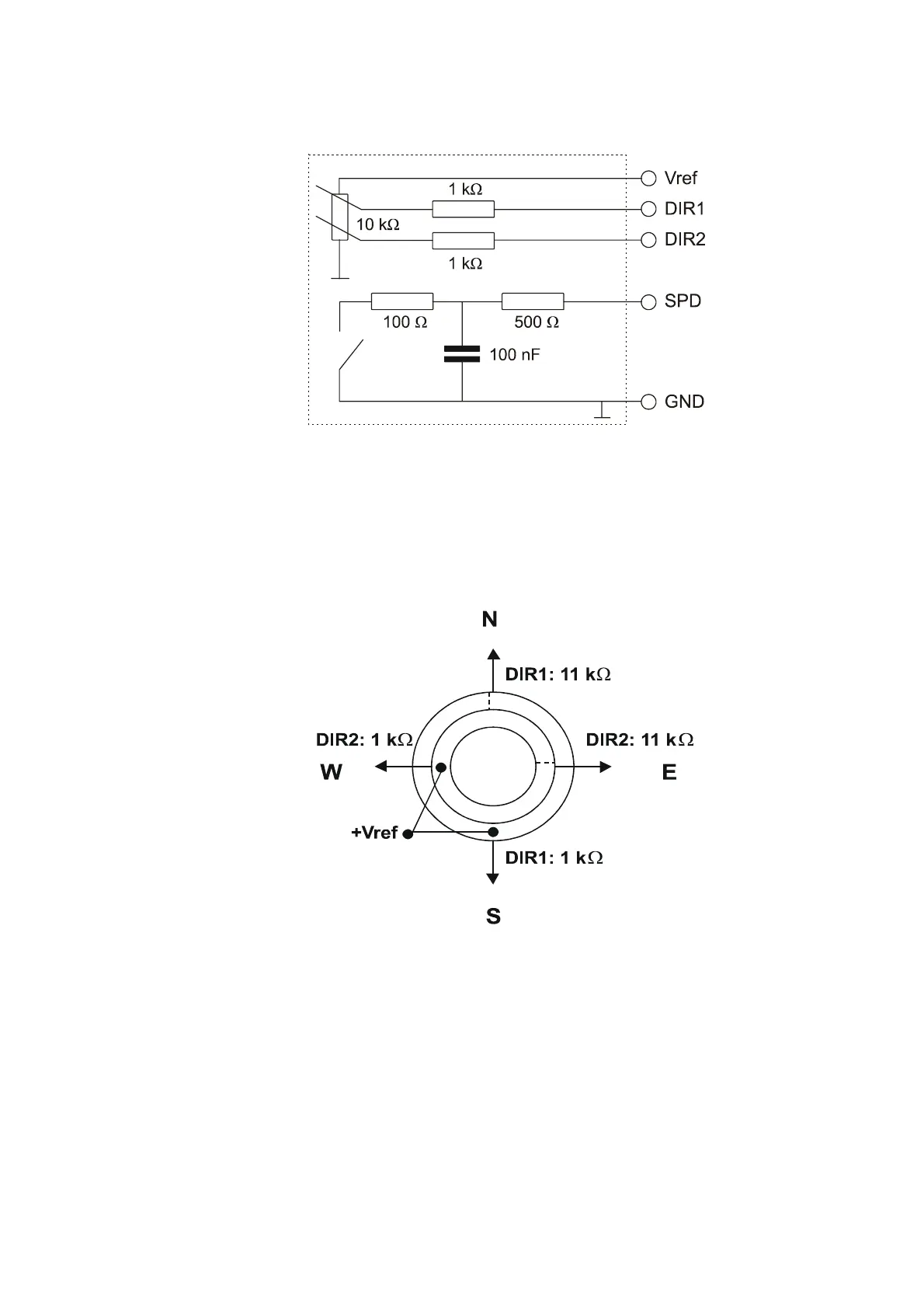

Figure 7 WMS302 Principal Circuit Diagram
The WMS302 sensor is aligned at the factory according to
Figure 8 below. This factory alignment applies to all models
with the alignment sleeve. The alignment sleeve is secured
with a small size Allen bolt to the sensor body.
0212-226
Figure 8 WMS302 Factory Alignment (Models with
the Alignment Sleeve)
