User's Guide ________________________________________________________
16 _____________________________________________________ M210375en-A
Mounting
Mounting Sensor to the Wind Sensor Mast
After a proper location for wind measurement has been
selected, you can mount the sensor to the wind sensor mast.
The diameter of the wind sensor mast is 30 mm. To mount
the sensor, do the following:
1. Fit the cable (number 2 in Figure 9 below) through the
mounting piece (3) and connect the cable to the sensor.
0212-227

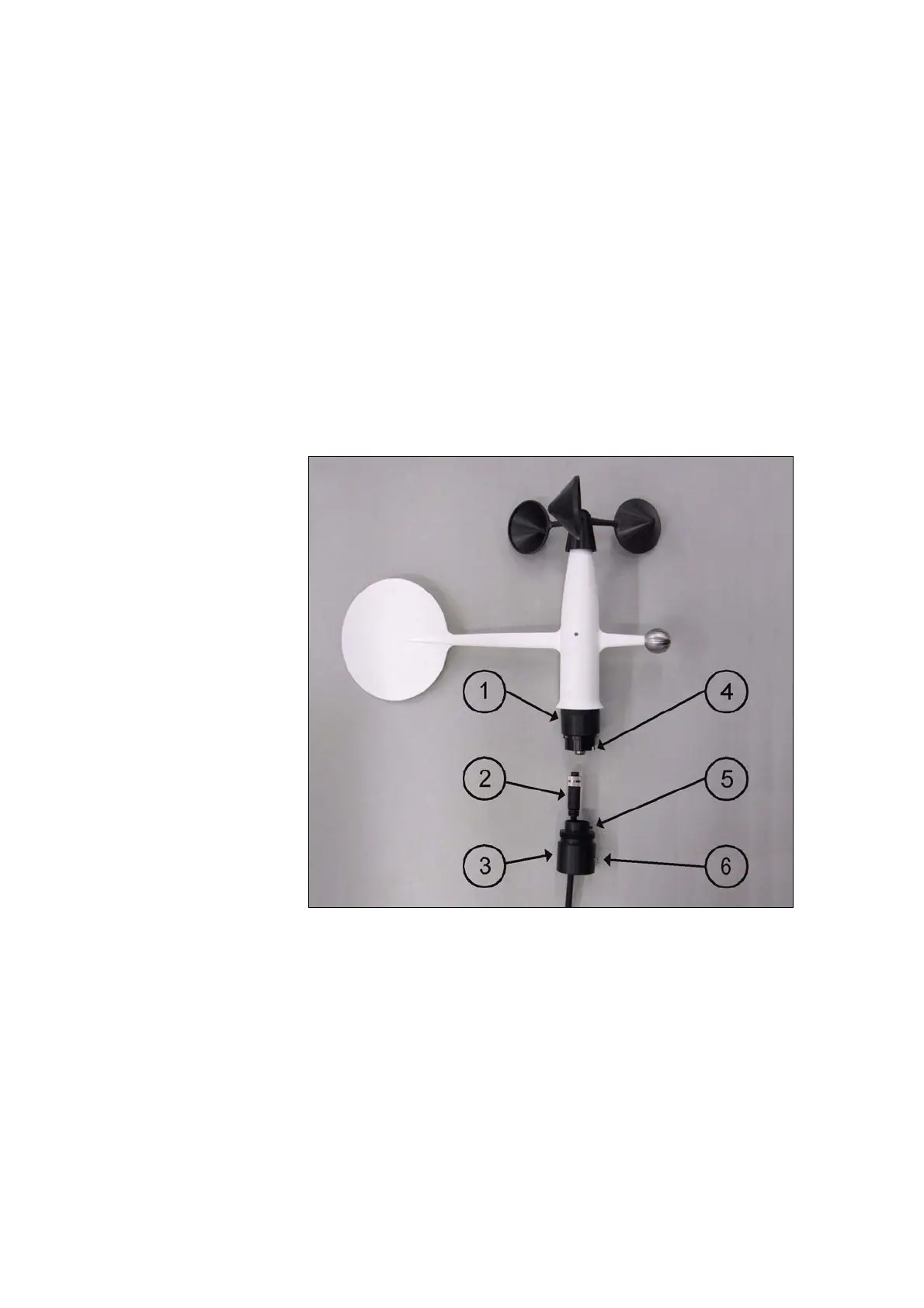

Figure 9 Mounting of the Combined Wind
Sensor
2. Place the mounting piece (3) on the top of the mast and
align the tap (5) to north.
3. Align the notch (4) to the tap (5) and attach the sensor
to the mounting piece with the plastic collar (1).
