Valcom V-1010C User Manual

2 947295

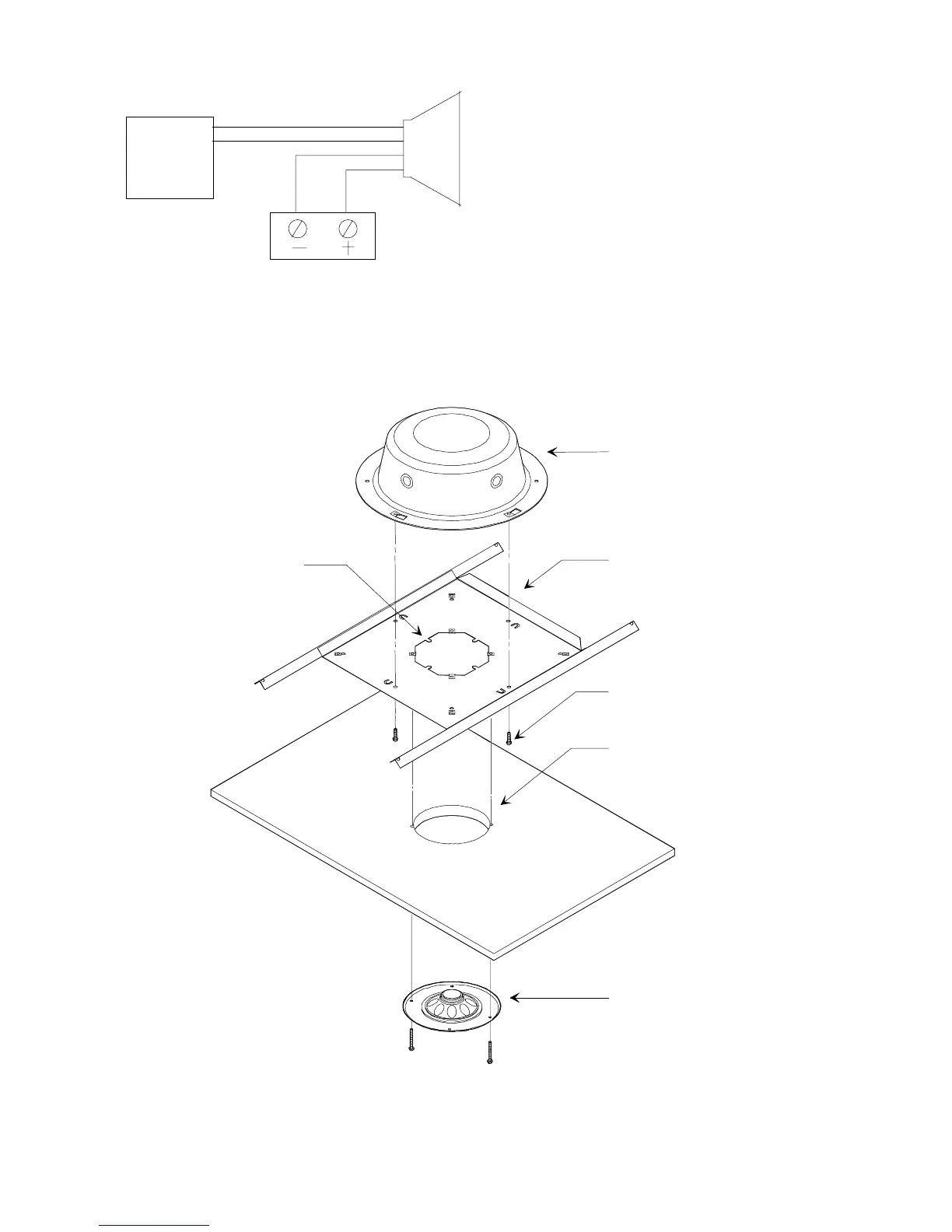

FIGURE 1: TYPICAL CONNECTIONS
NOTE: Do not connect this speaker directly
to a 25/70/100 Volt amplifier as damage to
both the amplifier and speaker may occur.
A V-1095 may be used to allow the use of
Valcom self-amplified speakers on 70V
speaker lines.
Page
Out
Valcom Page
Control
(Tip/A)
(Ring/B)
(-24VDC)
(Gnd)
Valcom -24VDC
Power Supply
One-Way
A
mplified
Speaker
FIGURE 2: V-1010C INSTALLATION INSTRUCTIONS
V-9915M-5 Backbox
V-9904M-5 Bridge
Bend tabs down to
locate bridge in
ceiling tile
cutout.
A
ttach backbox t
o
bridge using 4 screws
provided
Cut 5.25" round
hole in ceiling tile
4" Ceiling Grille
and Speaker
T
he V-9904M-5 is recommended
f
or use where extra speaker
support is needed. A V-9915M-5
may be added to the V-9904M-5
f
or backbox protection
NOTE: The V-9915M-5 cannot
be used in V-1010C installations
w
ithout the V-9904M-5.

Valcom V-1010C Specifications

General

Brand	Valcom
Model	V-1010C
Category	Speakers
Language	English
