Thermo plus 160/230/300/350 8 Repairs

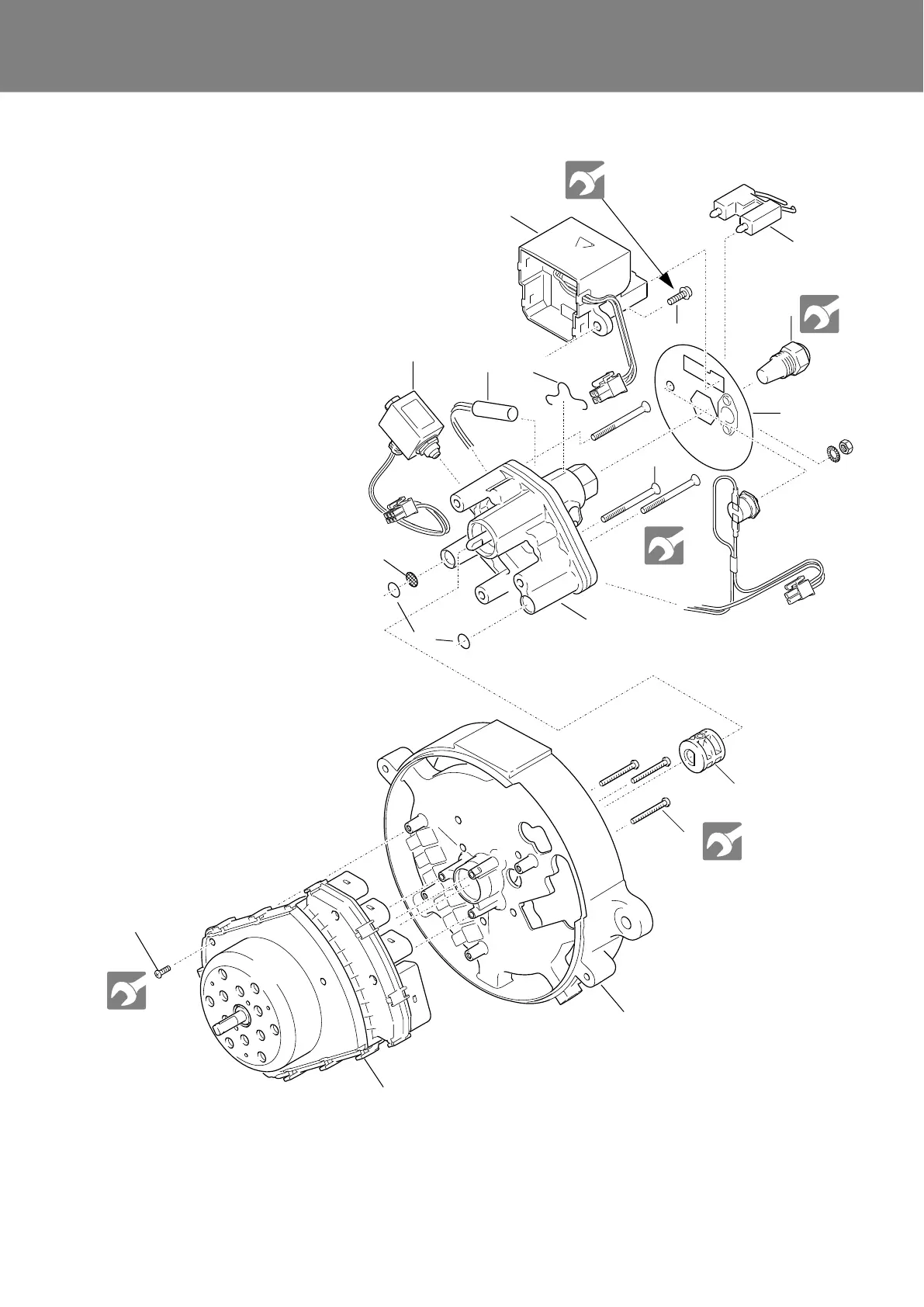

Fig. 805 Components removal and installation
1 Electronic ignition unit
2 Combination screw (2)
3 Ignition electrode
4 Fuel nozzle
5 Disc
6 Solenoid valve
7 Nozzle block preheater
(optional)
8 Retaining clamp
9 Fuel pump
10 O-rings (2)
11 Screen insert
12 Screws (3)
13 Screws (4)
14 Control device
15 Burner housing
16 Screws (3)
17 Coupling
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
5 +1 Nm
5 +1 Nm
20 ±2 Nm
13 (4x)
2 -0.5 Nm
3.7 ±0.5 Nm
