Valeo TM08 - Page 12

-10-

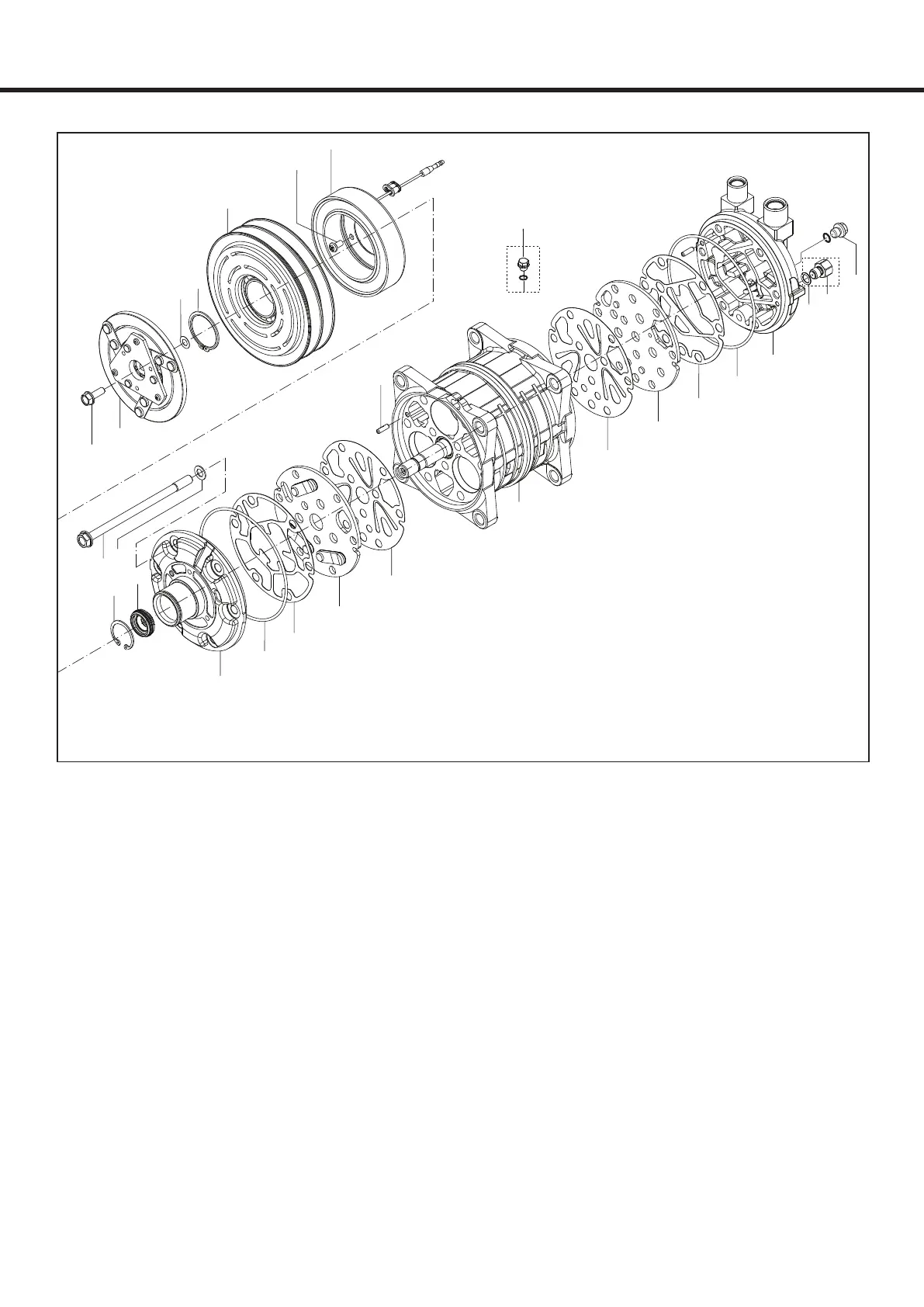

1-Product description - Exploded view
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
26
27
19
1. Center bolt
2. Armature assembly
3. Adjusting shim
4. Snap ring
5. Pulley assembly
6. Screw
7. Field coil
8. Bolt
9. Gasket
10. Snap ring
11. Shaft seal assembly
12. Front cylinder head
13. O-ring
14. Gasket
15. Valve plate assy
16. Sunction valve
17. Pin
18. Cylinder shaft assembly
19. Oil filler plug
20. Sunction valve
21. Valve plate assy
22. Gasket
23. O-ring
24. Rear Cylinder Head
25. O-ring
26. Relief Valve
27. Oil drain plug
