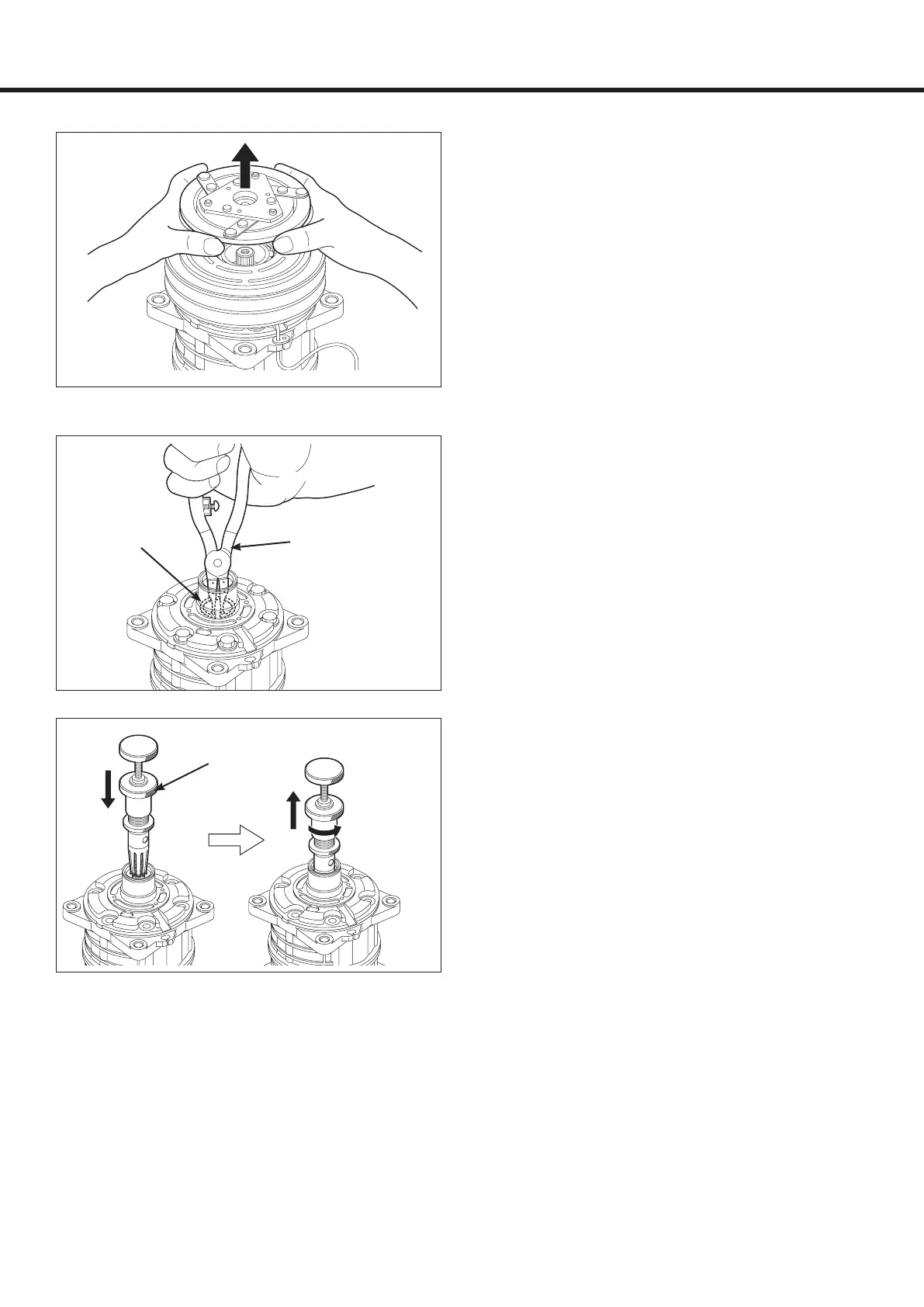

7- Services procedures - Shaft seal assembly

Shaft seal assembly

Removal

1. Remove the magnetic clutch assembly as

described on page 36.

2. Remove the oil filler plug and then drain the

oil.

3. Remove the five bolts securing the heads.

4. Remove the snap ring using internal snap ring

pliers.

5. Insert the remover (597035-5520) into the

shaft seal and turn it untill it hits the shaft seal

case. Then, pull the remover up to remove the

shaft seal.

Internal snap ring pliers

Snap ring

Remover

597035-5520
