-41-

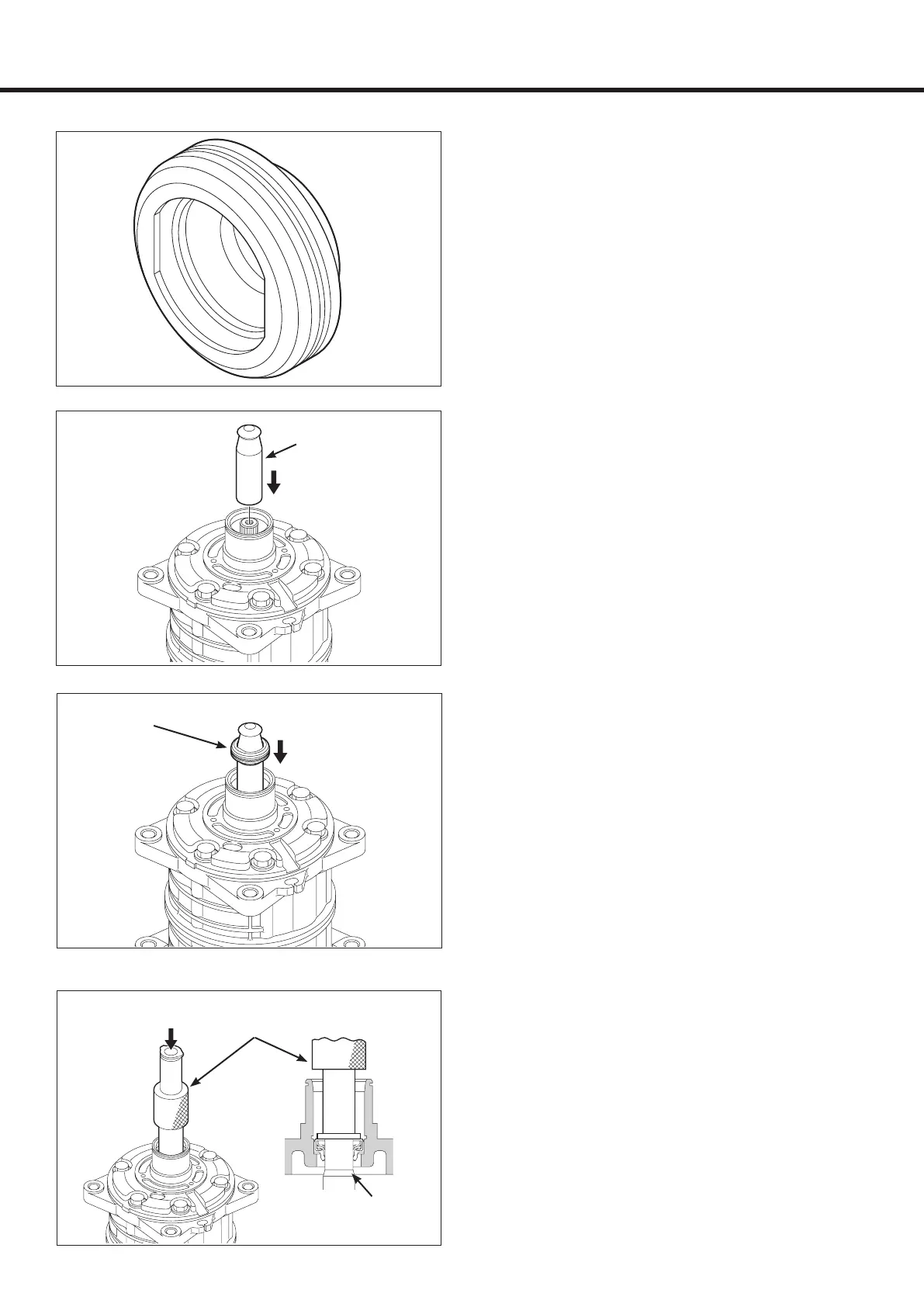

7- Services procedures - Shaft seal assembly
Inspection
The shaft seal must not be reused.
Always use a new shaft seal when reassembling
the compressor. Ensure that the seal seat is free
from lint and dirt that could damage the shaft
seal lip.
Installation
Before installation refer to “Inspection”
Clean the sealed section of the front cylinder
head.
1. Coat the new shaft seal and the front cylinder
head with clean compressor oil. If the slip
faces are dirty, clean them with thinners
and, after drying the clean faces, apply clean
compressor oil to them.
2. Fit the guide (597067-1102) onto the end of
the drive shaft.
3. Insert the shaft seal through the guide into
the front cylinder head.
4. Install the shaft seal as far as possible into the
front cylinder head using the installing end
of the remover (597032-5520). Remove the
guide (597067-1102) from the drive shaft.
Guide
59067-1102
Guide
597067-1102
Shaft seal
Remover
597032-2501
