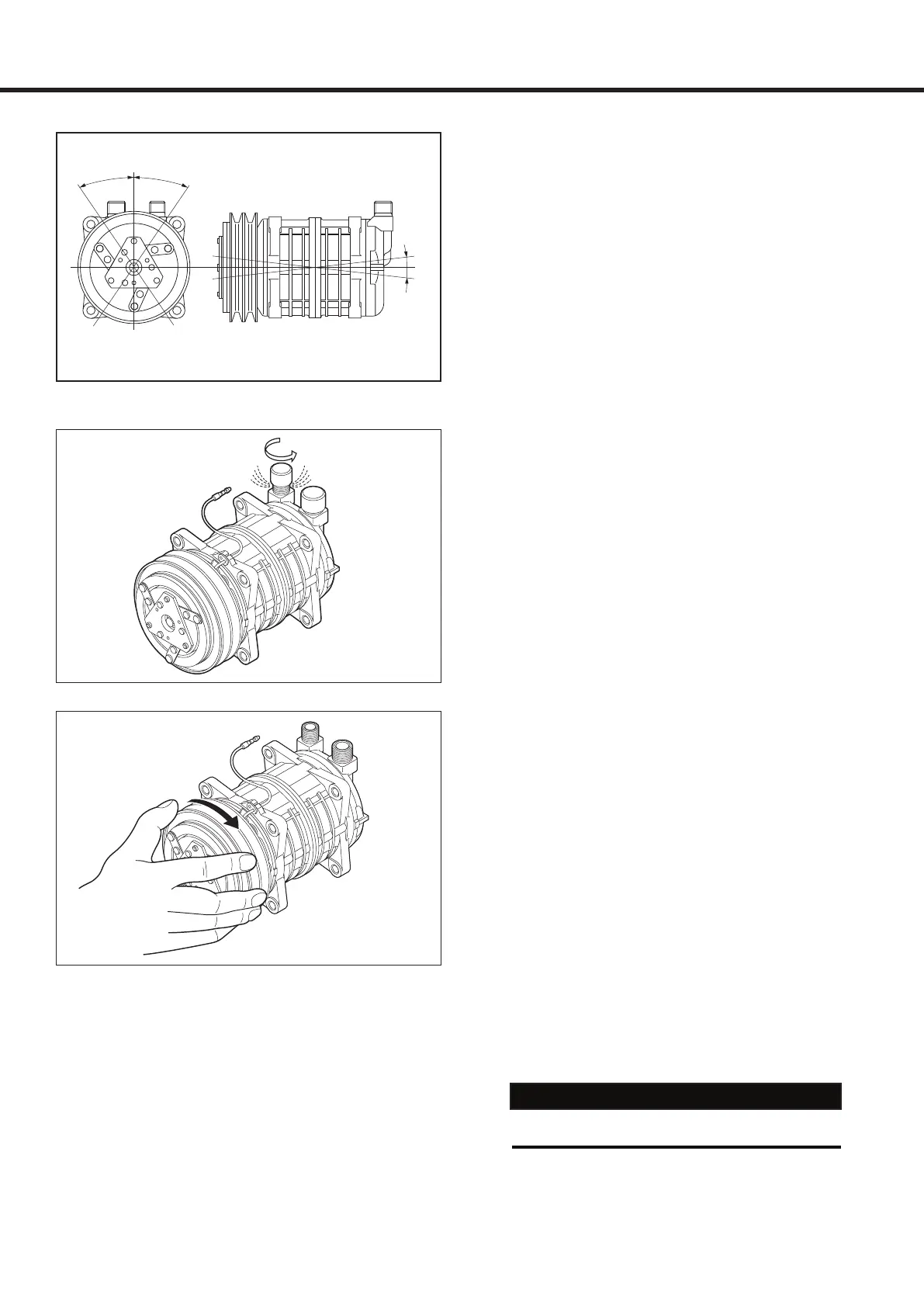

Installation position
The compressor should be installed in the vehicle
within the range shown on the left-hand figure. If
it is installed outside this range, the compressor
will be adversely affected.
This compressor is equipped with a pressure feed
lubrication system, which cannot function if the
compressor is installed outside this range.
If the compressor is installed outside the range
shown on the left-hand figure any or all warranties
may be rendred void.
Installation precautions
The new compressor is filled with the specified
quantity of compressor oil and nitrogen gas (N
2
).
When mounting the compressor on the vehicle,
please follow as below :
1. Loosen the discharge side connector’s cap and
gently release nitrogen gas (N
2
) from the com-
pressor.
2. Turn the magnetic clutch’s armature plate sev-
eral times by hand to distribute the oil which has
settled in the cylinders.
3. When installing the compressor in service sys-
tem, the compressor should be installed after
adjusting the amount of oil, referring to “oil
check” (p.22).
Do not to let the oil escape
CAUTION!
45˚ 45˚
10˚
10˚
