-43-
8- Services procedures - Cylinder heads
Bolts
Front cylinder head
Valve plate
Remover
597035-0500
Tap lightly
Cylinder heads (Front & Rear)

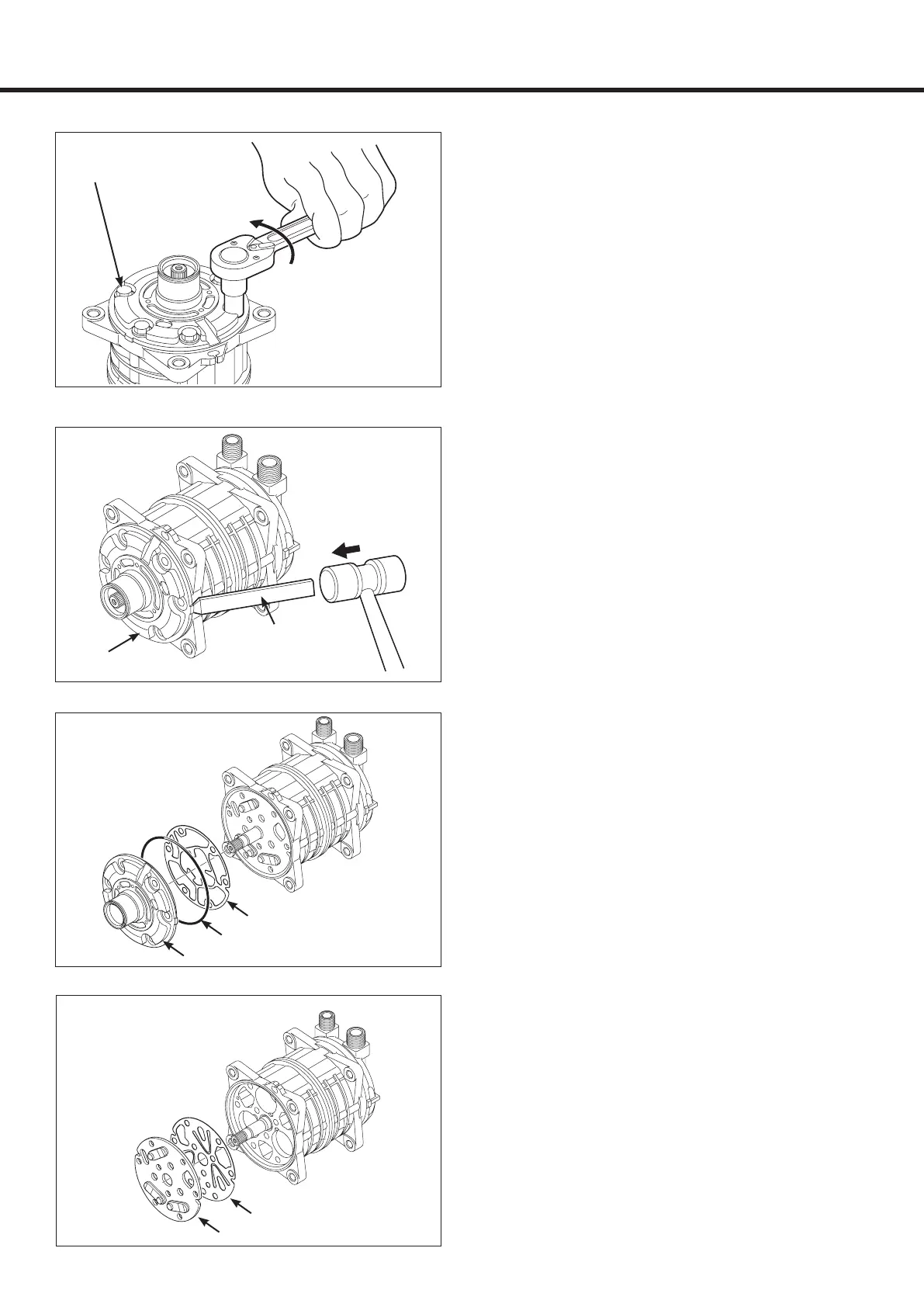

Disassembly
1. Remove the magnetic clutch assembly as
described on page 36.
2. Remove the connector’s caps and the drain
plug and then drain the oil.
3. Remove the shaft seal , as described in “shaft
seal removal “ on page 40.
4. Remove the six bolts securing the heads.
5. Alternately tap the two projections on the
front head using the remover (597035-0500)
and mallet to remove the front cylinder head.
6. Remove the O-ring from the front cylinder
head, and then remove all the gasket material
from the cylinder head.
7. Remove the valve plate and suction valve
from the cylinder shaft assembly.
Suction valve
Front cylinder head
Gasket
O-ring
To Next Page
