Valeo TM08 User Manual

-42-
7- Services procedures - Shaft seal assembly

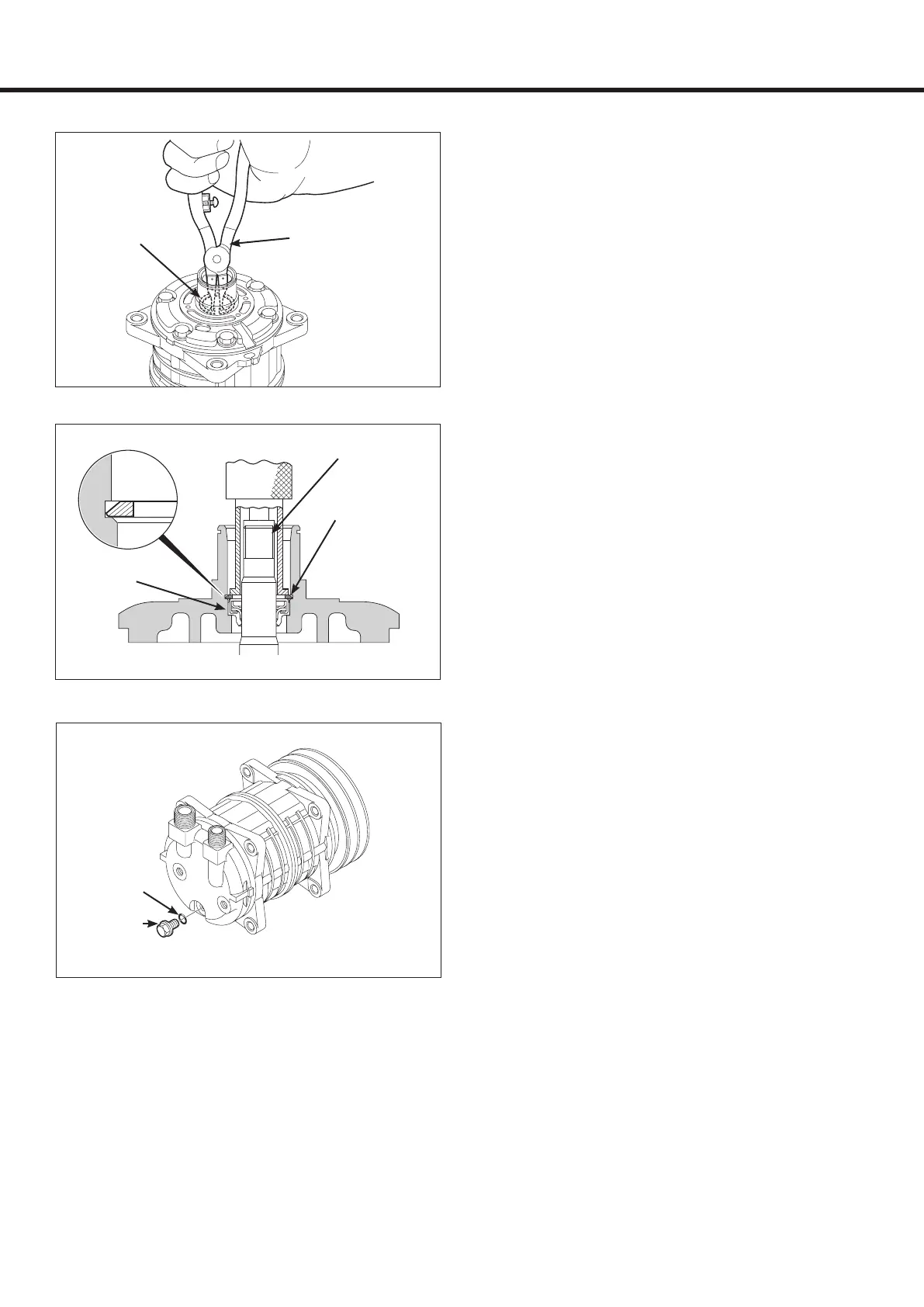

5. Install the snap ring using internal snap ring
pliers. Press the snap ring using the installing
end of the remover (597032-5520) until a
“click” is heard.
Note
1. When installing the snap ring, the round
edge of the snap ring must face downward,
as shown on the left-hand figure.
2. Check the snap ring is properly installed, as
shown on the left-hand figure.
3. Install the oil drain plug wih a new O-ring,
thinly coated with clean compressor oil and
tighten it to the specified torque
Specified torque: 13~ 15 N·m
{1.3 ~ 1.5 kgf·m, 9.5 ~11.0 lbf·ft}
Internal snap ring pliers
Snap ring
Snap ring
Guide
(597067-1102)
Shaft seal
Oil drain plug
O-ring
