-37-
6-Service procedures - Magnetic clutch

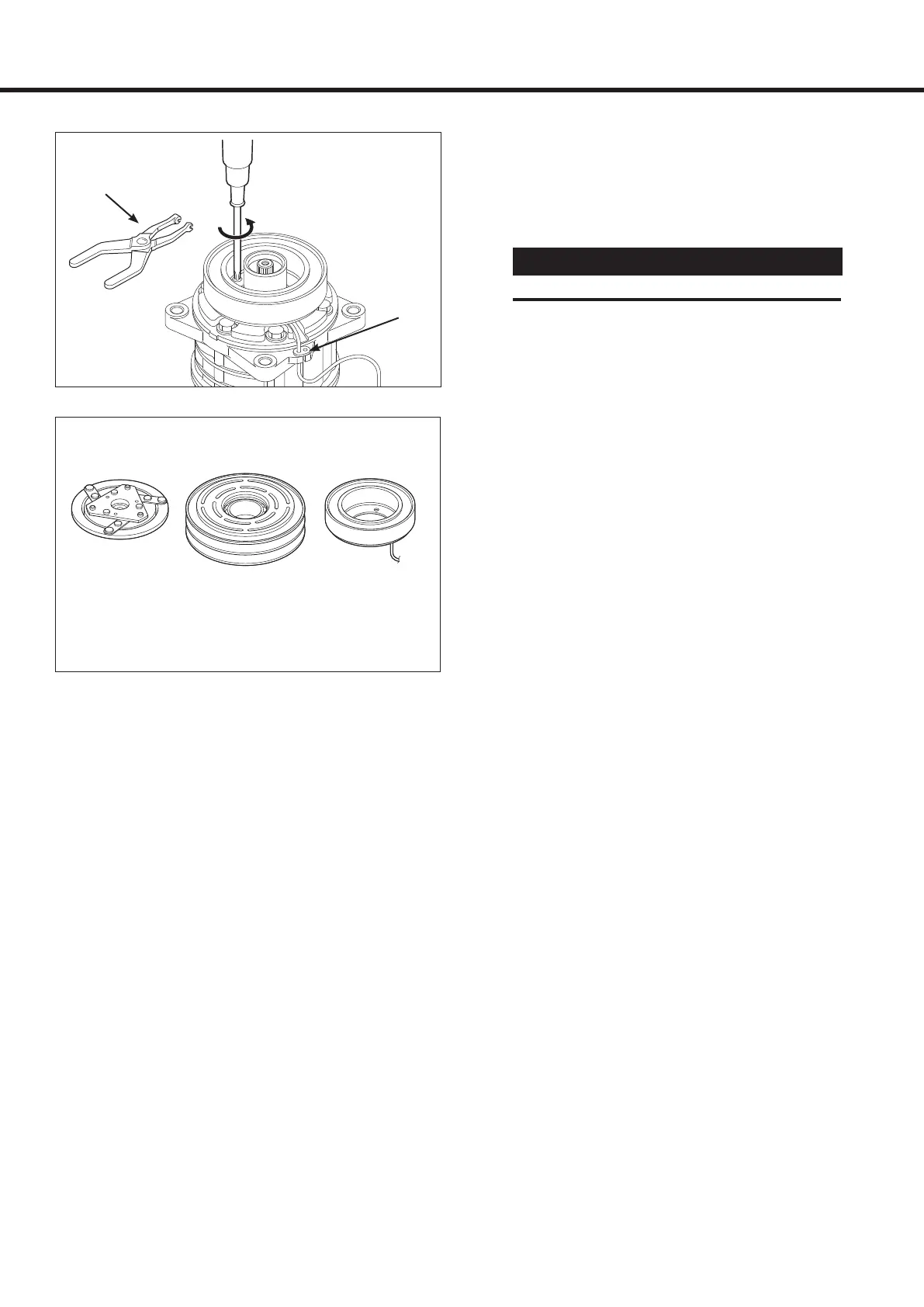

Pulley assembly Field coil
Remover
597035-3820
Lead wire
bushing
Armature assembly
7. Remove the field coil’s lead wire bushing
using the remover (597035-3820).
8. Remove the three field coil/compressor
screws. Then remove the field coil.
Inspection
1. If the contact surface has been damaged by
excessive heat, the armature and pulley must
be replaced.
2. Check the appearance of the pulley assembly.
If the contact surface of the pulley is
excessively grooved due to slippage, both the
pulley and armature must be replaced, The
contact surfaces of the pulley assembly must
be cleaned with a suitable solvent before
reinstallation.
3. Check the field coil for a loose connector or
cracked insulation.
CAUTION!
Do not hold the field coil by the harness.
