- 40 -

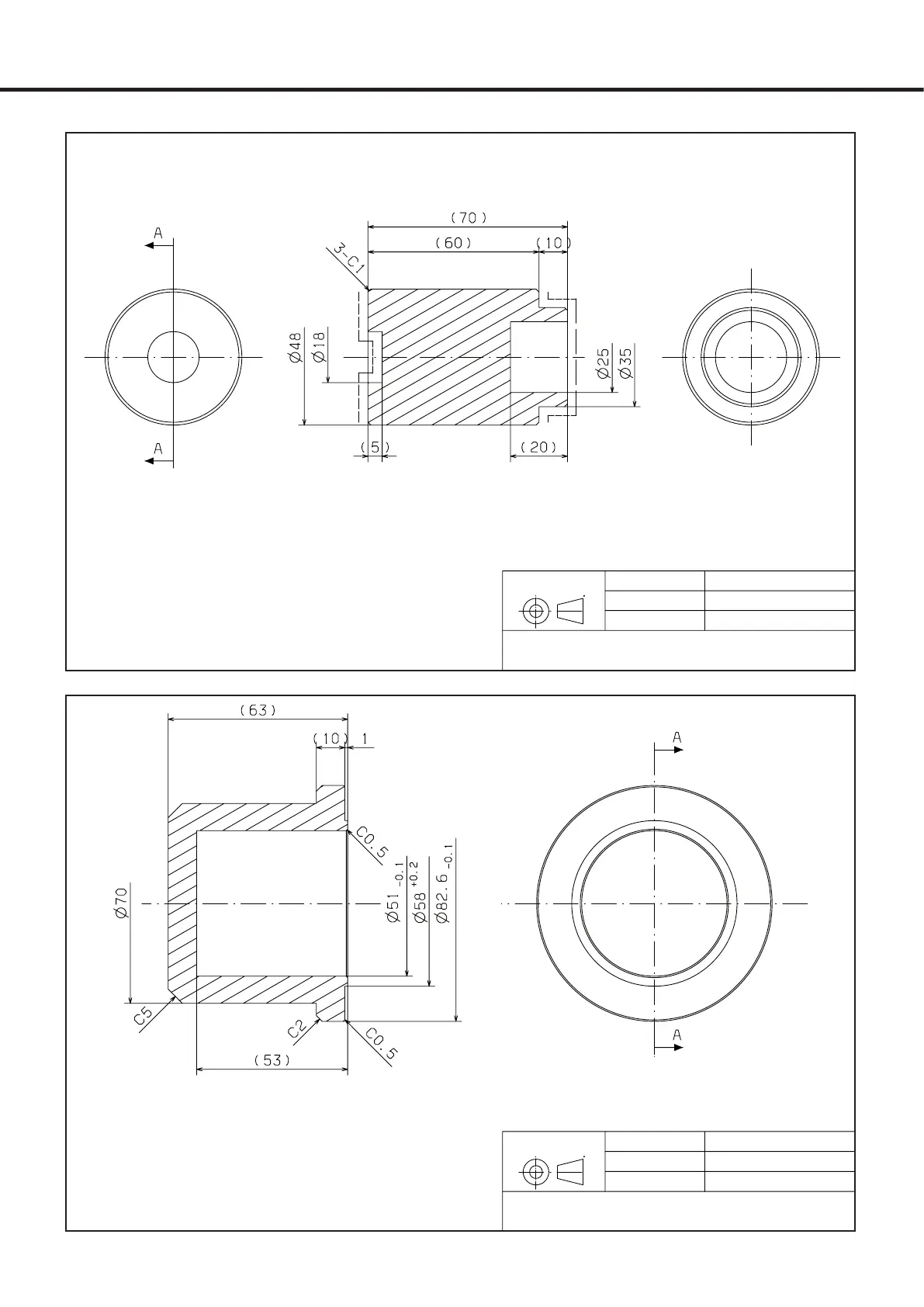

8- Service tools
Unless otherwise specified,
the edges to be slight chamfering.
Should remove burrs and fluff.
Part Name
3rd Angle Proj.
Surface Treatment
Heat Treatment
& Hardness
Material
S45C
- - -HQ - HTL
HRC40 to 45
Section view A-A
Center Pulley Puller
Unless otherwise specified,
the edges to be slight chamfering.
Should remove burrs and fluff.
Part Name
3rd Angle Proj.
Surface Treatment
Heat Treatment
& Hardness
Material
SK105 (JIS)
HQ - HTL
HRC58
Section view A-A
Pulley Installer
