5
Section 2: V-Module Kit (GV60VM)
Hardware
The GV60VM kit consists of:
• V-Module
• AC power cable
• Receiver connector cable
See "Hardware Requirements" on page 2 for full
details.
Installing the V-Module
See "Wiring Diagram" on page 3 for details.
1. Disconnect power to the appliance.
2. Connect the AC power cable's Molex connector to
the POWER terminal of the V-Module.

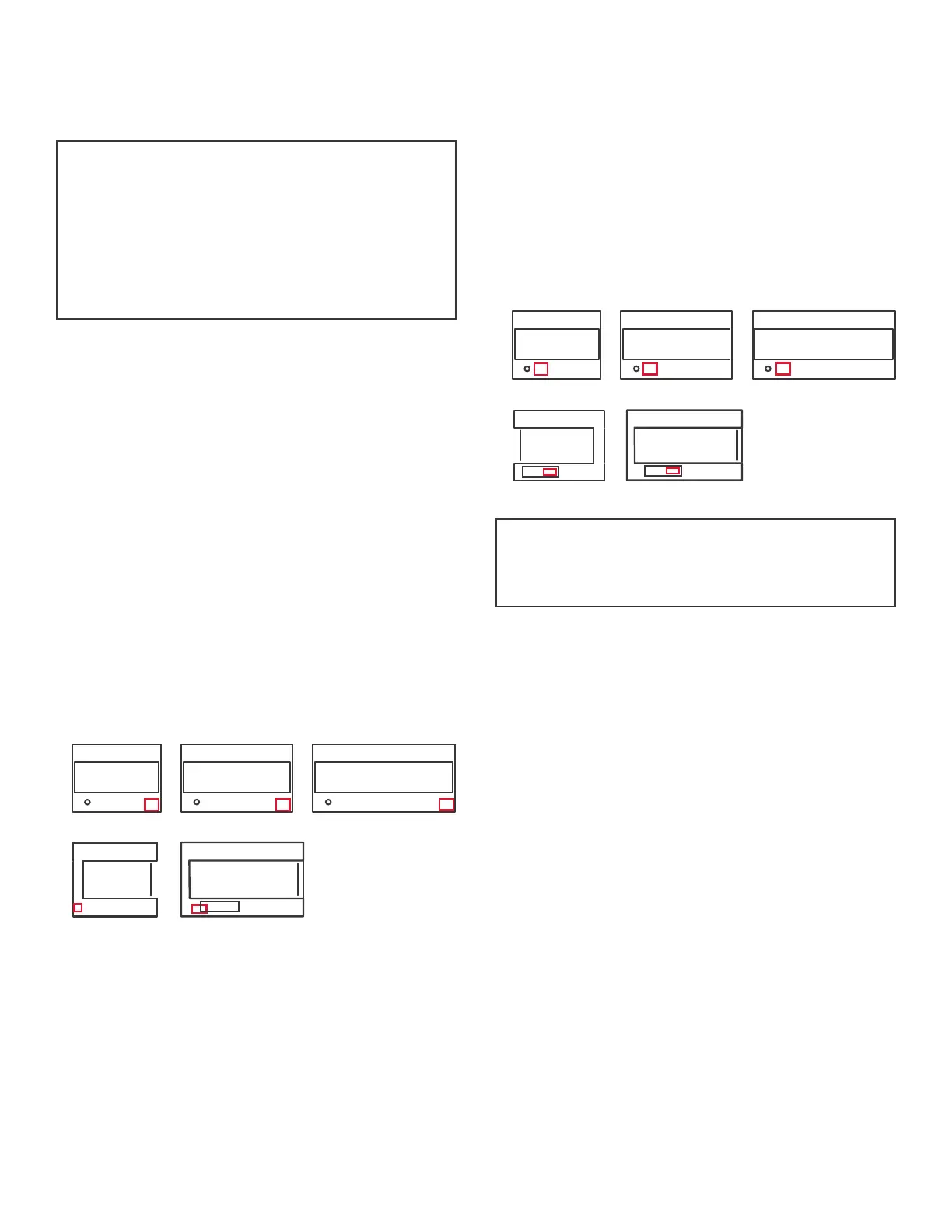

3. Plug the power cable into the fi replace's AC recep-
tacle. The receptacle is located inside the fi replace.
Its position for each appliance is indicated below by
the red rectangle.
L1 L2 L3
LX2 (at rear)
LX1
4. Connect the V-Module’s Receiver terminal (white
connector) to the MODULE port on the Receiver.
5. Connect the fan/light wires if applicable.
6. Attach Velcro and place the V-Module as close to
the location indicated in the diagrams below as pos-
sible, inside the front panel of the fi replace.
Note that room must be left for the WiFi module.
In L2 and L3, there is a grommeted hole in the front
panel stiff ener you may pass cabling through.
Proceed to Section 3: WiFi Module Kit (GV60WIFI).
L1 L2 L3
LX2LX1
Note
The V-module should be placed as close to the
Receiver as possible depending on your fi replace.
Note
This Section applies to 1500I/J, 1600I/J, 1700I/J,
1800J, and 2200J fi replaces, those with an
incompatible V-Module (V2 or earlier), or those
lacking a V-Module entirely only.
All others proceed to Section 3: WiFi Module Kit
(GV60WIFI).
