Valor LX Series Installation Instructions

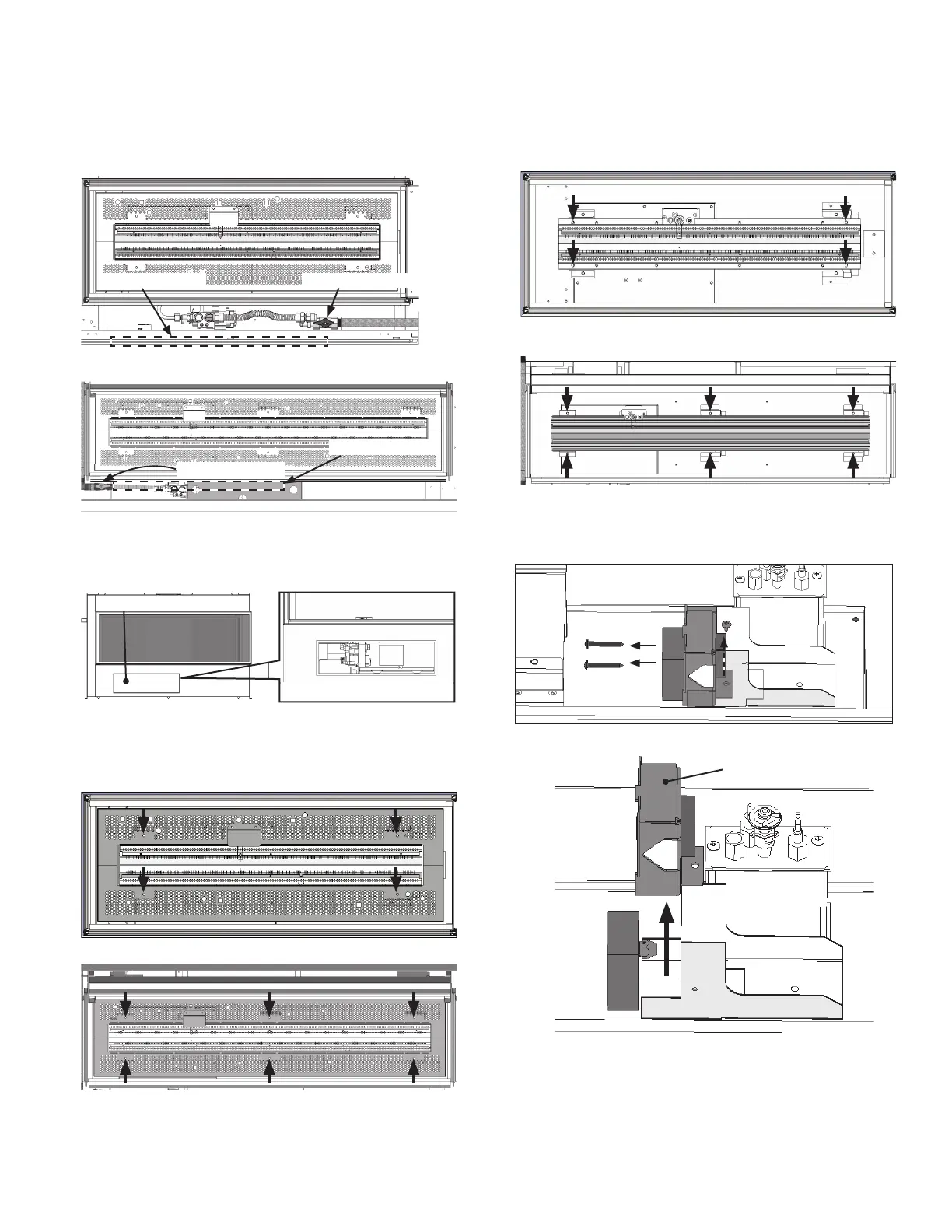

Prepare the appliance
1. Remove the barrier, sill, and front window—see ap-
pliance’s Installation Manual.
2. Turn off the gas at the shut off valve.
3. Remove the access plate on the front panel of the
appliance (6 screws).
4. Remove both media trays, front and rear (2
screws each for LX1, 3 screws each for LX2).
Gas shut-off valve
LX2 - Top view
LX1 - Top view
Gas shut-off valveAccess panel
Access panel
Access panel removed (LX2)
LX1 - Top view
LX2 - Top view
5. Remove the burner (4 screws on LX1, 6 screws on
LX2).
Very carefully slide to the right and lift the burner
off . Be careful not to damage the pilot head.
Replace the main injector
1. Remove the air shutter (3 screws).
LX1 - Top view
LX2 - Top view
Air shutter
Access panel
2

Valor LX Series Specifications

General

Category	Indoor Fireplace
Fuel Type	Natural Gas or Propane
Venting	Direct Vent
Glass Size	Varies by model
Ignition System	Electronic Ignition
Dimensions	Varies by model
Weight	Varies by model
Warranty	Limited Lifetime Warranty
BTU Input	Up to 40, 000 BTU
Efficiency	Up to 85%
