Valor Portrait Cast Arch Fronts 539 Series User Manual

11
# Description 539v2 Series 549v2 Series 550v2 Series
Black Polished Black Polished
1 Hearth Fender 4000241AH 4000241 4000241AH 4000241 4001104
2 Inner Cast Arch 4000240AH 4000240 4000240AH 4000240 4001094
3Hearth Baffl e 4000347 4000347 4000347 4000347 4001100AH
4 Outer Cast Arch 4000225AH 4000225 4000414AH 4000414 4001093
5 Side Mounting Brackets (2) 4005074AH 4005074AH 4005074AH 4005074AH 4005074AH
6 Spacers (2) 4005076 4005076 n/a n/a 4005076
7Air Defl ector 4000205 4000205 4000205 4000205 4001101AH
8Top Baffl e 4005075AH 4005075AH 4005075AH 4005075AH 4005075AH
9Stand Off Spacer RH 4000209 4000209 n/a n/a 4000209
10 Stand Off Spacer LH 4000210 4000210 n/a n/a 4000210
11 Insulation Blanket (2) 4000206 4000206 n/a n/a 4000206
12 Barrier Screen 4003290 4003290 4003290 4003290 4003290
Hardware Kit 4001208 4001208 4001208 4001208 4001208

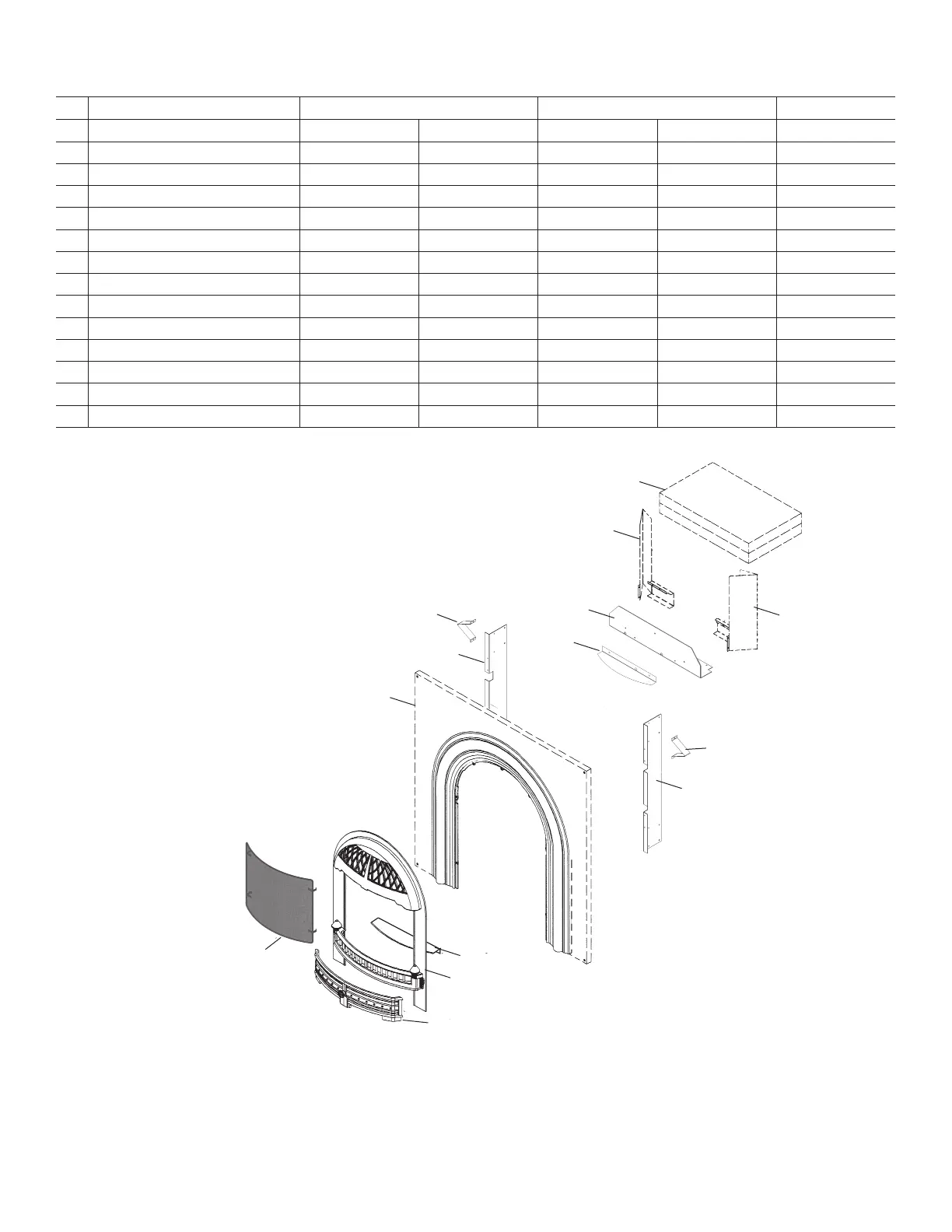

REPAIRS PARTS LIST (539AFBv2, 539AFPv2, 549AFBv2, 549AFPv2, 550CPAv2)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
