Valor Portrait Cast Arch Fronts 539 Series User Manual

2
Top Bae
Top
Air Deector

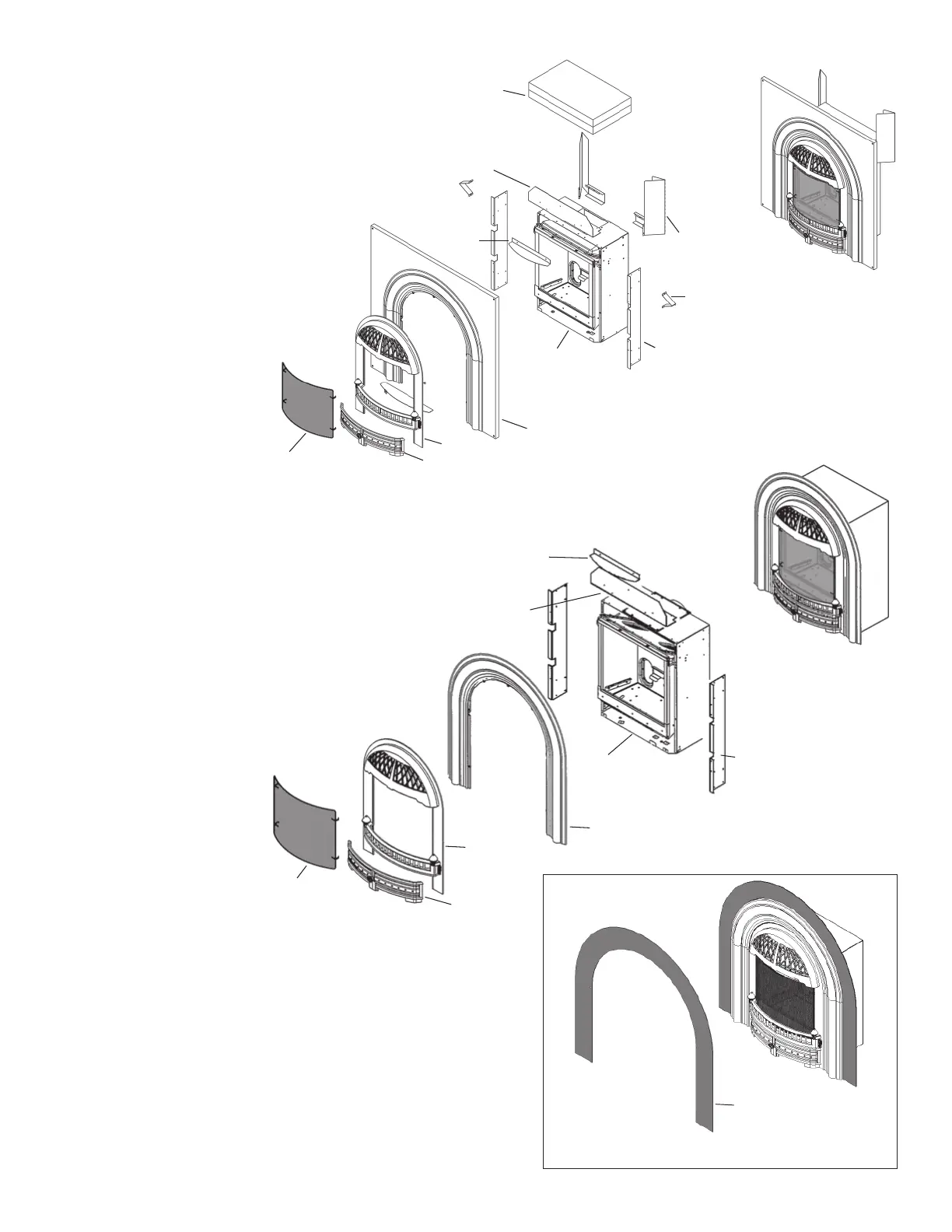

Model 530 Heater
(sold separately)
Inner Cast Arch
Hearth Fender
Barrier Screen
Side Mounting Brackets (2)
Outer Cast Arch
549AFB/Pv2 Windsor Arch Front
(without plate) - Insert only
1 Outer cast iron arch
1 Inner cast iron arch fitted with a Barrier
screen
1 Hearth fender, cast iron
2 Side mounting brackets, sheet metal
1 Top baffle, sheet metal
1 Top air deflector, sheet metal
1 Pack of screws
(Note: The 549 version of
the Windsor Arch Front
[without plate] does not
come with zero clearance
items and is intended for
insert applications only).
549APB Arched Plate
(insert only)
(optional, sold separately)
549 Windsor Arch Front
shown with
549APB Arched Plate
Insulation Blanket
(2 layers)
Top Bae
Top
Air Deector
Outer Cast Plate
Barrier Screen
Hearth Fender
Inner Cast Arch
Model 530 Heater
(sold separately)
Side Mounting Brackets (2)
Spacers (2)
Stand-o Spacers (2)
(LH & RH)
549APB Arched plate
549APB Arched Plate Black - insert only
- optional
Kit Contents
539AFB/Pv2 Windsor Arch &
550CPAv2 Classic Arch (with plate) -
ZC or Insert
1 Outer cast iron arch (w/plate)
1 Barrier screen
1 Inner cast iron arch
1 Hearth fender, cast iron
2 Side mounting brackets, sheet metal
2 Spacers, sheet metal
1 Top baffle, sheet metal
1 Top air deflector, sheet metal
2 Stand-off spacers,
sheet metal (supplied flat)
2 Insulation Pads
1 Pack of screws
