Valor Portrait Cast Arch Fronts 539 Series User Manual

7
31”
34”
38-9/16” (980 mm)
3-11/16”
(94 mm)
38” (965 mm)
39”
38”
Fixing Points (4)
34”

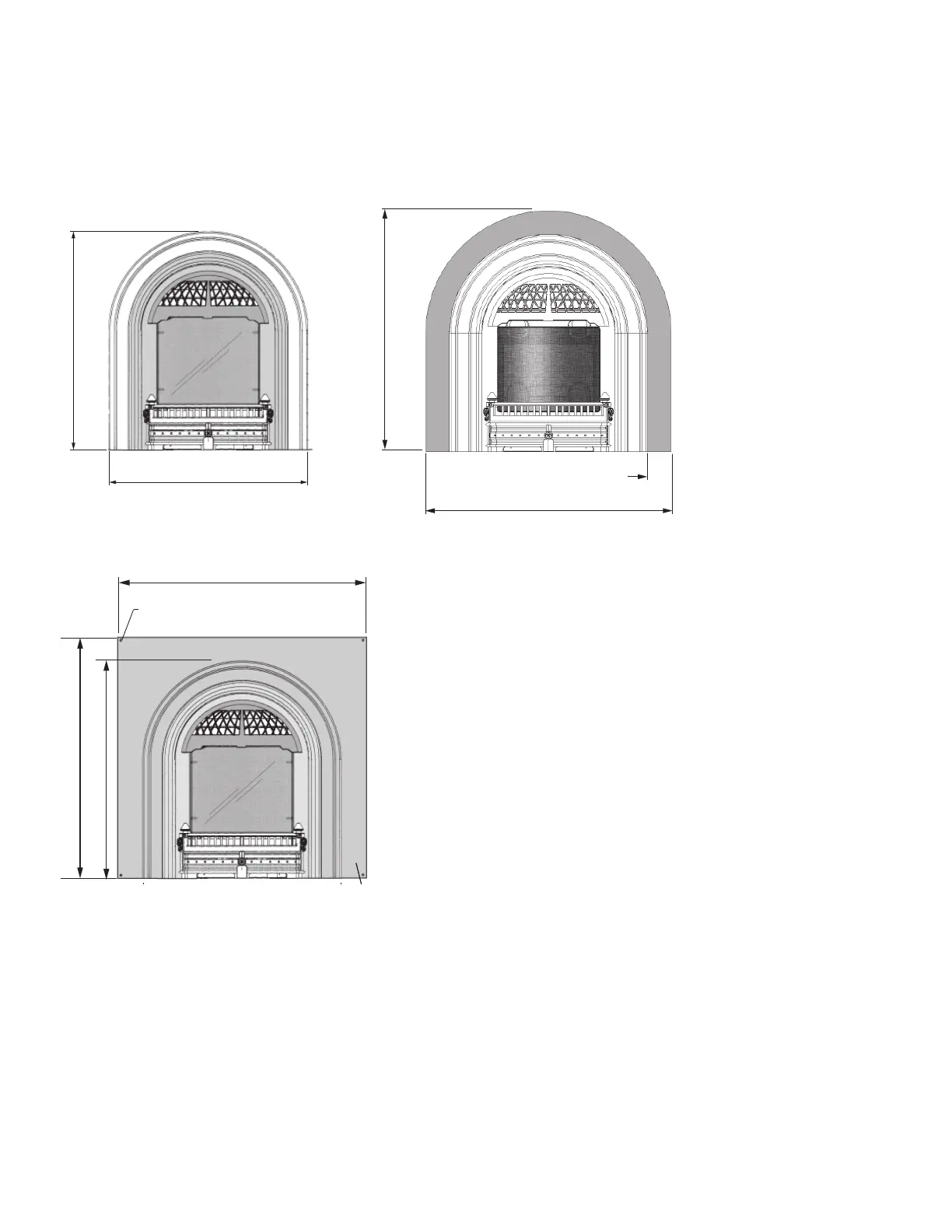

Dimensions & Clearances
INSERT APPLICATIONS WITH 530IN/IP OR 530INI/IPI INSERT ENGINES
(539AFBv2, 539AFPv2, 549AFBv2, 549AFPv2, 550CPAv2)
549 Arches 549 Arches with 549 Arched Plate
539 and 550 Arches
Casting Tolerances
Due to the nature of cast iron, dimensional consistency
may vary from one unit to the next and some variation
in surface finish and flatness is to be expected. We have
done our best to control and make allowance for this;
however some variation is inevitable.

Valor Portrait Cast Arch Fronts 539 Series Specifications

General

Brand	Valor
Model	Portrait Cast Arch Fronts 539 Series
Category	Indoor Fireplace
Language	English
