NOT REQUIRED when installing
539 or 550 Arched Cast Front as
an insert application
2 Spacers
1 ZC Stand-off LH
1 ZC Stand-off RH
1 Insulation Layer
7/8”
25-1/4”
‘X’
‘Y’
20”
539, 550: 10-3/4”
549: 11-1/2”
530 engine with
556CLA co-linear adaptor
530 insert engine with
standard co-linear vent
530 insert engine with
530CVA co-axial vent adapter
19-1/4”
3/8”
3/4”
6”
3/4”
1”
3/4”
2 x 3” dia.
colinear
vent
2 x 3” dia. colinear
adaptor top or rear
4-3/4”x 3” dia.
co-axial adaptor
Outer cast
plate
Max 8” deep
mantle leg
at edge of
protruding arch
Do not put
furniture or
objects
within 36”
of front of
appliance
6-1/4”

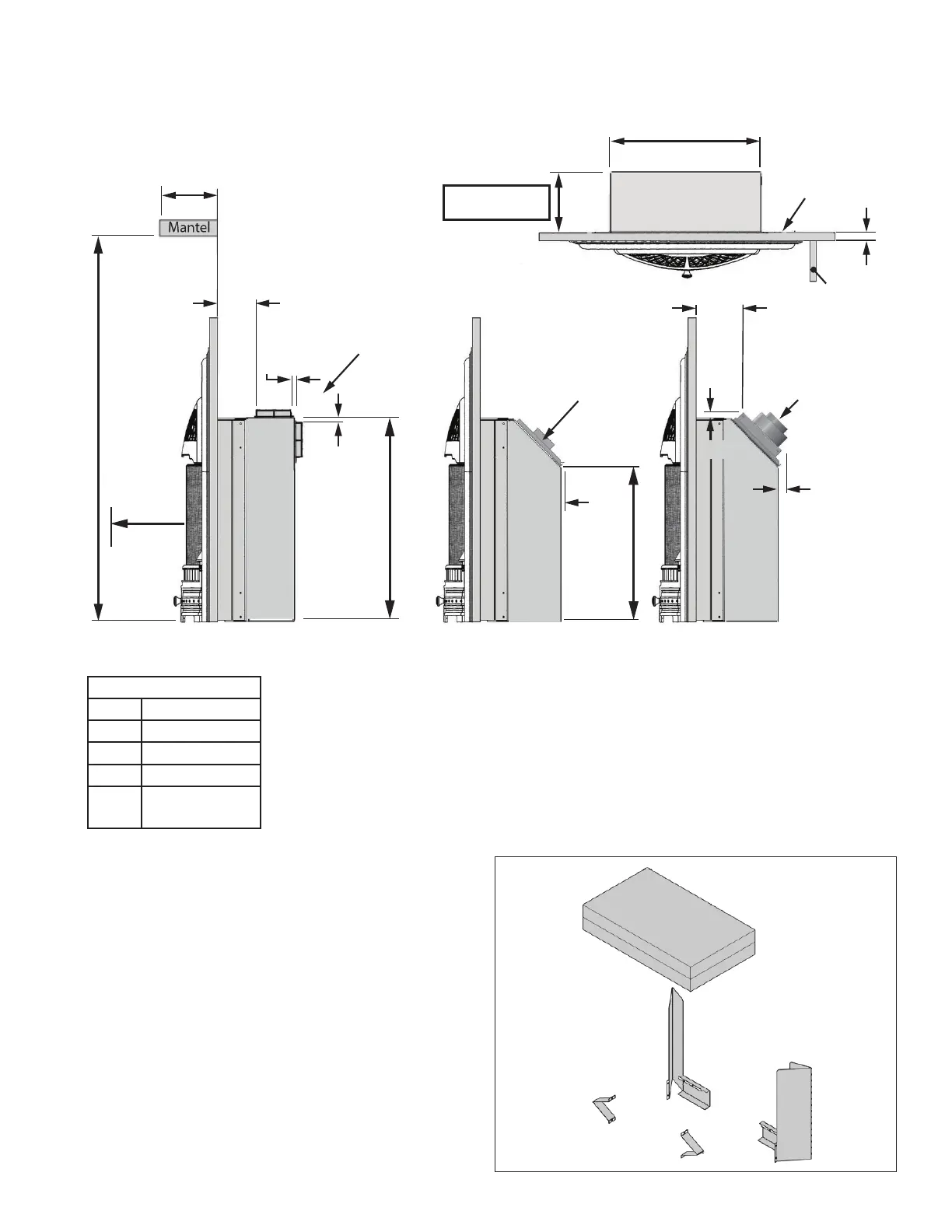

Insert dimensions for 3 engine confi gurations
These dimensions are for non-combustible installations and apply to all Arched Cast
Fronts 539, 549 and 550 (539 Windsor Arch shown here)
Note: Most recessed 530
insert applications will also
require a 556CLA Co-linear
Adapter.
Mantel Clearances
‘X’ ‘Y’
1” - 6” 34”
7” - 8” 36”
9” - 12” 38”
12” +
38” + 1” for every
inch beyond 12”
