Valor Portrait Cast Arch Fronts 539 Series User Manual

4
Framing
• The framing dimensions for installation of the 530
heater with the models 539 or 550 Arch Fronts are
shown in the Framing Diagram.
• A non-combustible hearth is not necessary in front of
the 530 heater.
• The 530 is approved for installation directly on
any combustible material other than soft flooring
material such as carpet or vinyl.
• Any framing construction must be clear of the
standoffs—see Dimensions & Clearances and
Framing Diagram.
• A hearth, flush with the bottom of the heater, will be
required to support the removable hearth fender.
38” center-center
stud spacing
Recommended for fastening
cast plate to wall
26-1/4”
13-1/8”
37”
Minimum depth.
Some venting
congurations may
require more

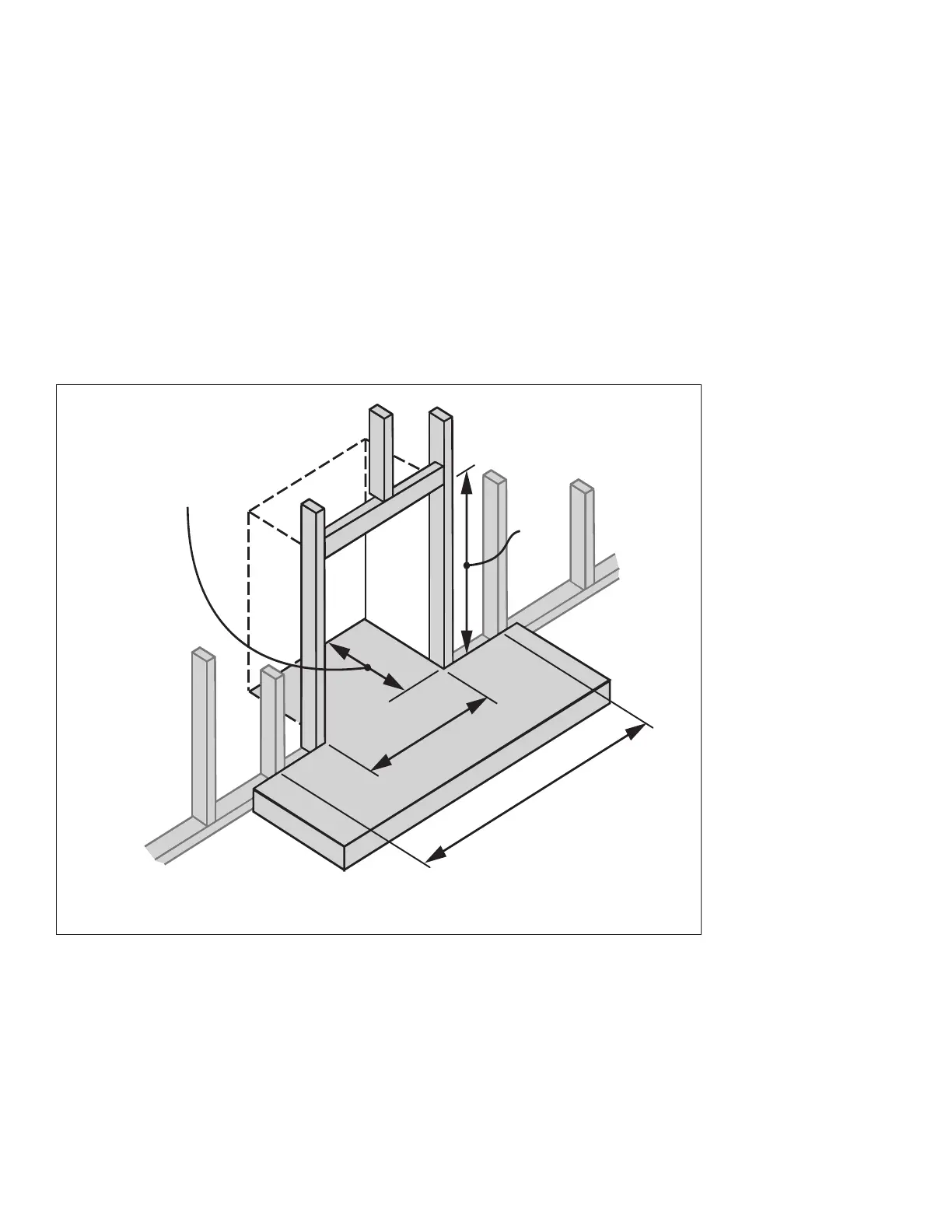

Framing Diagram
