General notes regarding conversion

The conversion may be done before or after the

appliance is installed into the cavity. However, the

gas must be connected in order to set the manifold

pressure.

Prepare the appliance

1. If the ﬁ replace is already installed, remove the front,

window and fuel bed.

2. Disconnect the gas inlet pipe from the inlet elbow

ﬁ tting on the valve.

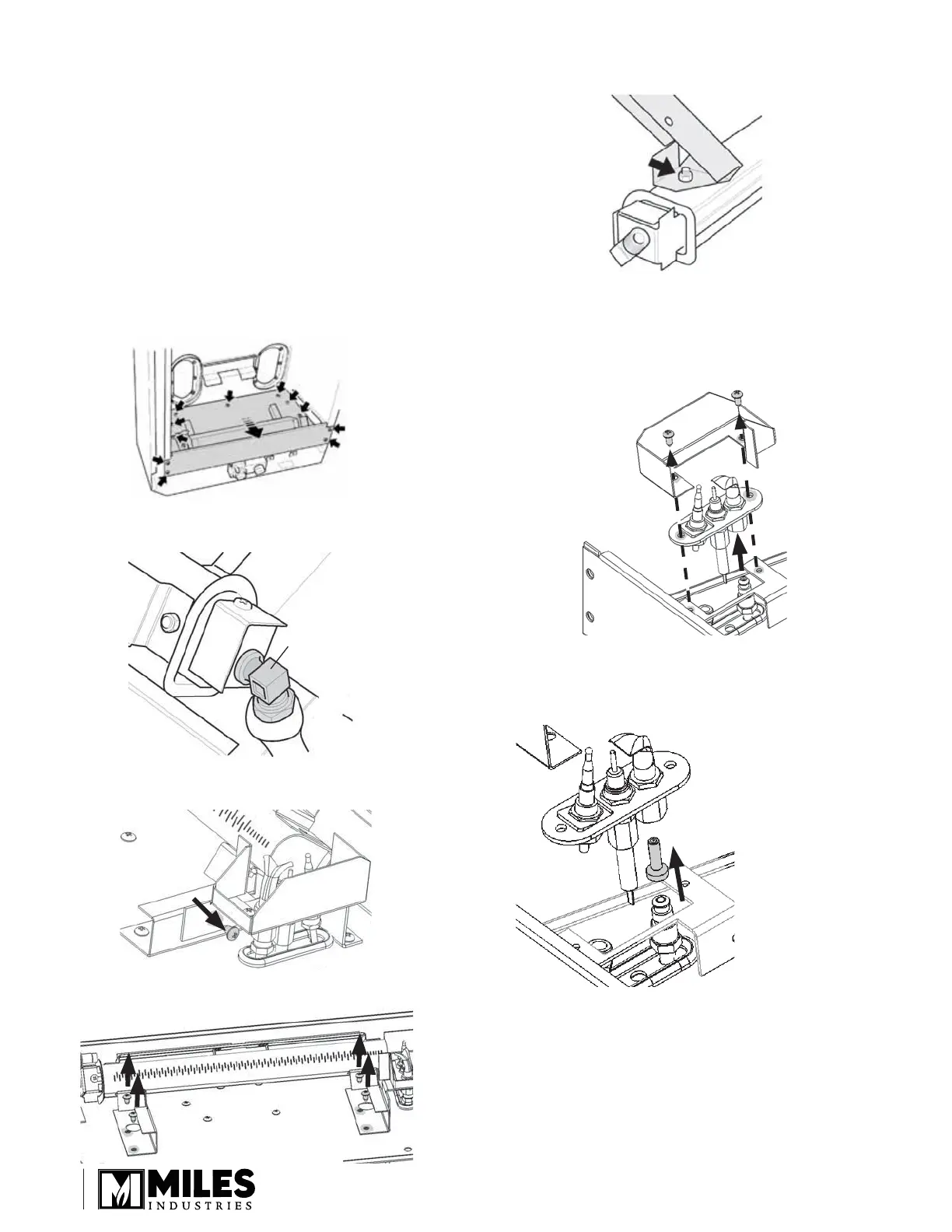

Conversion procedure

1. Detach the burner module (11 screws).

2. Disconnect the burner elbow injector from the pipe,

using a 11/16” (17 mm) wrench.

3. Remove the screw securing the pilot bracket to the

burner support bracket.

4. Detach the burner unit from the burner plate (4 screws).

Disconnect

5. Detach the two burner support brackets from the

burner rail (2 nuts).

6. Disconnect the pilot unit and shield from its bracket

(2 screws).

7. Accessing pilot assembly from underside of module,

disconnect the pilot pipe, using a 7/16” (11 mm)

wrench.

8. Remove the pilot injector. Replace by the

appropriate pilot injector—see the Speciﬁ cations

table on the ﬁ rst page.

9. Replace the main burner with the burner assembly

supplied and reassemble the module.

Note - The pilot

injector should

be slipped onto

the end of the

pipe from the

side. The pilot

pipe, with injector

attached, should

be inserted into

the assembly.

Burner module rear view
