1112
Model
Code Page
2(2)79.5

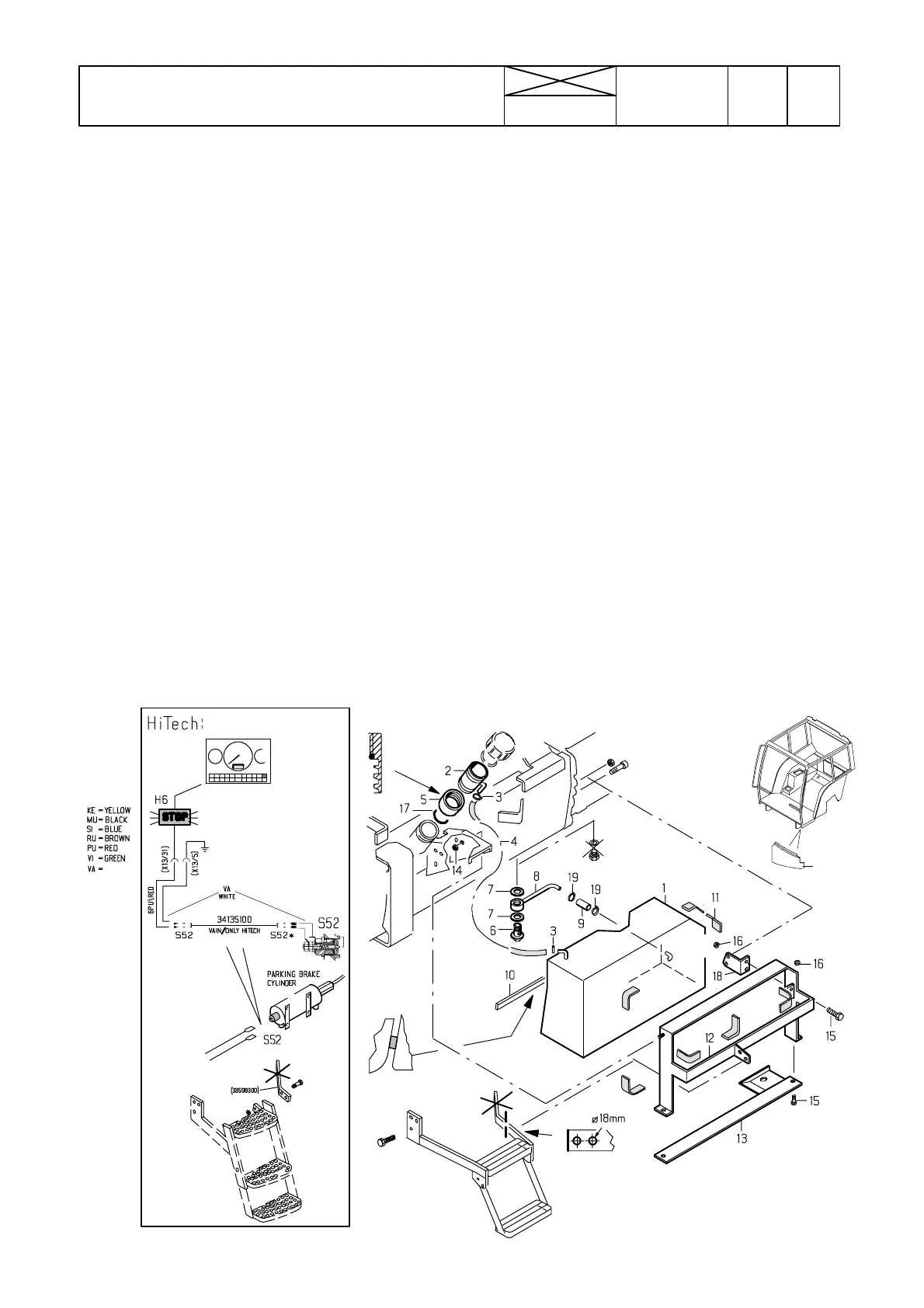

EXTRA FUEL TANK, FITTING INSTRUCTION
11.04.2000
06.04.2000
6250Hi--8950Hi
6000---8750
--- Fa s te n t h e f ue l p i p e 8 (it can be assembled while
the fastener 13 is in place). Connect the pipe 4
other end to the connector on the fuel filling hole.
H i Te c h --- m o d e l s : make the wires of t he parking
brake cylinder longer by the extension wire
34135100
(HiTech only). Join the connector S52.
--- Fill the tank with fuel and check for leaks.
1 33627000 Polttoainesäiliö Bränsletank Fuel tank Kraftstofftank Réservoir de carburant6200---8550
6250Hi---
8950Hi
1 1 32755220 .Polttoainesäiliö Bränsletank Fuel tank Kraftstofftank Réservoir de carburant
2 1 32829700 .Täyttöputki Påfyllningsrör Filling pipe Einfüllungsrohr Tuyau de remplissage ---J10111
3 2 GP3927 .Letkunkiristin Slangklämma Hose clip Schlauchbinder Clip de tuyau
4 1 32837000 .Letku Slang Hose Schlauch Tuyau flexible
5 1 32829800 .Holkki Hylsa Sleeve Hülse Manchon ---J10111
6 1 32967500 .Ruuvi Skruv Screw Schraube Vis M30x1,5
7 2 KH3643 .Tiiviste Tätning Gasket Dichtung Joint
8 1 32967710 .Putki Rör Pipe Rohr Tuyau
9 1 32967600 .Letku Slang Hose Schlauch Tuyau flexible
10 2 32021500 .Tiiviste Tätning Gasket Dichtung Joint
11 7 32697500 .Tiiviste Tätning Gasket Dichtung Joint
12 1 32816010 .Kehys Ram Frame Rahmen Cadre
13 1 32755300 .Laatta Platta Plate Platte Plaque
14 1 JB8907 .Mutteri Mutter Nut Mutter Ecrou
15 4 HA9242 .Ruuvi Skruv Screw Schraube Vis
16 4 JB8906 .Mutteri Mutter Nut Mutter Ecrou
17 1 KH4933 .O---rengas O---ring O---ring O---ring Joint torique ---J10111
18 1 32959900 .Korvake Öra Lug Ohr Support
19 2 GP3919 .Letkunkiristin Slangklämma Hose clip Schlauchbinder Clip de tuyau
1 34135100 .Johdin Ledning Wire Leitung Fil électrique HiTech
40 1 33678800 .Suojus Skydd Shield Schutz Protection Left
40
