966
Model Code Page
64. Powered front axle
1. 1. 1995
6000--8750 640 6
8. 11. 1990
M
N
s=0,2
0,5
S= N --- M --- 0,6 m m
75 Nm
s=0,15
0,2
0,5

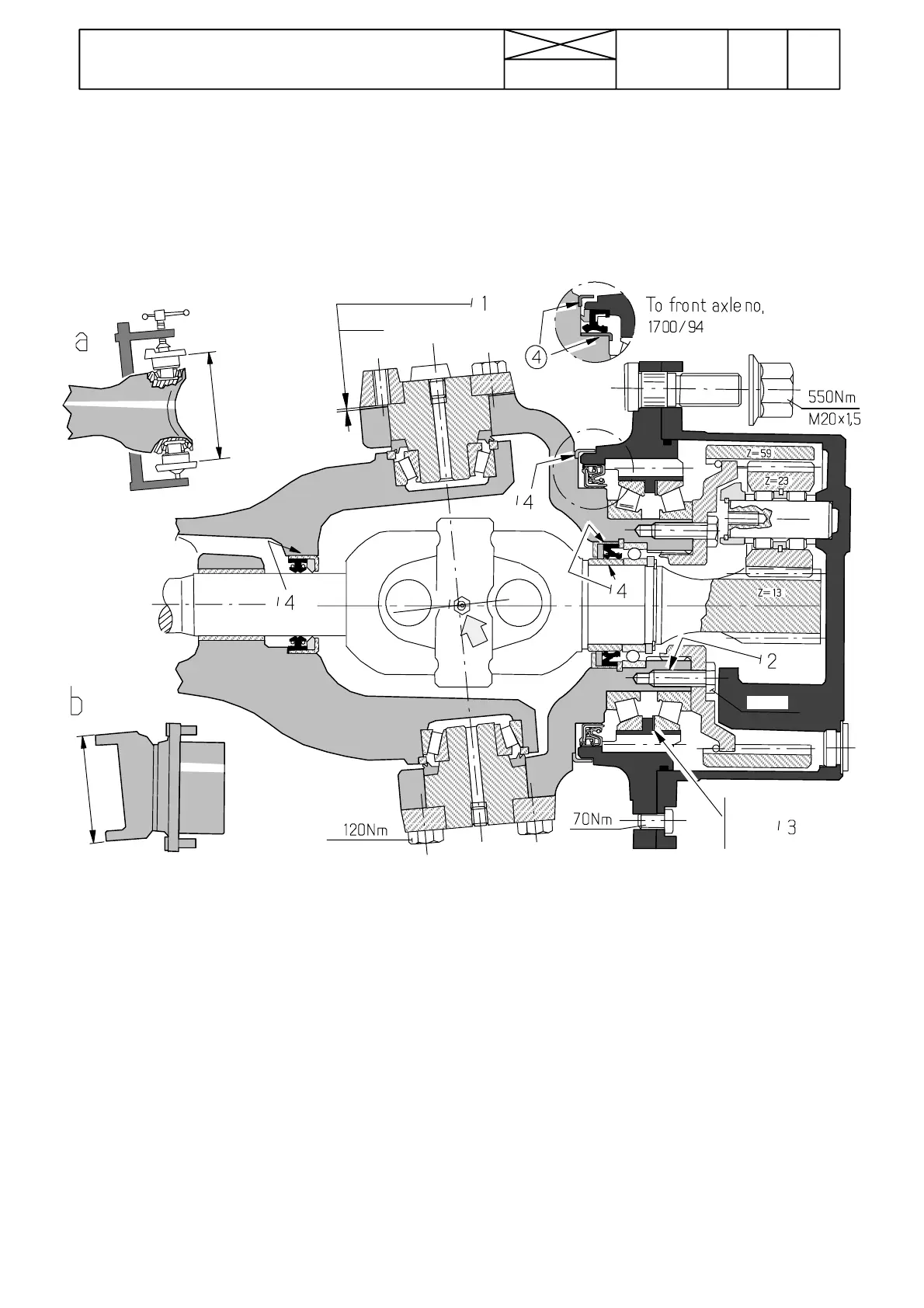

Figure 3. Planetary gear, Sige front axle
1. Shims for adjusting steering knuckle bearing preload
2. Locking fluid Loctite 242 on threads
3. Shims for adjusting wheel bearing preload
4.Sealing compound Loctite 290
a) Adjustment of steering knuckle bearings preload
b) Adjustment of steering knuckle bearings preload
