64. Powered front axle
8. 11. 1990
6000--8750 644 6
6. Fit an equal number of shims under each differential bear-
ing. Fit the differential into the axle housing and connect the
axle sections with several screws (190 Nm).

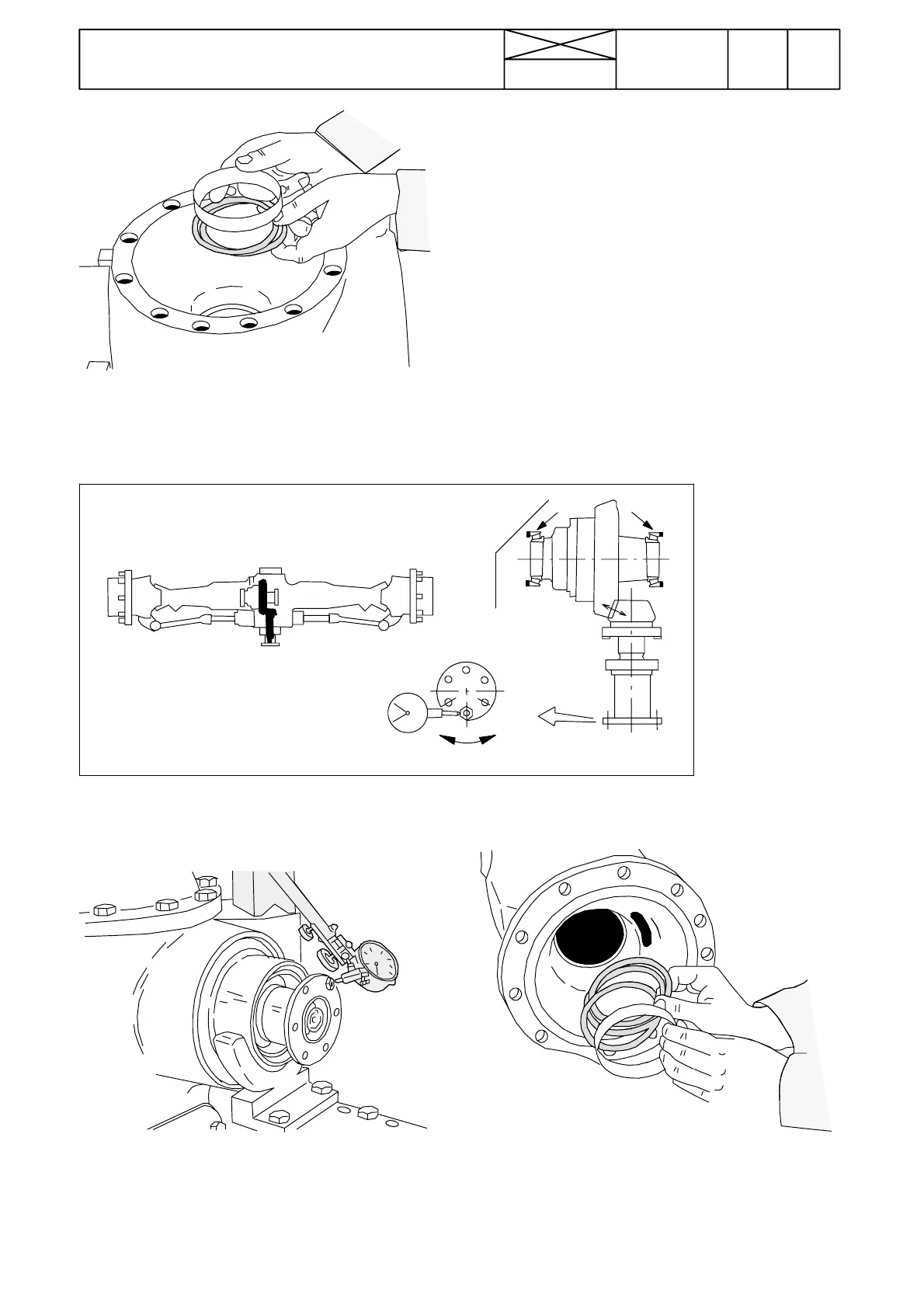

Figure 8. Adjusting tooth backlash between pinion/crown
wheel.
7. Measure the pinion/crown wheel tooth backlash using an
indicatorgauge stylus against a screwon thedrive flange.The
backlash should be in the range 0,20---0,25 mm.
8. If the backlash is not correct transfer shims from one bear-
ing race to the other.
N.B. If the backlash is too small transfer shims from the
shorter axle section side to the longer side and vice versa.
.
0,20...0,25 mm
