818
Model Code Page
46. Power take ---off
6000--8750 460 6
15. 5. 1996
1. 1. 1995

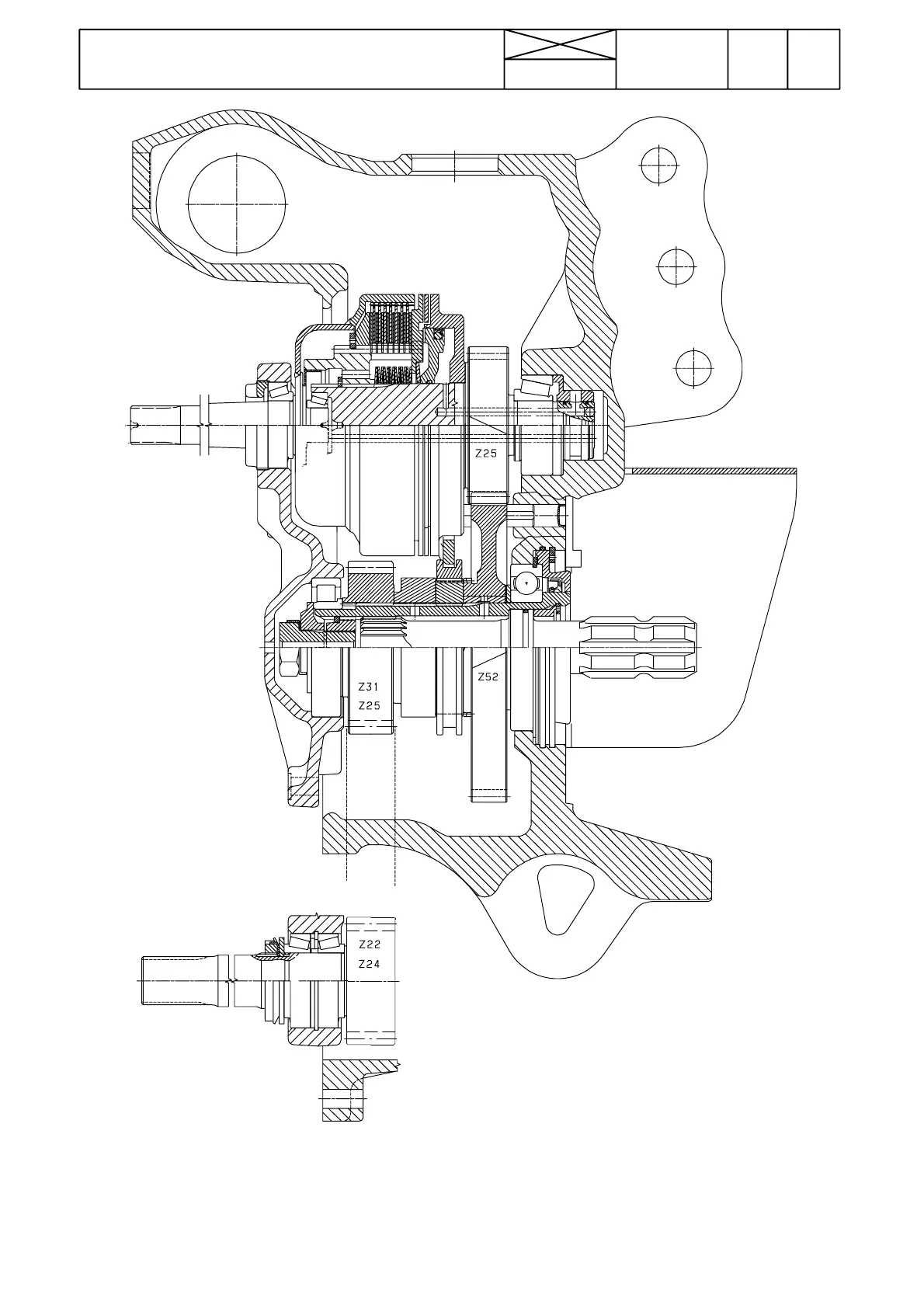

Picture 3. Heavy Duty PTO (6600 ---8400, not 8000)
This PTO unitis optionalequipment which can be used in very
heavy work.
The heavy duty PTO has an engine PTO 1000 r/min and gro-
und speed PTO which is available in two different ratios(V and
F, se e Technical Data).
Note! The hardening depth of the clutch shaft has been inc-
reased. On these shaft E is marked on the rear side of the
shaft. These shafts should always be fitted as a spare part.
Note! This PTO is standard on 8750 tractor. On this tractor
for Σ---power system, there is an impulse wheel on the PTO
clutch outer circumference and a speed sensor, see under
code 313. The drive shaft diameter is then 30 mm.
