204 Heavy Duty Combination Brake Lathe
INSTALLATION (continued)

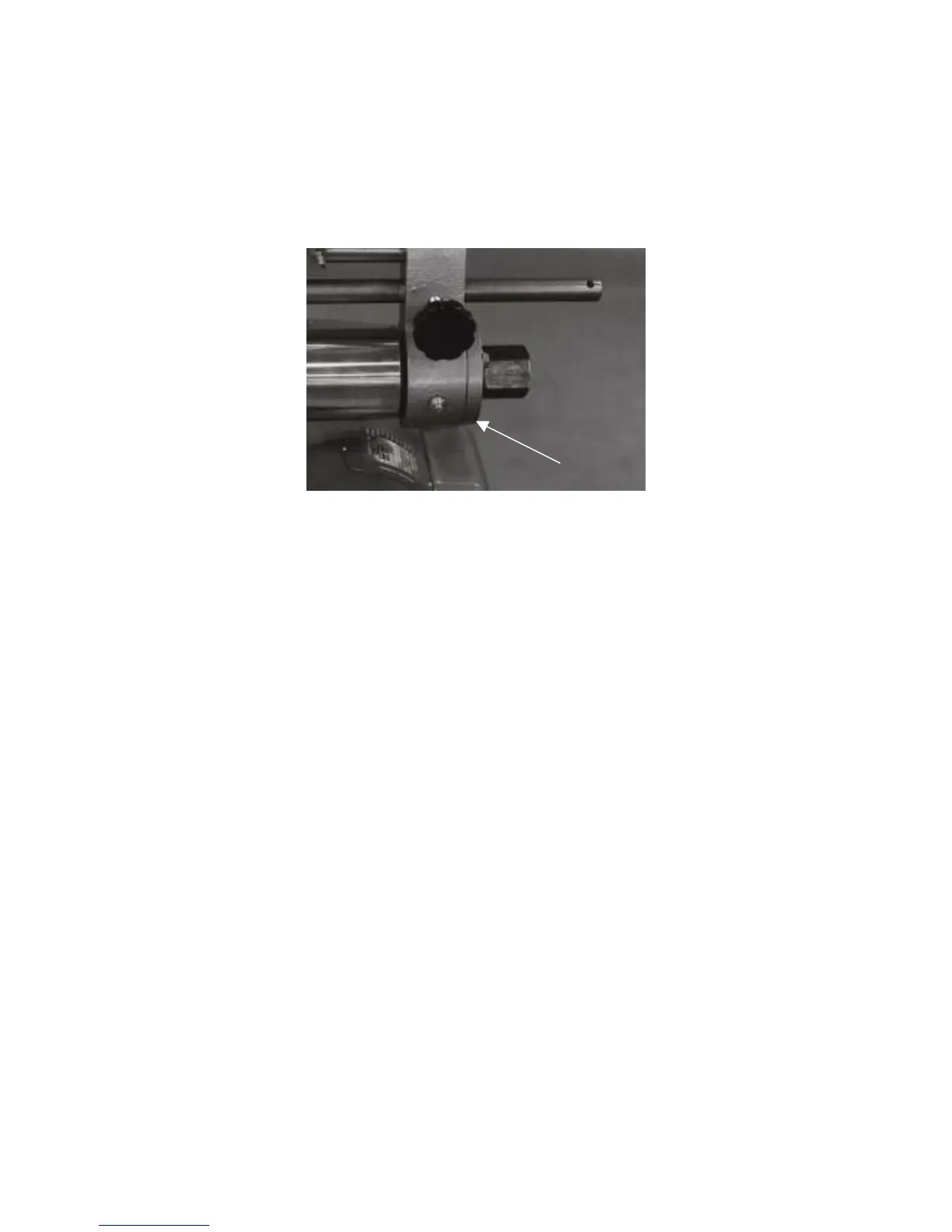

4. Grease Spindle Bearing (Figure 3) once a month using a lithium based grease with
moly. The grease should be an NLGI Grade 1, GC-LB.
Figure 3
Cleaning / Maintenance
1. Do not use an air hose to clean machine. Use a brush to clear chips away. Clean
daily after use.
2. DO NOT use Gasoline to clean machine, use Kerosene or any approved solvent.
3. If machine is not used on a regular basis, wiping with No. 10 S.A.E. oil between uses
is advisable.
1. Spindle Stop
2. Handwheel for Spindle Position
3. Oil Fill (Oil Daily #30)
4. On/Off/Light Switch
5. Oil Fill & Breather
6. Spindle Arbor
7. Tool Bar (for Drum Turning) - 204S
8. Tool Holder Turret
9. Handwheel to position Tool Bit for Drum Turning - 204S
10. Chip Tray
11. Tool Storage Area
12. Speed Control Handle
13. Speed Lock Knob
14. Drain Plug
Van Norman 6. 888-855-1789
