Vanner VTS12-1500 - Page 12

VANNER Incorporated Owner’s Manual
VTS Series 1500Watt 12 True Sine Wave Inverter/AC transfer Switch
Do not place anything betw een
battery cable lug a nd te rm inal surface.
Assem ble exactly as shown.
AW G # 2 - #6

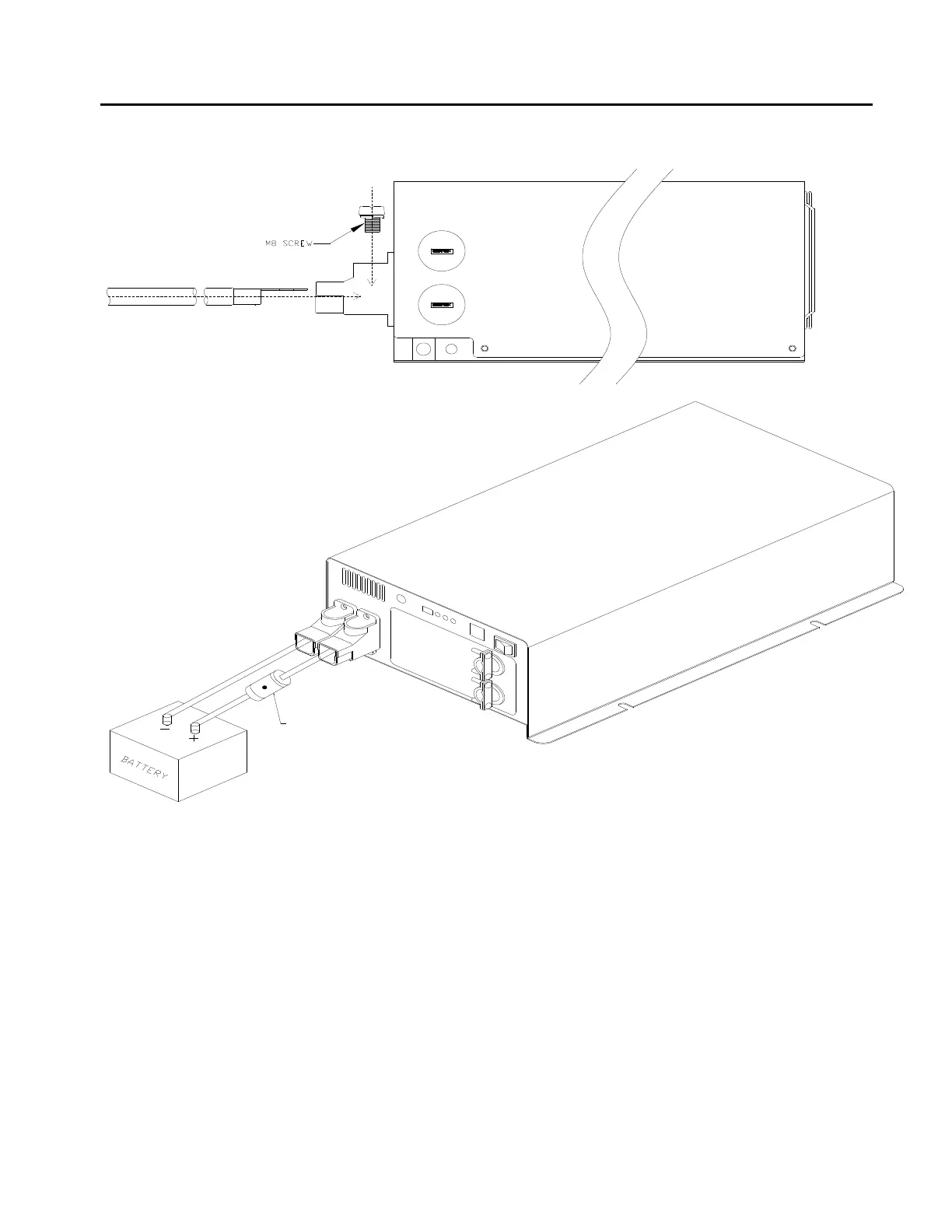

Battery to inverter cable connection
IN L IN E F U S E
P
O
S
(
+
)
N
E
G
(
-
)
