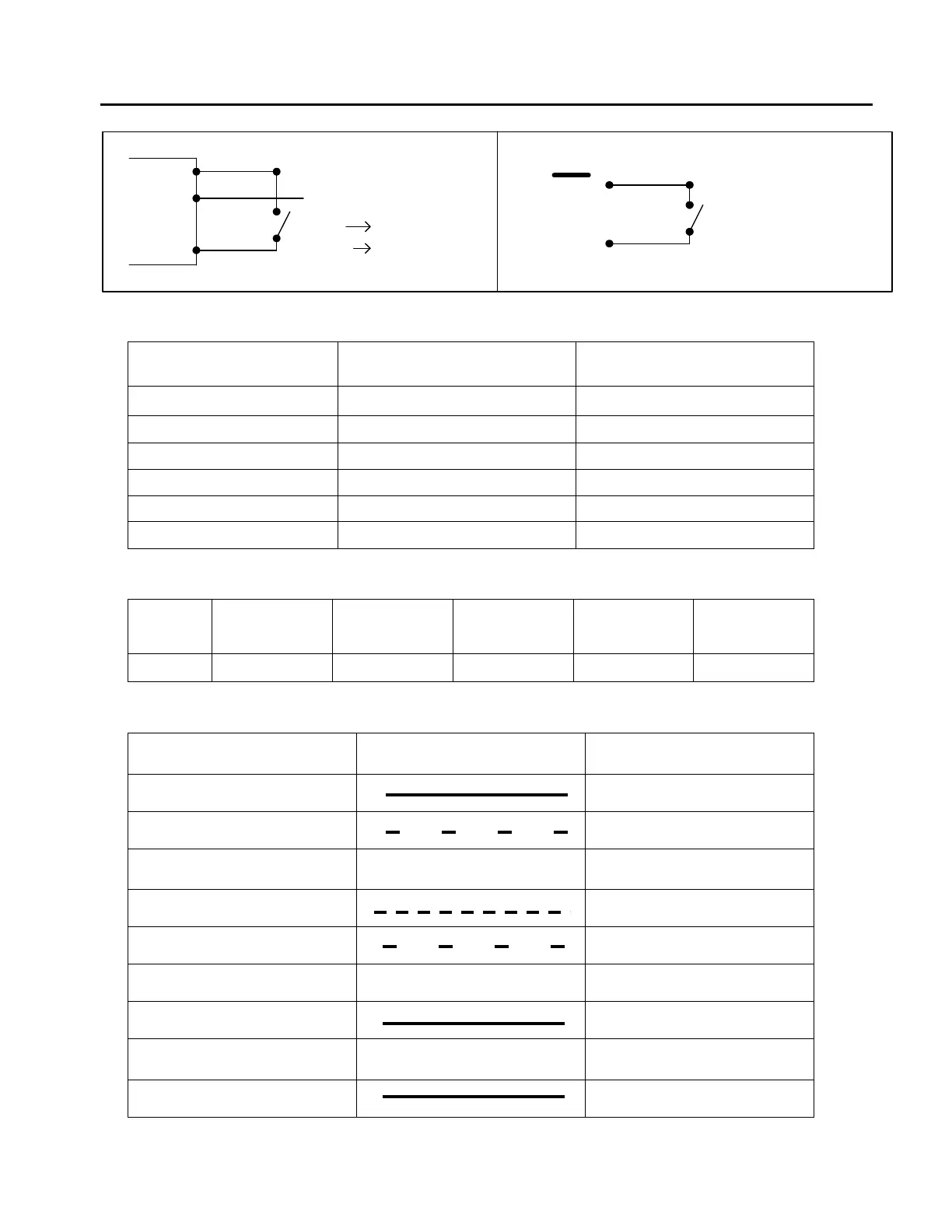

Vanner VTS12-1500 - DC Input Voltage Display; AC Load Display (Watts); Status: Display Power & Fault Status

VANNER Incorporated Owner’s Manual
VTS Series 1500Watt 8 True Sine Wave Inverter/AC transfer Switch
ENB
BATT+
BATT-
ON
OFF
INV - ON
INV - OFF
ON: INV - ON
OFF: INV - OFF
GND
ENB
3-1-6. DC Input Voltage Display
LED Status DC 12V DC 24V
RED Slow Blink 10.3~10.6 20.5~21.2
RED 10.6~11.0 21.2~21.8
ORANGE 11.0~12.1 21.8~24.1
GREEN 12.1~14.2 24.1~28.6
ORANGE Blink 14.2~15.0 28.6~30.0
RED Fast Blink Above 15.0 Above 30.0
3-1-7. AC Load Display (Watts)
Unit
Power
DARK GREEN ORANGE RED RED BLINK
1500W 0 ~ 120W 120 ~ 495W 495 ~ 1125W 1125 ~ 1450W Over 1450W
3-1-8. Status: Display Power & Fault Status
Orange LED LED Signal Status
Solid Power OK
Slow Blink Power Saving
Red LED LED Signal Status
Fast Blink Overvoltage Shutdown
Slow Blink Undervoltage Shutdown
Intermittent Blink 3 3 3 3 3 3 Overtemp Shutdown
Solid Overload Shutdown
Green LED LED Signal Status
Solid AC Input OK
