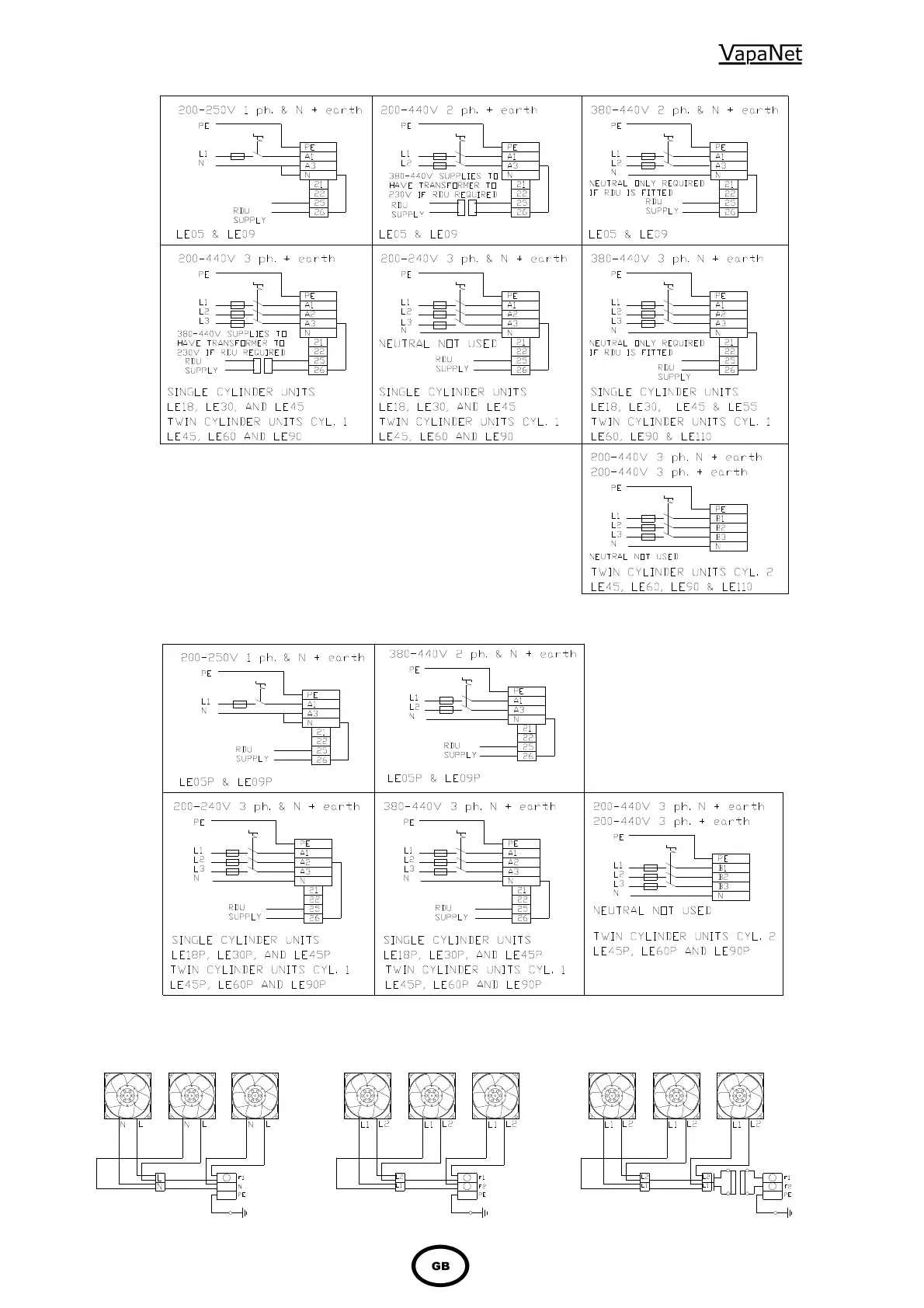

Vapac LE05 - Unit Power Connection Diagrams; LExx Unit Power Connections; LExxP Unit Power Connections

13
TRANSFORMER
PRIMARY
380 – 440 V
SECONDARY
210 – 250 V
200 – 250 V 1Ph. N + earth
200 – 250 V 2Ph. + earth 380 – 440 V 2Ph + earth
Power connection
details for LExx
Units
(Units without Solid
State Relays).
Power connection
Details for LExxP
Units
(Units fitted with
Solid State Relays)
