VARI❋LITE® - VL500™ WASH LUMINAIRE USER’S MANUAL
8 01-March-2006 02.9685.0001 0

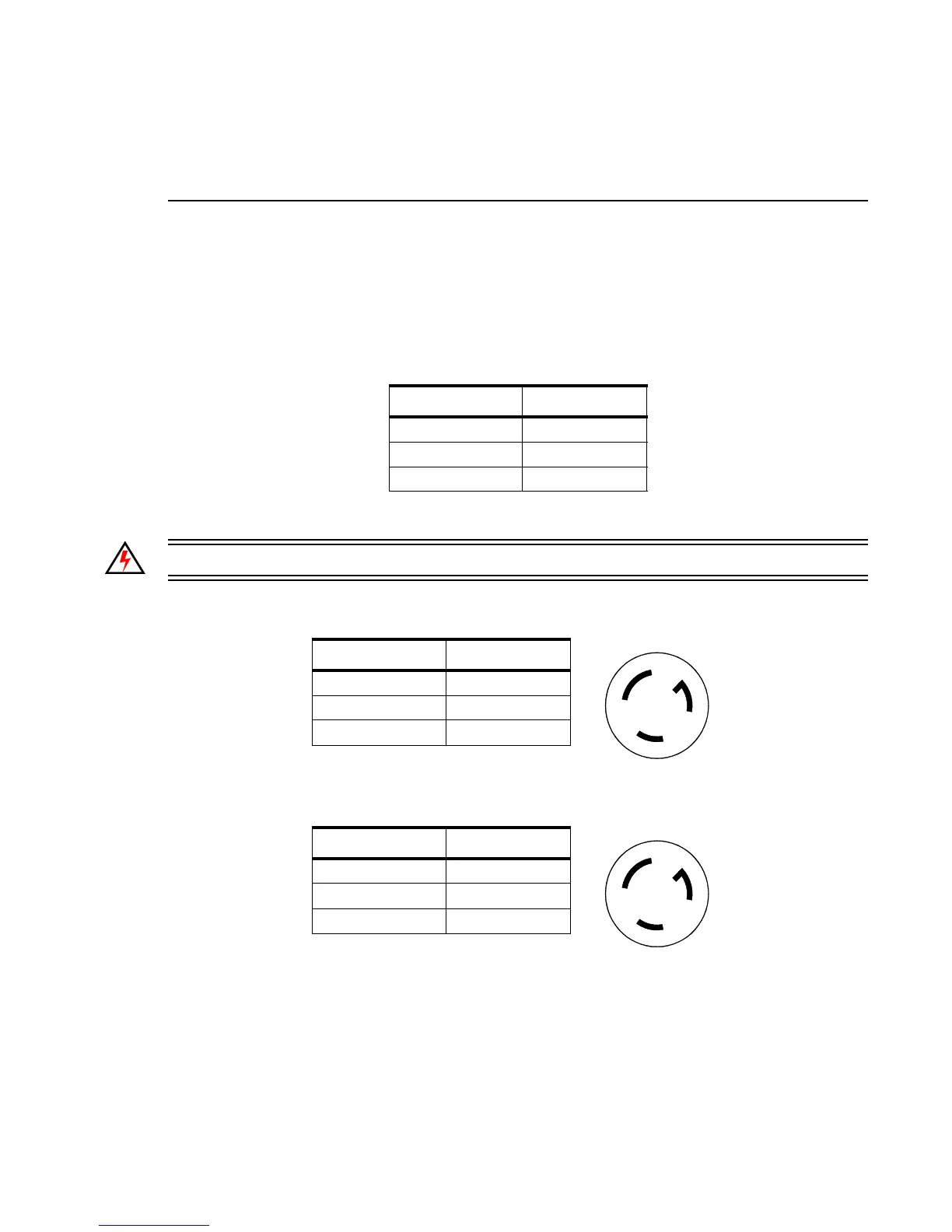

Power and Data Cabling Requirements
Power
The luminaire requires standard AC power distribution from 100-240 VAC, 50/60 Hz. Three amps to
twelve amps will be required depending on the AC supply voltage and product model.
Depending on the application, the luminaire’s AC input cable may require a different connector. If
required, install a new connector meeting your requirements using the following wire color code
reference:
* International (Harmonized) Standard
WARNING: DO NOT connect to three-phase service in countries with 240 volt power.
For single-phase power at 100 to 240 volts RMS:
For three-phase power at 208 volts RMS:
Wire* Connection
Green/Yellow AC Ground
Blue AC Neutral
Brown AC Line
Connection Pin
AC Neutral X
AC Line Y
Ground (Earth) G
Connection Pin
Phase 1 X
Phase 2 Y
Ground (Earth) G
X
Y
G
X
Y
G
