We recommend to follow these instructions when disposing of the machine after its service life termination:
➢ Dismount all machine parts that can still be used.
➢ Empty oil from gearbox and engine into an appropriate tank and hand it in at a collection point
58
.
➢ Dismount plastic and coloured metals.
➢ You are required to carry out the disposal of the dismantled machine remainder and dismounted parts, following national waste laws and
regulations.
2.5.9 Instructions for ordering spare parts
This user manual does not include a list of spare parts. The latest version of our catalogue can be downloaded from our web pages. If you do not have
Internet access, you can order the catalogue in printed form (against COD). In order to identify your machine properly you need to know its Type, Order
Number (CN°) and Identification Number (N°). These are given on the nameplate of your machine in the box, or in the warranty certificate. It is only
possible to find proper spare part designation with this information.

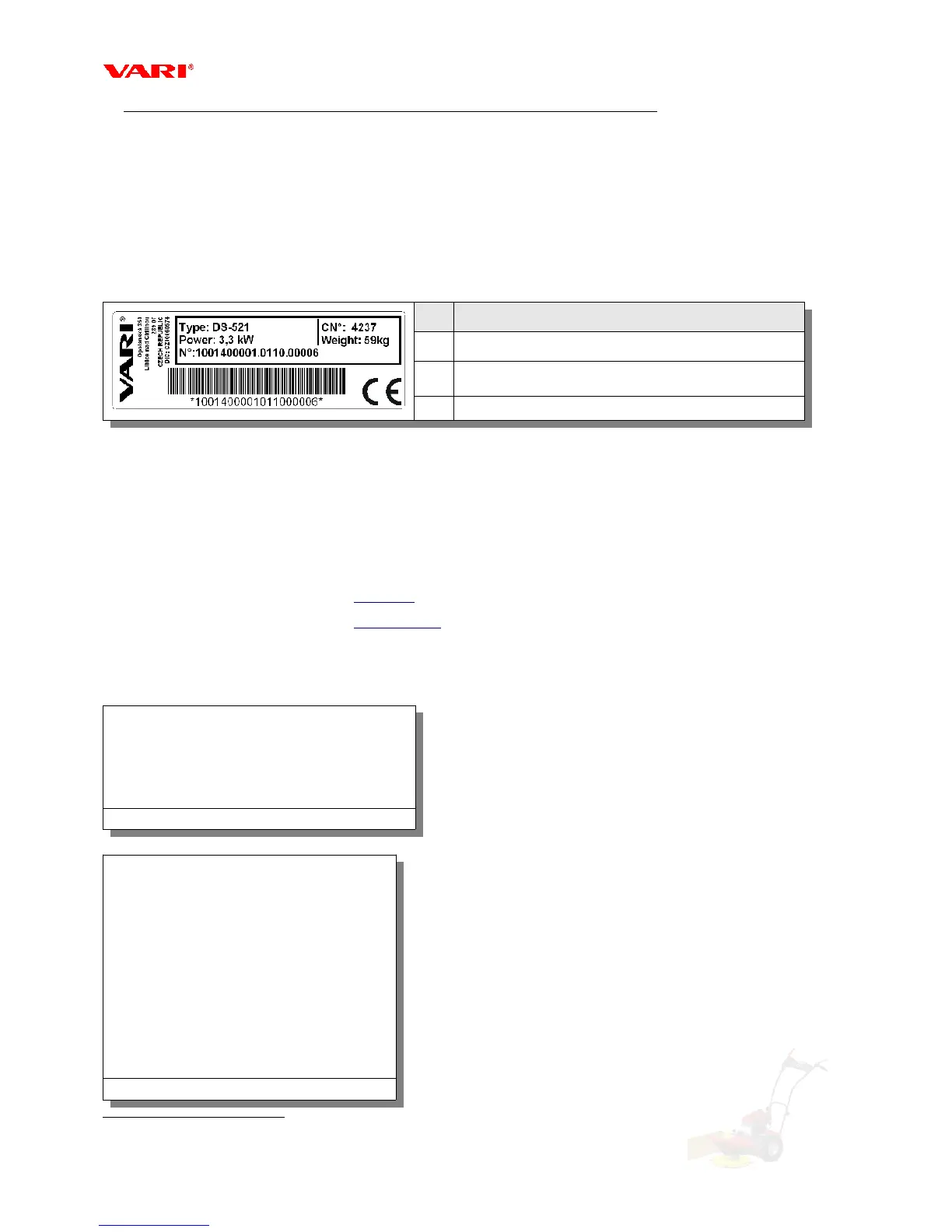

Field Description
Type Machine type designation. (DS-521)
N° Unique manufacturer identification number.
1001400001.0110.00006 (product.month-and-year.consecutive-number)
CN° Business (order) number. (4237)
Tab. 8: Nameplate - example
2.6 Manufacturer address
VARI,a.s. Phone: (+420) 325 607 111
Opolanská 350 Fax: (+420) 325 607 264
Libice nad Cidlinou (+420) 325 637 550
289 07 Czech republic E-mail: vari@vari.cz
Web: http://www.vari.cz
2.7 Picture appendix
The picture appendix is common for all the language versions. You can find it at the end of this manual in the Chapter Pictures.
1) Place for holding at the back (frame U-tube)
2) Screen holder
3) Dismounted disc cover
4) Place for holding the machine at the front(cutting disc)
5) Tilted handlebars in the package (transport position)
6) Bag
7) Side and rear screens
Pict. 1: Unwrapping the machine
1) Disc drive clutch level
2) Wheel drive clutch lever
3) Handlebars fastening bolt
4) Accelerator lever (gas lever)
5) Side screen fastening bolt
6) Side screen
7) Cutting disc
8) Blades (4 pieces)
9) Cover between wheels
10) Disc cover
11) Frame - tube
12) Handle
13) Engine
14) Fuel tank lid
15) Wheel
16) Gearbox cover
Pict.2: Description of the main parts
58 Collection point information is given by responsible local office.
