VARSITY Scoreboards Baseball - Controller Back Ports and Charging

5
DIN
1
DIN
2
12VDC
1200mA
RED
CHARGING
GREEN
CHARGED
SHOT CLOCK USB
DELAY OF
REMOTE
START
STOP
CLOCK

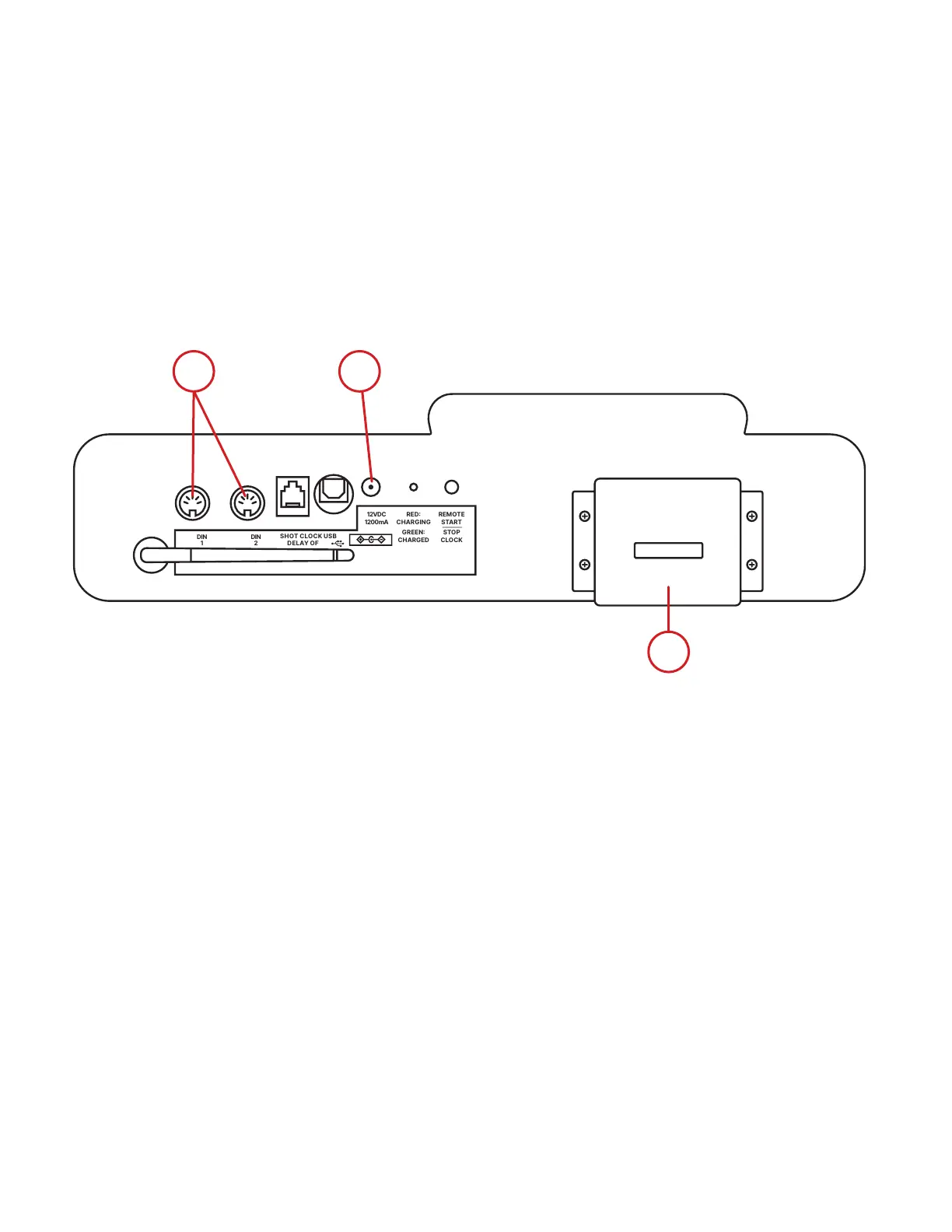

THE BACK
14 15
16
14 / DIN Socket
For DIN cables (only used
for hard-wired setup).
15 / Power Jack
For AC Adapter. Plug into
standard 120V power source.
16 / Card Holder
Holds additional game
insert cards.
Charging the Controller
While the controller is in the ‘Off’ position, connect the AC adapter to the
power jack on the back of the controller and into a standard 120V power
source for charging.
