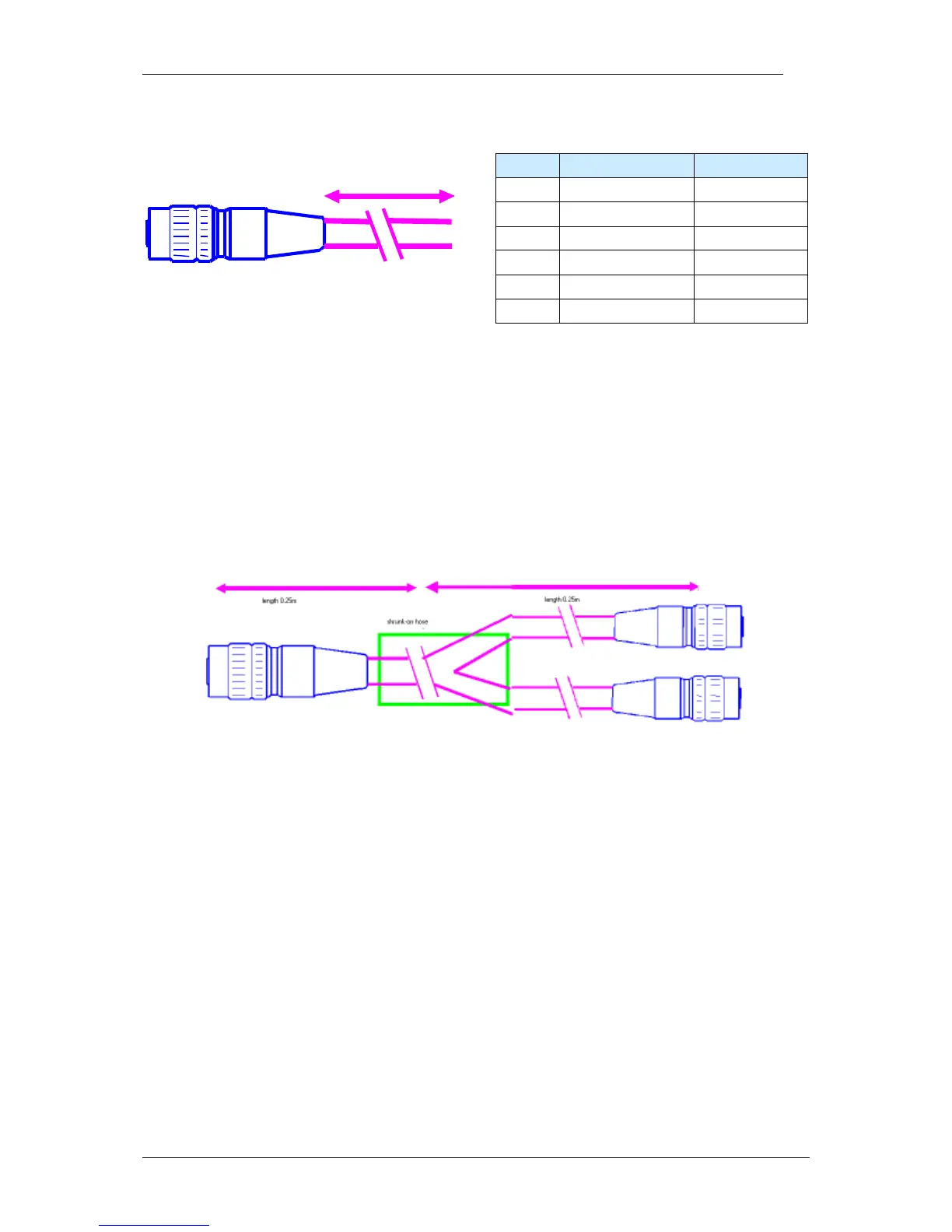

3.2.3 Serial (RS232) Cable
HIROSE 10A-7P-6SC
6-pin. solder plug
Length: 5m
Cable: 0.14mm LiYCY 6 conductors
shielded, outside diameter 5 mm
2
Pin
Signal
Cable Color
1
V24 TxD Out
brown
2
+ 5V (+3.3V*) Out
pink
3
GND
grey
4
V24 RxD In
white
5
Trigger Out
NC
6
Trigger In
NC
Equipped on one end with a Hirose plug, length 5m, 10m or 25m and on the other end with a 9 pin D-
sub connector. This cable can also be ordered without the D-sub connector.
Refer to section 4.2 for a list of available cables with order numbers.
3.2.4 Y-Cable
Connectors:
1x HR10A-7P-6P, male connector
2x HR10A-7J-6S, female socket
Cable length: 0.5m
The color coding of this cable corresponds to the Trigger Cable described above.
All cables are connected through – from the camera output to both extension sockets. Beware of
possible undesired electrical contacts for instance when switching between encoder and serial input
and connecting both at the same time.
Refer to section 4.2 for a list of available cables with order numbers.
