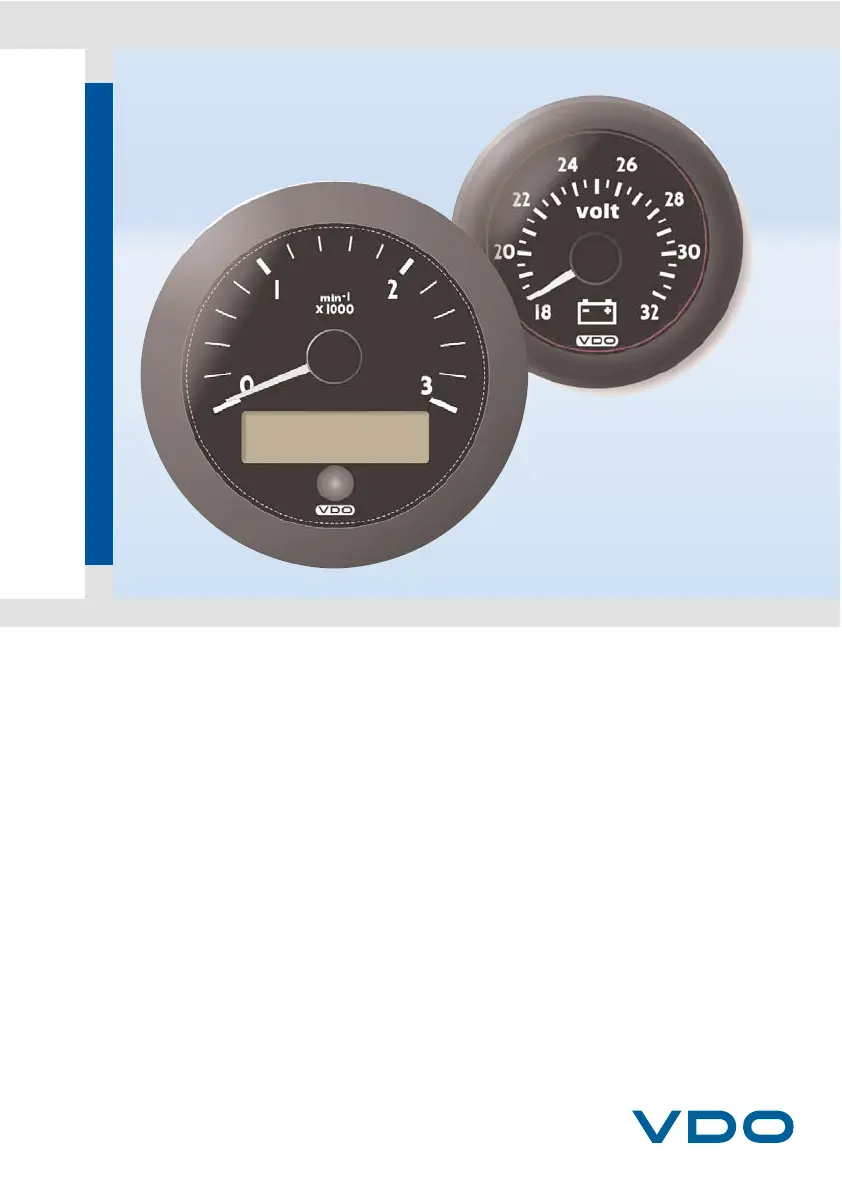

VDO Ocean Link - User Manual

Questions and Answers

A
Ariana RiveraAug 3, 2025
What to do if VDO Measuring Instruments display shows incorrect values?
- J
  jeffreysmithAug 3, 2025
  If the displayed values on your VDO Measuring Instruments are not what you expect, consider the following: * **Incorrect Sensor Configuration:** Verify the parameter settings in the settings menu, as the sensor configuration in Config analog inputs might be incorrect. * **Incorrectly Connected Sensor:** Check the sensor connection, referring to the installation instructions. * **Incorrect NMEA 2000 Network Backbone:** Ensure the connections are correct and that the backbone has termination at both ends.
B
Brandon AllenAug 10, 2025
What to do if VDO Ocean Link Measuring Instruments display shows '--' instead of the expected value?
- A
  alewisAug 10, 2025
  If your VDO Measuring Instruments display shows '--' instead of the expected value, here's what you can do: * **Data Availability:** Wait, as the data might not be available on the network yet. * **Sensor Connection:** Ensure the sensor is properly connected. Refer to the installation instructions for guidance. * **NMEA 2000 Network Backbone:** Check the connections of the NMEA 2000 network backbone. Make sure it is correctly set up with termination at the beginning and end.
S
Samuel MorrisAug 16, 2025
What to do if the pointer of VDO Ocean Link Measuring Instruments does not move and the gauge is not backlit?
- B
  Bailey CollinsAug 16, 2025
  If the pointer on your VDO Measuring Instruments isn't moving and the gauge isn't backlit, it might be because the master is not powered. Check the master connections and connect the power supply.
R
Robert MurphyAug 22, 2025
What to do if the pointer of VDO Ocean Link does not move but the gauge is backlit?
- C
  chad08Aug 22, 2025
  If the gauge is backlit, but the pointer on your VDO Measuring Instruments does not move, check whether the 52 mm gauge is compatible with the master.
K
Kendra SullivanAug 27, 2025
What to do if no 52 mm chain gauge is connected to the master in VDO Measuring Instruments?
- J
  Joseph ChavezAug 28, 2025
  Connect a 52 mm gauge to the master.

Summary

Safety Instructions

Installation Manual Guidelines

Guidelines for using the installation manual.

Notes and Warnings

Explanation of warning and note symbols used in the manual.

Target Group Requirements

Requirements for installers regarding system knowledge.

Ocean Link Tachometer

Components

Accessories

Lists optional accessories for the tachometer.

Functions of the Tachometer

Displays and Setting Possibilites

Basic Settings

Configuration of essential display and operational parameters.

Main Functions

The CAN Interface

Installation of the Tachometer

Installation of the Satellite Gauge

Electrical Installation (pin assignment)

Cable Lengths

Technical Data

VDO Ocean Link Specifications

General

NMEA 2000 Connectivity	Yes
Power Supply	12/24 V DC
Output	NMEA 2000
Operating Temperature	-20°C to +70°C
Input Channels	Multiple
Data Conversion	Analog to NMEA 2000
