21
G
H
P
A

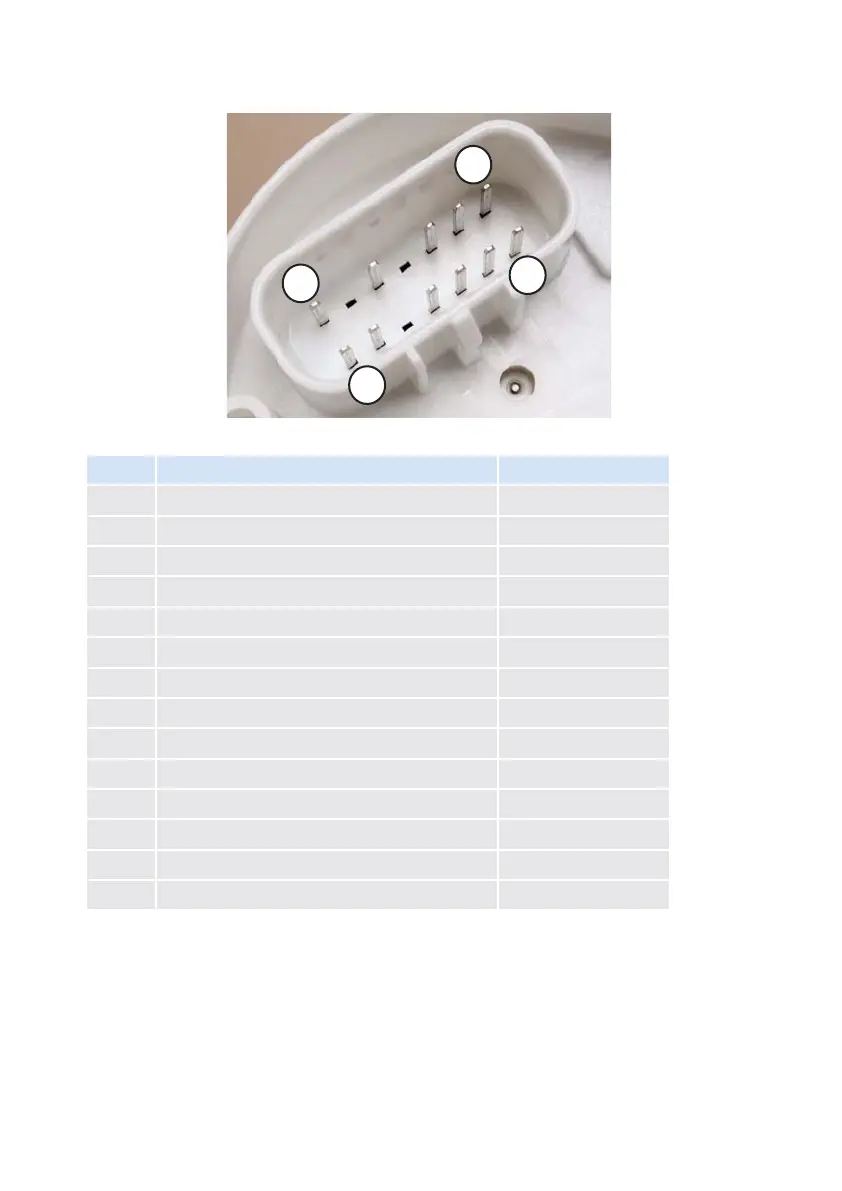

9. Electrical Installation (pin assignment)
10. Cable Lengths
Permissible cable lengths for the Easy Link satellite bus are 20 metres. The total
number of Easy Link satellite gauges displays which are connected to the Easy
Link bus must not exceed 20.
Pin: Assignment: Color
A Satellite Bus Power red/white
B Analogue input 4-20 mA blue/white
C Analogue input 0-200 Ohm grey/white
D Satellite Bus Ground / Signal Ground black/grey
E not connected purple
F Term. 31 (GND) black
G Term. 30 (Battery power) red
H Satellite Bus yellow
J CAN high green
K CAN low blue
L not connected brown
M Term. 58 (illumination) grey
N not connected pink
P Term. 15 (ignition) Data orange/brown
