vds AG-Future - Technical Data; View of Typical Automation and Names of Components

5- Internal photocell
6- Rack
7- Key-switch
8- Remote control
2
5
4
3
1
5
6
7
8

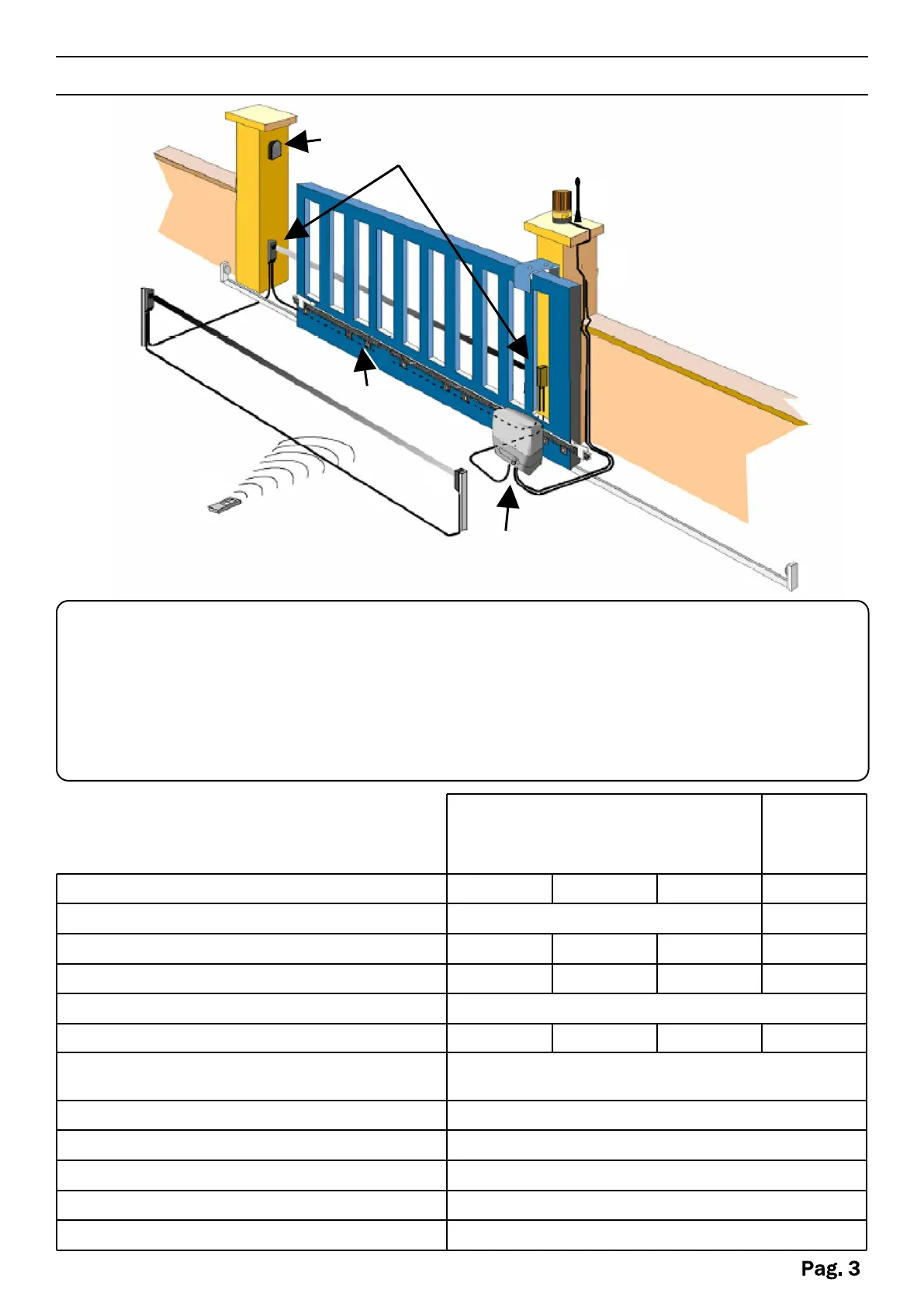

VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS
5
1- Motor with on-board electronics
2- External photocell
3- Flashing warning light
4- Antenna
Optimal installation
TECHNICAL DATA
800K 1000K 1600K
Monophase
1600K
Tree
phase
Max. weight of gate
800Kg 1000Kg 1600 Kg 1600 Kg
Motors power supply
230 Vac 380 Vac
Motor current input 1,5 A 1,7 A 1,8 A 1,5 A
Motor power
280 W 330 W 360 W 500 W
Motor RPM
1400
Condenser
12.5 µF 16 µF 18 µF /
Mechanical unlock for emergency
manoeuvre
With key
Working temperature
-20° C / +55° C
Weight
13 Kg
Protection rating
IP 44
Opening time
10 mt min
Limit switch
Electromechanical
