LVP605 User’s Manual
---------------------------------------------------------------------------------------------------
LED VIDEO PROCESSOR
25
parameters adjusted are the data in the same group.
Figure 5
Item 5：“In_Hori_Width ”
It is used to set the horizontal width of input image from which

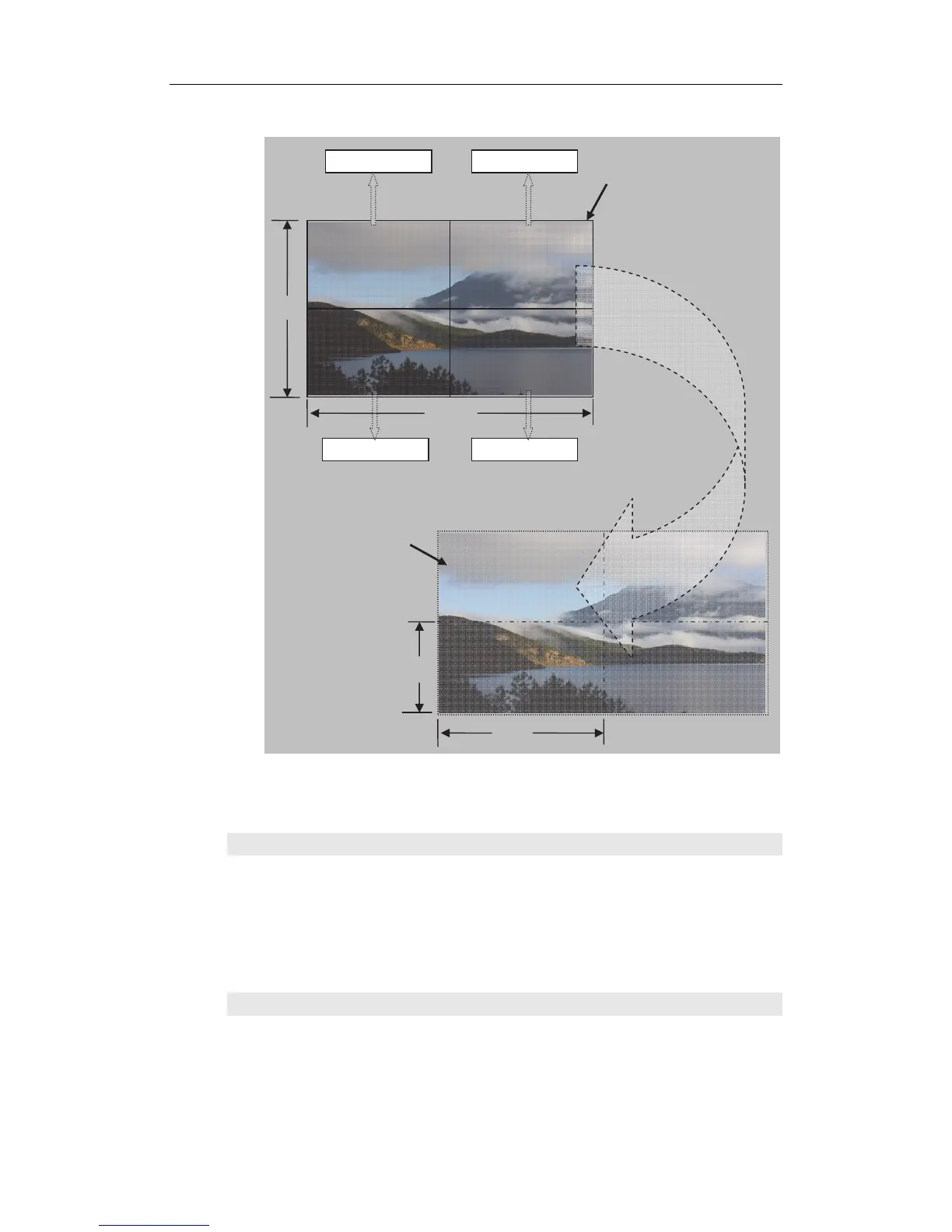

LVP605 will capture.As shown in Figure 5, the width of input image for
the 4 sets of LVP605 should be set as:
In_Hori_Width = 1 / 2
Item 6：“In_ Hori _Start ”
It is used to set the horizontal start point of input image from which
LVP605 will capture. As shown in Figure 5, the the horizontal start point
1080
1920
（0,0）
（960,0）
（0,540） （960,540）
1# LVP605 2# LVP605
3# LVP605 4# LVP605
Input image
1728
960
LED Screen
To Next Page
