MIG SERIES EQUIPMENT MIG SERIES EQUIPMENT

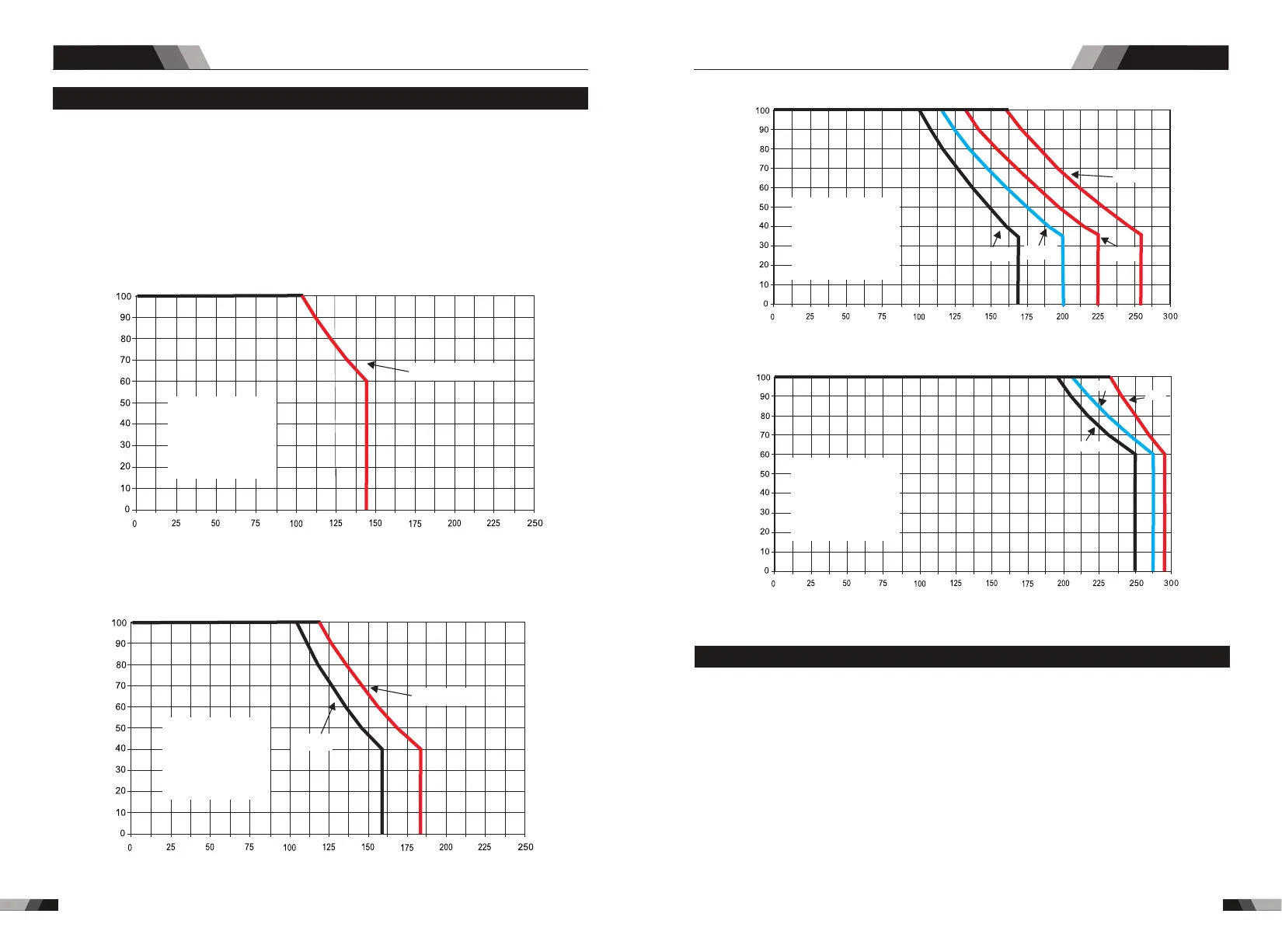

2.4 Duty cycle
The rated duty cycle of a Welding Power Source is a statement of the time it may be operated
at its rated welding current output without exceeding the temperature limits of the insulation
of the component parts. To explain the 10 minute duty cycle period the following example
is used. Suppose a Welding Power Source is designed to operate at a 40% duty cycle,
185 amperes at 23 volts. This means that it has been designed and built to provide the
rated amperage (185A) for 4 minutes, i.e. arc welding time, out of every 10 minute period
(40% of 10 minutes is 4 minutes). During the other 6 minutes of the 10 minute period the
Welding Power Source must idle and be allowed to cool.
Duty Cycle (percentage)
Duty Cycle (percentage)
Duty Cycle (percentage)
Duty Cycle (percentage)
Welding Current (amps)
Welding Current (amps)
Welding Current (amps)
Welding Current (amps)
MIG/TIG
MMA
MIG185
Safe
Operating
Region
2.5 Packaged Items
MIG295
◆3m MB-24AK MIG Gun
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
MIG185/MIG225/ MIG255
◆3m MB-15AK MIG Gun
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
55
56
MIG/WIG/STICK
MIG145
Safe
Operating
Region
MIG255
MIG225
WIG
STICK
MIG225 / MIG255
Safe
Operating
Region
MIG295
MIG
STICK
WIG
Safe
Operating
Region
MIG145
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
