SummarySummary
MIG145 / MIG185 / MIG225 / MIG255 / MIG295 MIG welding machines adopts the latest pulse
width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module,
which can change work frequency to medium frequency so as to replace the traditional hulking
work frequency transformer with the cabinet medium frequency transformer. Thus, its characterized
with portable, small size, light weight, low consumption and etc.
2.1 Brief introduction
◆MCU control system, responds immediately to any changes.
◆High frequency and high voltage for arc igniting to ensure the success ratio of igniting arc.
2.2 Working principle
230V

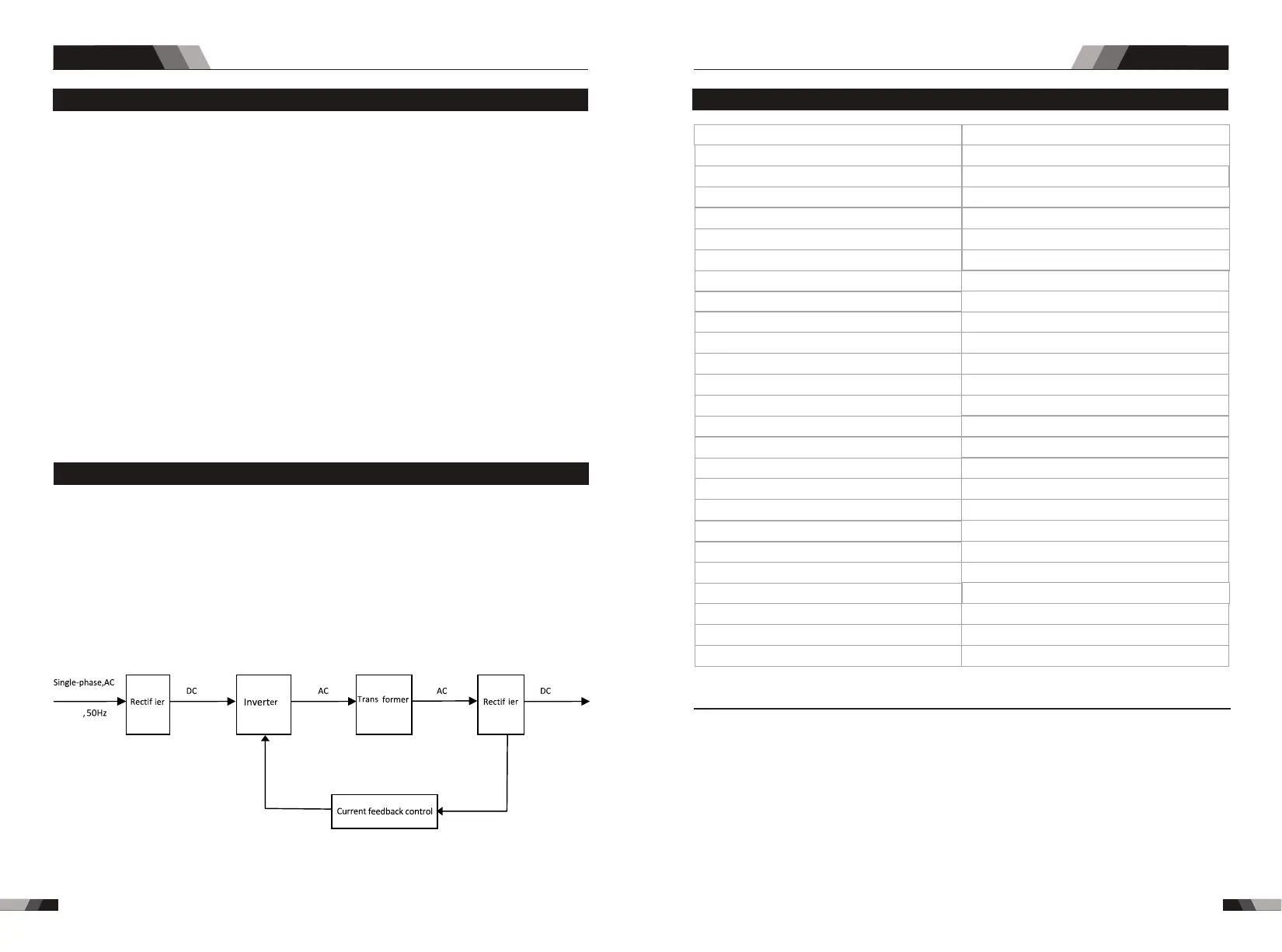

The working principle of MIG145 / MIG185 / MIG225 / MIG255 / MIG295 welding machines is
shown as the following figure. For example single-phase 230V work frequency AC is rectified into
DC(about 312V), then is converted to medium frequency AC (about 20-40KHz) by inverter device
(IGBT module), after reducing voltage by medium transformer (the main transformer) and rectifying
by medium frequency rectifier (fast recovery diodes),then is outputted DC .The circuit adopts current
feedback control technology to insure current output stably. Meanwhile, the welding current
parameter can be adjusted continuously and steplessly to meet the requirements of welding craft.
◆
Intelligent protection: over-current, over-heat, when the mentioned problems occoured,
the alarm lamp on the front panel will be on and the output current will be cut off. It can
self-protect and prolong the using life.
MIG145 / MIG185 / MIG225 / MIG255 / MIG295 machines Characteristics:
2.3 Specifications
Note 1: The Effective Input Current should be used for the determination of cable size & supply
requirements.
Note 2: Generator Requirements at the Maximum Output Duty Cycle.
NOTE
MIG SERIES EQUIPMENT MIG SERIES EQUIPMENT
◆Lift TIG operation, If the tungsten electrode touches the workpiece when welding, the
current will drop to short-circuit current to protect tungsten.
◆Simple select material/wire diameter and the stored know-how controls the welding
process automatically
5.5kg
H290mmxB125mmxT250mm
VECTOR DIGITALF MIG145
Weight
Dimensions
Cooling
Welder Type
European Standards
Number of Phases
Nominal Supply Voltage
Nominal Supply Frequency
Welding Current Range (MIG Mode)
Welding Current Range (MMA Mode)
Welding Current Range (TIG Mode)
Single Phase Generator Requirement
Duty cycle, 40°C, 10 min(MIG)
Duty cycle, 40°C, 10 min(MMA)
Duty cycle, 40°C, 10 min(TIG)
Open Circuit Voltage
Protection Class
Maximum Input Current
Effective Input Current
Fan Cooled
Multi Process Inverter Power Source
EN 60974-1 / IEC 60974-1
1
230V +/- 15%
50/60Hz
1kg
0.6/0.8
80%
0.8
Wire roll weight
Wire roll diameter
Efficiency
Power Factor
Insulation Class
Gas Follow
Note 3: Motor start fuses or thermal circuit breakers are recommended for this application. Check local
requirements for your situation in this regard.
Due to variations that can occur in manufactured products, claimed performance, voltages, ratings, all
capacities, measurements, dimensions and weights quoted are approximate only. Achievable capacities
and ratings in use and operation will depend upon correct installation, use, applications, maintenance
and service.
Description
30-145 A
30-140 A
10-140 A
20.7 A
26.7A
10KVA
145A@ 60%21V 108A@ 100%19.4V
140A@ 60%25.6V 108A@ 100%24.3V
140A@ 60%15.6V 108A@ 100%14.3V
IP23
F
3s
60V DC
