Battery Harness
Clips
Battery Terminal
Rings
DC Accessory Plug
Accessory Outlet
1/2 Amp Battery Charger
Battery
Battery
Cables

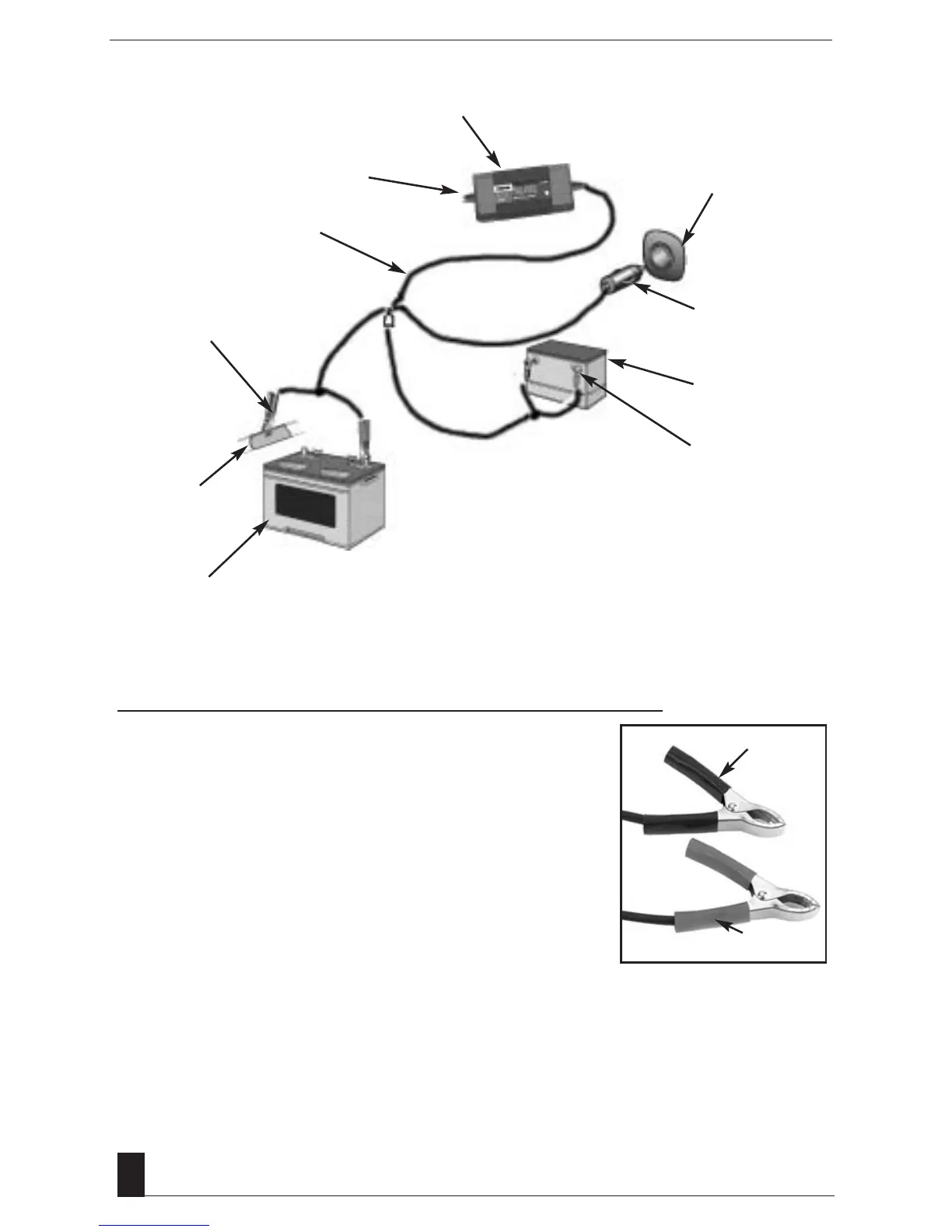

FIGURE 1. 2 Amp Battery Charger Connection Diagram
110/120 Volt AC Plug End
Chassis
5
CONNECTING THE CHARGER WITH THE TERMINAL CLIPS
The charger’s output leads have color-coded battery clips
(Figure 2) (RED-POSITIVE and BLACK-NEGATIVE). These
connect directly to the corresponding connectors on the
battery posts.
1. Position the RED clip on the terminal of the POSITIVE
battery post connector.
2. Position the BLACK clip on the NEGATIVE post
connector.
3. Simply plug the AC plug of the AC/DC
adapter/charger into any standard 110/120 volt
AC wall outlet to begin charging.
4. When charging is complete and the FULL light is on, remove the charger and
store in a safe place.
Black
Red
FIGURE 2. Battery Clips
