NOTE: ALWAYS disconnect the AC power cord from the AC power outlet before con-
necting (or disconnecting) the charger to (or from) the battery.
CONNECTING THE CHARGER WITH TERMINAL RINGS
The charger’s output leads have crimped, color-coded
ring terminals (Figure 4) (RED-POSITIVE and BLACK-
NEGATIVE). These rings connect directly to the corre-
sponding connectors on the battery posts.
1. Remove the nuts from the bolts of the battery post’s
connectors.
2. Position the RED terminal on the bolt of the POSI-
TIVE battery post connector.
3. Position the BLACK terminal on the NEGATIVE post
connector; then replace the nuts. (Figure 3)
4. If there is any problem connecting the output leads, check with a reputable auto
supply store or contact the Customer Service Department toll free (866) 584-
5504 for assistance in finding an appropriate connection device for your par-
ticular application.

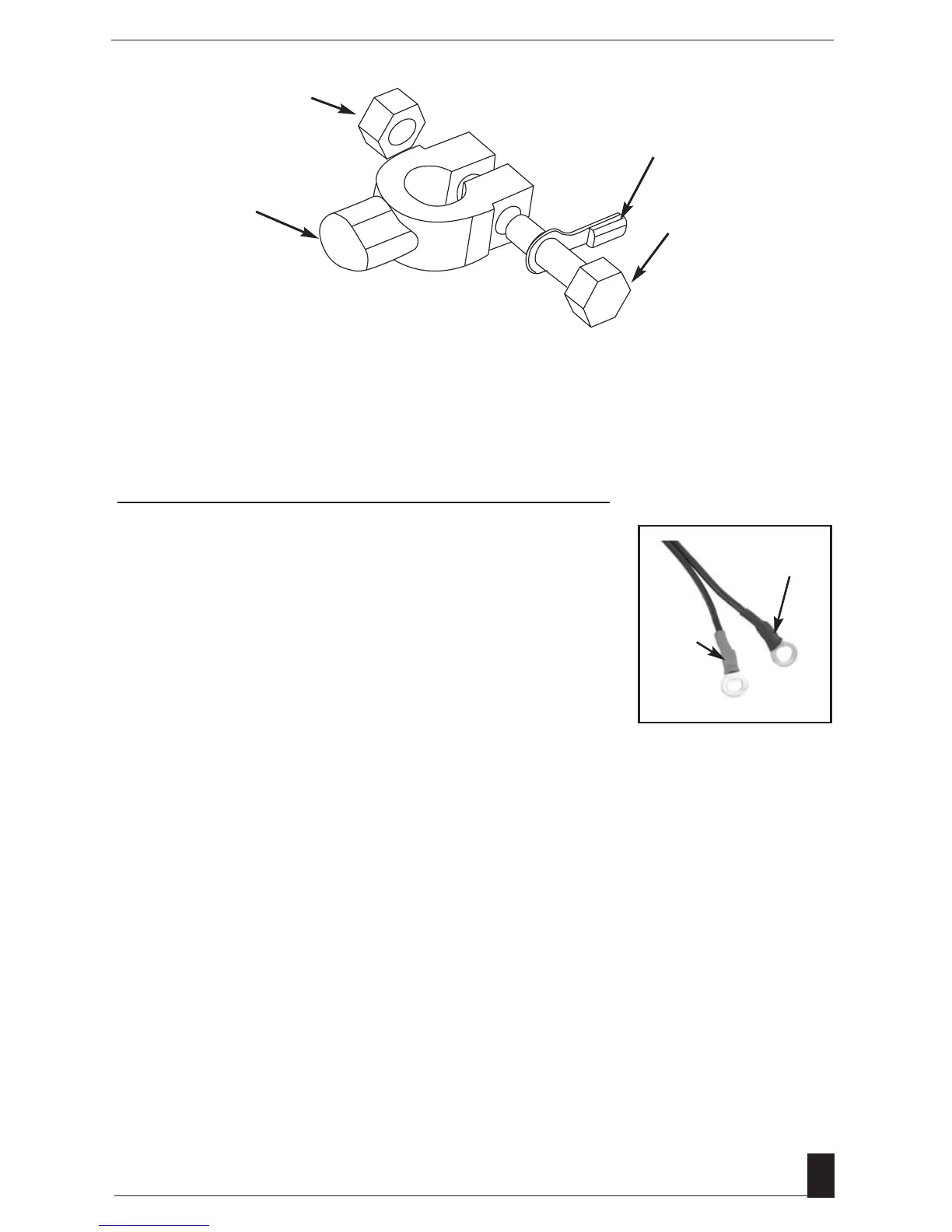

FIGURE 4. Terminal Rings
Red
Black
Connector
Nut
Bolt
Terminal Rings
FIGURE 3. - Ring Terminal Connection Diagram
