A
EC11860; PRODUCTION RELEASE
SAT
08-02-06
B
EC11925; CHANGED HCES TO BOTTOM MOUNT VERSION; REMOVED ASSY NOTES
ADF
10-03-07
B
B
B
B
B
B
B
2
4
12
13
11
8
1
10
3
19
5
15
18
13
17
16
7
9
ANODE LEAD
20
14
6
REF. ONLY
14
14
POWER CONNECTOR NOT
SHOWN FOR CLARITY
ITEM VENDOR VENDOR # DESCRIPTION / MATERIALS QTY
1 VEECO 426666 COOLING PLATE 1
2 VEECO 426667-1 MARK II+ ANODE ASSEMBLY (FLUID COOLED HC SOURCE) 1
3 VEECO 426663-5 MAGNET, .900 DIA. X 2.000 1
4 VEECO 426663-4 BODY 1
5 VEECO 426663-2 BASE 1
6 VEECO 426663-28 ANCHOR PLATE 1
7 VEECO 426663-13 STDF, 1/4-20 M, 10-32 F X 1.957 3
8 VEECO B17490-7 SCREW,SS, 10-32 X .375 SHCS AU PLTD 3
9 VEECO 0201-SS-718 WASH,FLT,.205 I.D. X .440 O.D. X .030 THK,SS 3
10 VEECO 0110-167 2 PIECE SS CLAMP COLLAR, .375 I.D. X .875 O.D. X .343 THK. 3
11 VEECO 426663-20 ANODE POWER CONNECTOR (FEMALE) 1
12 VEECO 426663-19 ANODE STACK INSULATOR STANDOFF 1
13 VEECO 427368 WASH,SS,BELV,.500OD X .255ID X .040H X .018T 2
14 VEECO 425555 SCREW,SS, 1/4-20 X .500 SHCS, AU PLTD 8
15 VEECO 426867 SCREW, SS, 6-32 X .625 FLTHD, SOC.,AU 6
16 VEECO 426663-15 ELECTRICAL STRAIN RELIEF 1
17 VEECO B17490-16 SCREW,SS, 10-32 X .250 SHCS AU PLATED 2
18 VEECO 427624 PLATE, MOUNT, MARK II+, HCES VERSION 1
19 VEECO 426669 PIN,SS,SPRING, .125 O.D. X .500 (MAGNETIC 420 SS) 3
20 VEECO 427805 HCES ASSEMBLY, MARK II+ 1
21 VEECO 427358 LEAD ASSY, MARK II+ POWER, HCES, 18.0 LONG 1
ITEM VENDOR VENDOR # DESCRIPTION / MATERIALS QTY
22 VEECO 426663-22 MASK, BEAD BLAST, ANODE 1
23 VEECO 0201-SS-609 SCREW, SS, 10-32 X ,625 BTN 4
24 VEECO 0201-SS-502 NUT, SS, 2-56 HEX 3
25 VEECO 426869 SCREW, SS, 2-56 X .375 SLTD PAN HD, AU 3
26 VEECO 426663-24 SHT, THERMAL TRANSFER, ANODE 1
27 VEECO 426663-25 SHT, THERMAL TRANSFER, H2O PLATE 1
28 VEECO 426663-27 SHT, THERMAL TRANSFER, GAS DISTRIBUTOR 1
RECOMMENDED TORQUE SPECS. TO AVOID THREAD GALLING AND PART DAMAGE:
1) 1/2-13 SET SCREWS IN POLE PIECE: N/A, PEENED TO POLE PIECE, FLUSH WITH TOP
2) 1/4-20 SCREW IN ANODE STACK INSULATOR: 6 IN/LBS
3) 1/4-20 FEMALE ANODE POWER CONNECTOR IN ANODE STACK INSULATOR: 6 IN/LBS
4) 1/4-20 SCREWS IN MOUNT PLATE TO BASE: 12 IN/LBS
5) 1/4-20 SCREWS IN ANCHOR PLATE TO COOLING PLATE: 12 IN/LBS
6) 1/4-20 CAPTIVE SCREWS IN ANODE ASSY TO ANCHOR PLATE: 12 IN/LBS
7) 1/4-20 STANDOFF IN BASE: 18 IN/LBS
8) 1/4-20 SCREW IN KEEPER LEAD TO HCES BODY: 12 IN/LBS
9) 10-32 SCREWS IN COOLING PLATE TO STANDOFFS: 12 IN/LBS
10) 10-32 SCREWS IN HCES BRACKET TO MOUNT PLATE: 12 IN/LBS
11) 10-32 SCREWS IN STRAIN RELIEF TO BASE: 12 IN/LBS
12) 6-32 SCREWS IN CLAMP COLLAR TO BASE: 8 IN/LBS
13) 4-40 SCREW IN GAS LEAD TO HCES GAS LINE: 6 IN/LBS
427073
B
MARK II+
FLUID COOLED
SOURCE ASSEMBLY
(HCES)
1:1
D
SCALE
TITLE
PART NUMBER
REV
THIRD ANGLE PROJECTION
VEECO INSTRUMENTS
OR DISCLOSED TO OTHERS WITHOUT
EXPRESS AUTHORIZA TION BY
THIS DRAWI NG IS THE PROPERT Y OF
BE USED, REPRODUCED, PUBLISHED
VEECO INSTRUMENTS AND MAY NOT
OF
SHEET
3
1
VEECO INSTRUMENTS
DO NOT SCALE DRAWING
10-12-05
DB
CHANGE
CHK
CHG
DATE
CHECK
DRAWN
DATE
UNLESS OTHERWISE SPECIFIED:
DATE
ENGR
DATE
MFG ENGR
DATE
PROJ MGR DATE
ALL THREADS CLA SS 2
DIMENSIONED IN A CCORDANCE WITH
ASME Y14.5M-1994 STANDARDS
REMOVE ALL BURRS AND SHARP EDGES
SAT
SAT
11-2-05
JCS
.XXXX
.XXX
.XX
.02
.005
.0005
.X
.1
.5
.X
TOL [mm]
.XX
.XXX
.013
.13
TOL in.
ANGLE
±
1 deg.
FAO
32
SURFACE FINISH
UNITS:
INCHES [ mm]

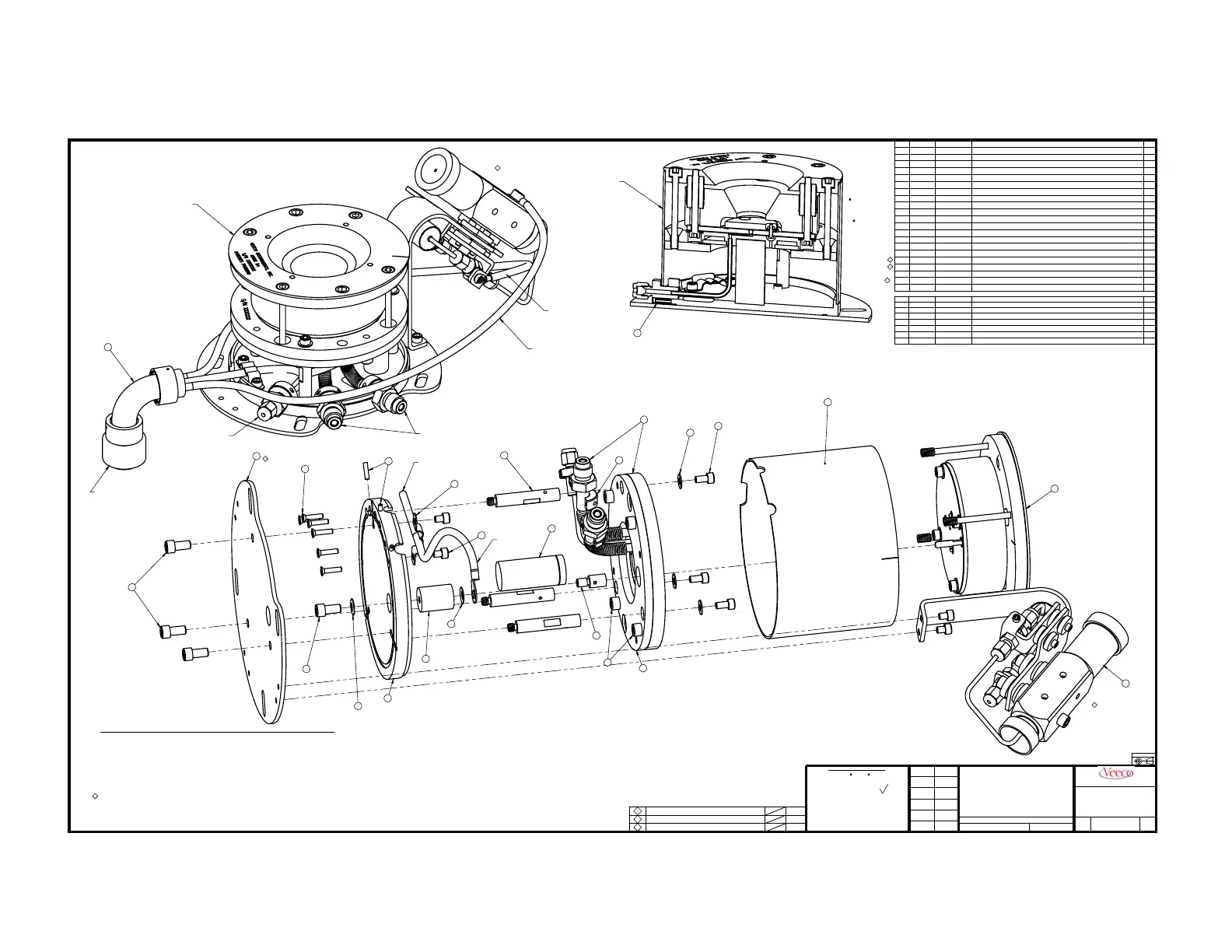

ASSEMBLED ISO SECTION
CUT THRU GAS LINE
19
ITEMS 22-28 ARE SUPPLIED SPARES. NOT SHOWN OR USED IN INITIAL ASSEMBLY.
*
**
*
**
SHOWN AS REFERENCE ONLY. INSTALLED AT NEXT ASSEMBLY.
FOR 36" OPTION USE P/N 427359
ASSEMBLED ISO VIEW WITH
BODY REMOVED FOR CLARITY
WATER SUPPLY
AND RETURN:
.250 VCR
GAS SUPPLY:
.125 SWAGELOK
21
18" OR 36" POWER LEAD ASSEMBLY
SHOWN SHORTENED FOR CLARITY
HCES GAS LEAD
HCES KEEPER LEAD
