Veeder-Root TLS-350 PLUS Installation Manual

Installation Guide Transmitter Installation
18
LEGEND FOR NUMBERED BOXES IN
FIGURE 16
1. See Step 6 below.
2. Clamps - 2 places

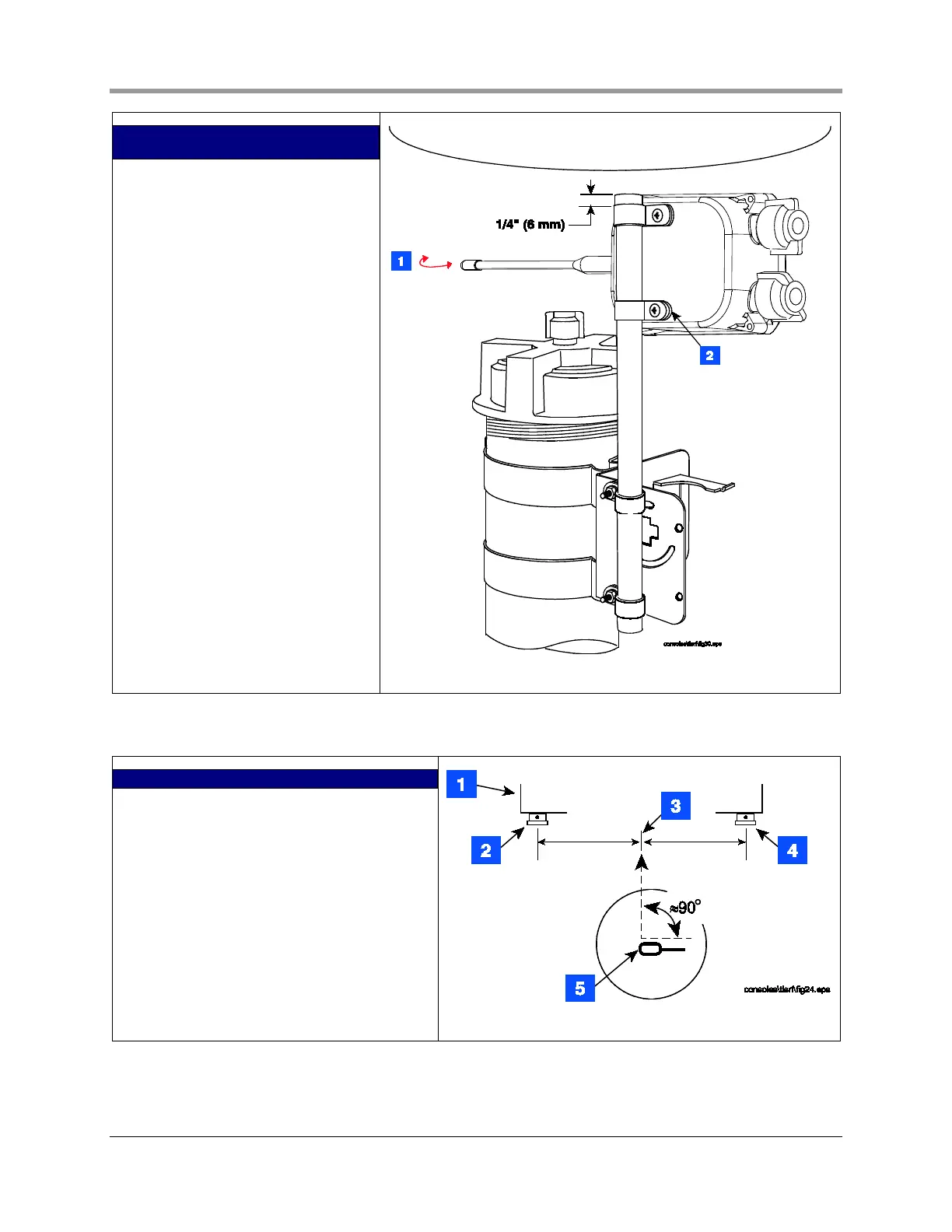

Figure 16. Installing transmitter onto support conduit
6. Rotate the transmitter until its antenna is oriented relative to the repeater/receiver antennas as shown in
Figure 17 and tighten the two clamps on the back of the transmitter.
LEGEND FOR NUMBERED BOXES IN FIGURE 17
1. Building
2. Receiver
3. Approximate midpoint between repeater and
receiver.
4. Repeater
5. Transmitter antenna - orient antenna until it is
perpendicular to a point that is approximately
the midpoint between the repeater and the
receiver.
Figure 17. Orienting transmitter to receiver & repeater

Veeder-Root TLS-350 PLUS Specifications

General

Category	Measuring Instruments
Number of Tanks Supported	Up to 16
Water Detection	Yes
Inventory Management	Yes
Delivery Reporting	Yes
Alarm Management	Yes
Display	LCD
Enclosure	NEMA 4X
Model	TLS-350 PLUS
Manufacturer	Veeder-Root
Temperature Measurement	Yes
Type	Automatic Tank Gauge
Leak Detection	Yes
Communication	RS-232, Ethernet
Product Type	Tank Gauging System
Compliance	UL, ATEX
