Veeder-Root TLS-350R - To Stop In-Tank Leak Testing

POS App Guide DIM Installation Examples
17

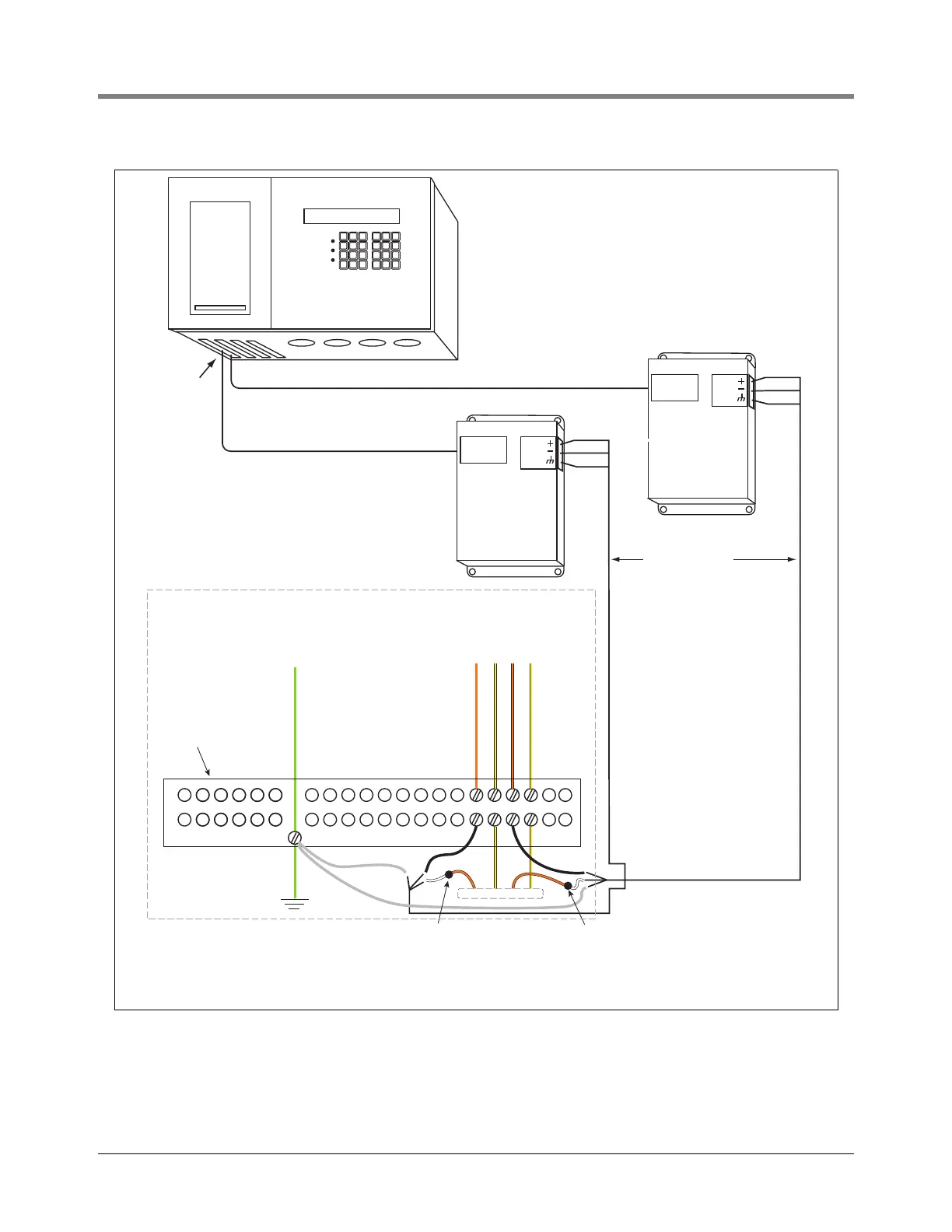

Figure 2. Bennett Pump Fuelomat Dispenser Interface Installation Diagram
ALARM
WARNING
POWER
Communications Cable
Cable Adapter Box
for Bennett System
Shielded 2 Wire
Flying Lead Cable
6 feet
Communications Cable
CDIM
TLS-350R Console
RJ-45
RJ-45
CONSOLE
COMM
PUMP COMM
CONSOLE
COMM
PUMP COMM
White
Black
Shield
Cable Adapter Box
for Bennett System
{ {
0
1
CURRENT LOOPS
BENNETT PUMP
INTERFACE BOX
17123 45 6 78 9111213 14 15 18 19 20 21
Dispenser
Terminal
Block
2216
GRN GROUND
YEL DATA (-)
ORG DATA (+)
YEL DATA (-)
ORG DATA (+)
GRN
CONDUIT
shield
shield
White
Black
Shield
401-7.eps
Disconnect orange wire (+) from terminal 17 and
connect to white wire (+) from CAB with wire nut.
Attach black wire (-) from CAB to terminal 17. Connect
cable shield to terminal block ground connection.
Disconnect orange wire (+) from terminal 19 and connect to
white wire (+) from CAB with wire nut. Attach black wire (-)
from CAB to terminal 17. Connect cable shield to terminal
block ground connection.
