POS App Guide DIM Installation Examples

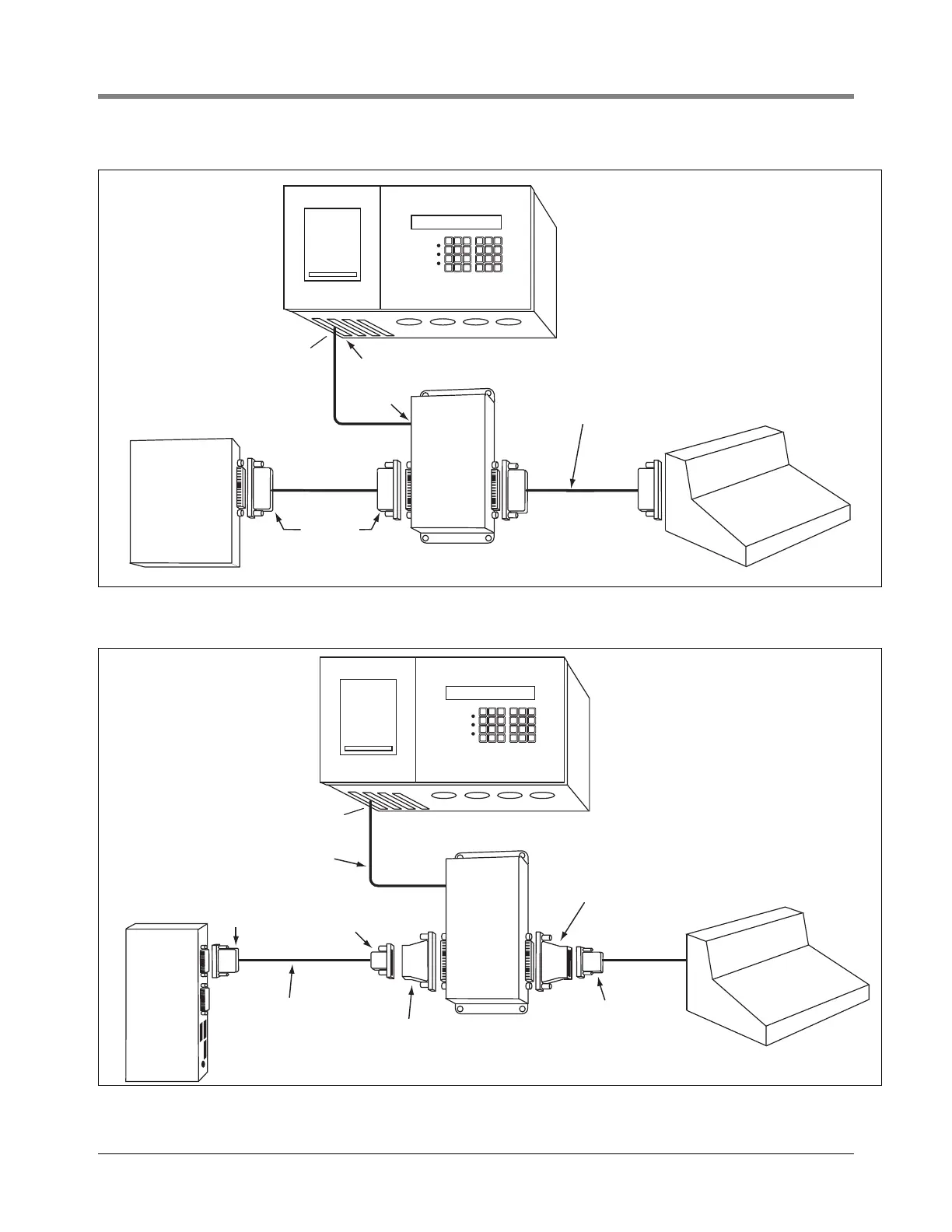

Figure 21. MicroMax POS with Tokheim DCHC Controller Box and RS-232 CAB Interface

Figure 22. Verifone With SAM And RS-232 CAB Interface

ALARM

WARNING

POWER

Communications

Cable

401-25.eps

25 Pin Serial M/F

Communications Cable

Schlumberger MicroMax

Cable

Adapter

Box

RJ-45

POS

CONTROLLER

25 Pin "D"

Tokheim DHC

Port 2

Port 5

POS

Connects to

CDIM

TLS-350R Console

ALARM

WARNING

POWER

401-26.eps

Cable

Adapter

Box

POS

CONTROLLER

SAM

Port 1

Port 2

25 pin female to 9 pin

female "D" connector

9 pin male to 25 pin

male "D" connector

9 pin "D" male

connector

9 pin "D" female

connector

6 foot cable

9 pin "D" male

connector

Communications cable w/ RJ-45

connectors at each end

Connects to

CDIM

TLS-350R Console

Table of Contents3
Business Inventory Reconciliation (BIR)6
- In-Station Diagnostics (ISD) - TLS-350R Consoles Only6
TLS-350R BIR and ISD Capabilities6
- TLS-350R with BIR Only and TLS-350R with BIR and ISD6
- TLS-350R with ISD Only6
- Manifolded Tank Applications for BIR6
TLS-350R System Requirements for BIR and ISD7
- Business Inventory Reconciliation7
- In-Station Diagnostics7
TLS-450/TLS-450PLUS BIR Capabilities7
- Manifolded Tank Applications8
- TLS-450/TLS-450PLUS System Requirements for BIR8
Supported POS Systems8
- Other Applications9
DIM Descriptions10
Mechanical Dispenser Interface Module (MDIM) & Low Voltage Dispenser Interface Module (LVDIM)10
Electronic Dispenser Interface Module (EDIM)10
Current Loop Dispenser Interface Module (CDIM)10
LAN Dispenser Interface Module (LDIM) - TLS-350R Only10
International Forecourt Standards Forum Dispenser Interface Module (IFSF) - TLS-350R, TLS-450PLUS11
TCP/IP DIM Module (TDIM) - TLS-350R11
Tcp/Ip DIM (Tdim) - Tls-450/Tls-450Plus11
DIM and Installation Kit Ordering Guide12
Figure 1. Simplified DIM Connections to Various Dispensing Systems20
Bennett POS System21
- Veeder-Root Software Requirements21
- Veeder-Root Hardware Requirements (Ref. Table 2)21
- Bennett System Limitations21
- Installation Notes21
- Figure 2. Bennett Pump Fuelomat Dispenser Interface Installation Diagram22
Gilbarco TCRG, TCRG2, T-11, and T-12 POS Systems23
- TLS Console Software Requirements23
- Veeder-Root Hardware Requirements (Ref. Table 2)23
- Specific Limitations23
- Wiring Diagram for a Transac Current Loop Interface24
- Figure 3. Transac Series Current Loop Interface24
- Wiring Diagram for an Excentus Current Loop Interface25
- Figure 4. Excentus Current Loop Interface25
Gilbarco TS-1000 POS and PAM Systems26
- TLS Console Software Requirements26
- Veeder-Root Hardware Requirements (Ref. Table 2)26
- Gilbarco POS and Dispensing System Requirements26
- Specific Limitations26
- Wiring to a Universal Distribution Box Interface26
- Figure 5. Universal Distribution Box Interface27
Gilbarco G-Site™ POS Systems28
- TLS Console Software Requirements28
- Veeder-Root Hardware Requirements (Ref. Table 2)28
- Specific Limitations28
- Wiring Diagram28
- Figure 6. Example G-Site Installations29
Autogas Storemaster and Gilbarco Dispenser Systems30
- TLS Console Software Requirements30
- Veeder-Root Hardware Requirements (Ref. Table 2)30
- Gilbarco POS and Dispensing System Requirements30
- System Limitations30
- Installation Notes30
- Figure 7. Autogas 510 CRIND Controller with Current Loop Interface31
- Figure 8. Autogas 510 CRIND Controller with Serial Interface32
- Figure 9. Autogas 510 CRIND Controller33
Gilbarco Smartcrind Dispenser Systems35
- TLS Console Software Requirements35
- Veeder-Root Hardware Requirements (Ref. Table 2)35
- System Limitations35
- Installation Notes35
Tokheim Dispensing Systems36
- TLS Console Software Requirements36
- Veeder-Root Hardware Requirements36
- Tokheim DHC Requirements36
- Specific Limitations36
- Other POS Consoles36
- Installation Notes36
Wayne Dispensing Systems39
- TLS Console Software Requirements39
- Veeder-Root Hardware Requirements39
- POS System Requirements and Limitations39
- Supported Wayne Systems39
- Supported Wayne POS Terminals39
- Installation Notes40
Schlumberger POS Systems42
- TLS Console Software Requirements42
- Veeder-Root Hardware Requirements (Ref. Table 2)42
- System Limitations42
- Micromax/Allied Hardware Requirements42
- Installation Notes42
Gasboy CFN Systems45
- TLS Console Software Requirements45
- Veeder-Root Hardware Requirements (Ref. Table 2)45
- Gasboy System Requirements for BIR Interface45
- Connecting to the Site Controller II45
BIR Protocol DIM47
- POS System Requirements and Limitations47
Mechanical Dispensers48
- TLS-350 MDIM Applications48
- TLS-450/TLS-450PLUS MDIM Applications48
LVDIM Applications53
- Petrovend System 2 Controller53
- Kraus Micon 200 Electronic Dispensers55
- Wiring to Gasboy 9800 or Tokheim 2600 Series Electronic Dispensers57
